Buick
>>
1987
>>
Century L4-151 2.5L VIN R TBI
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Circuit Breaker
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

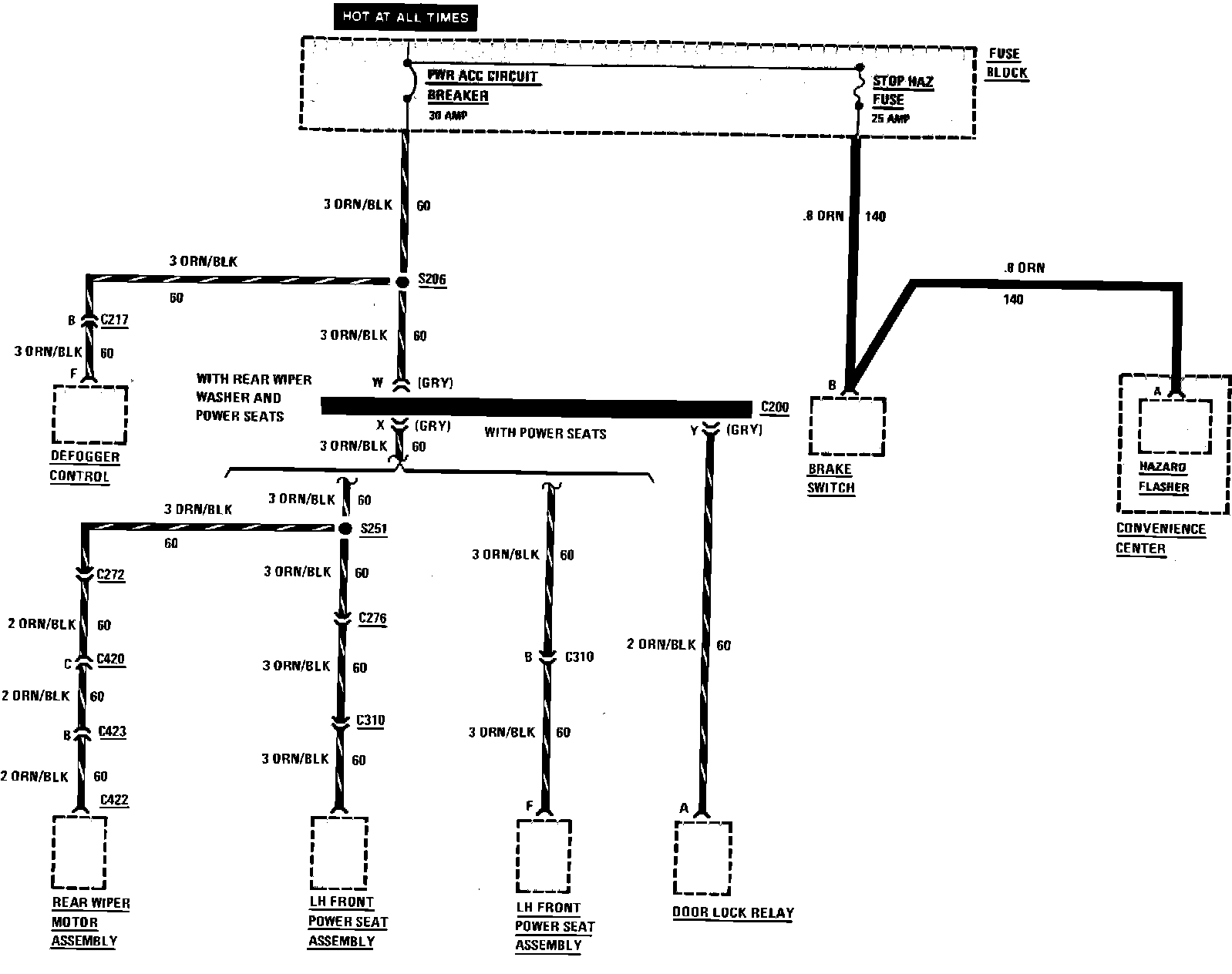

Fuse Block Details (Power Accessory Circuit Breaker & Stop/Turn Lamp Fuse):
