Vehicle Speed Sensor (VSS)
>>
Without Digital Cluster
Without Digital Cluster

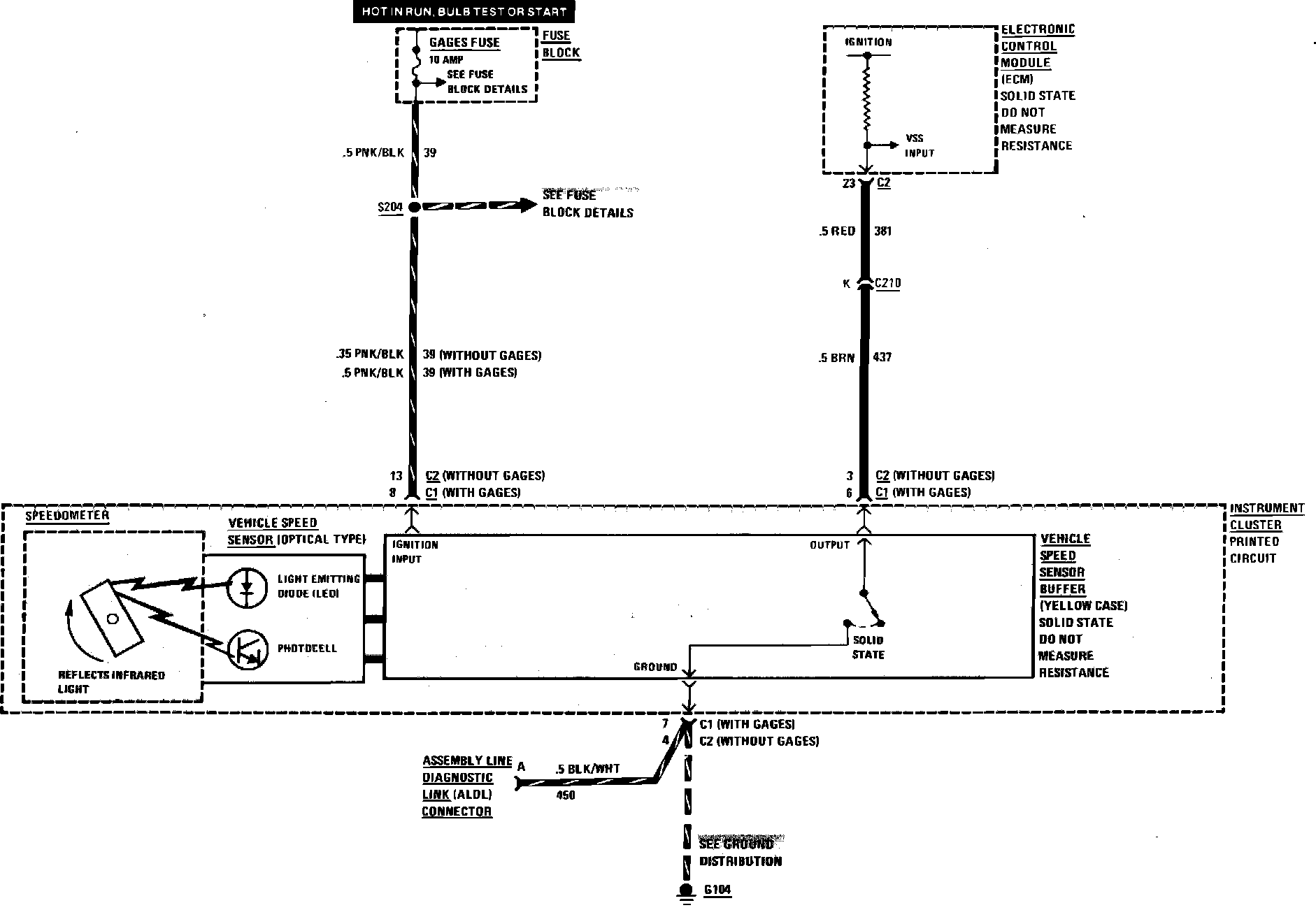

Vehicle Speed Sensor (Less Digital Cluster):
