Buick
>>
1987
>>
Century L4-151 2.5L VIN R TBI
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Backup Lamp
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

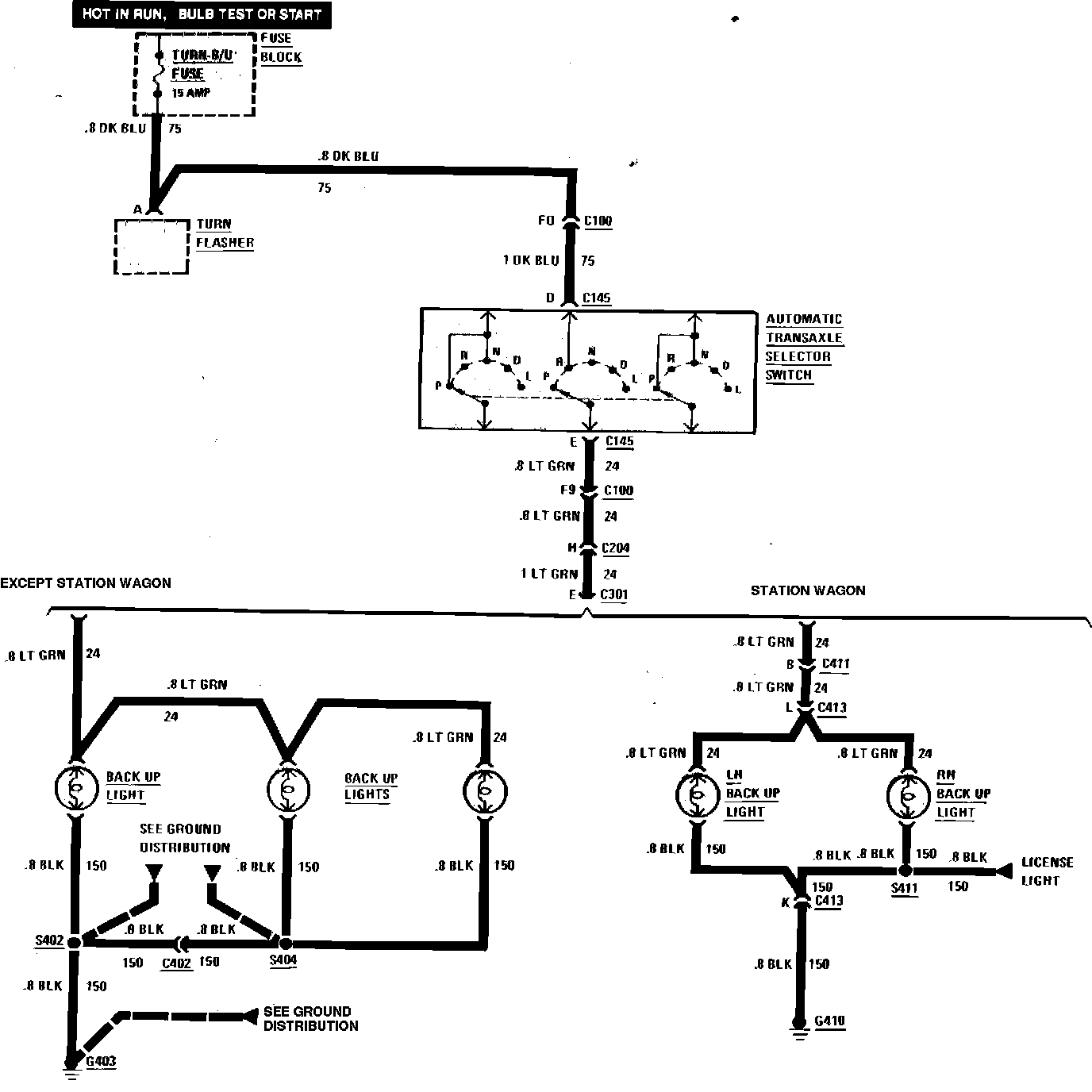

Exterior Lamp Wiring Circuit (Back-Up Lamps):
