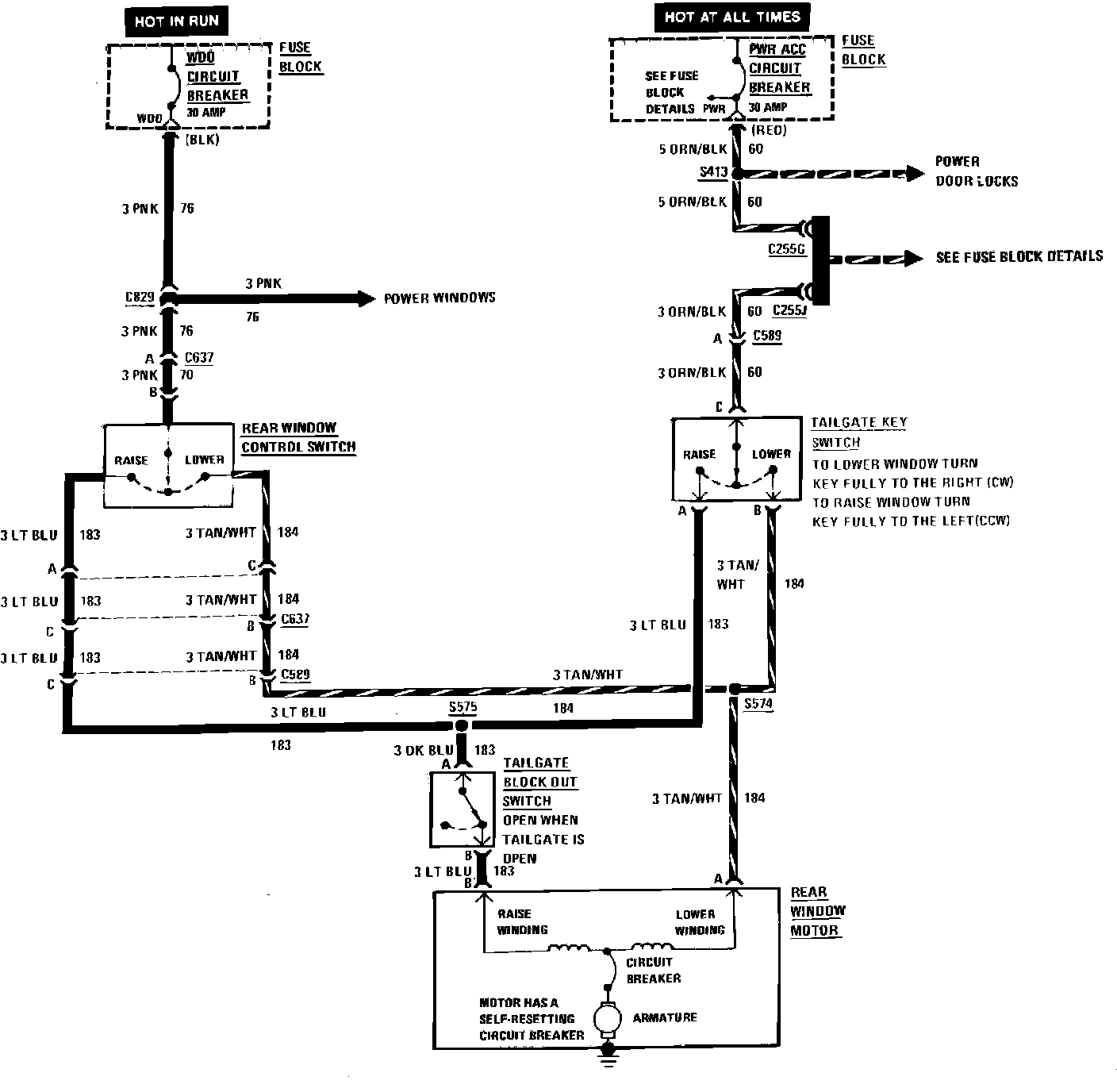

Power Tailgate Window Wiring Circuit
Power Tailgate Window Wiring Circuit
Power Tailgate Window Wiring Circuit:
