Home
>>
Buick
>>
1987
>>
Century L4-151 2.5L VIN R TBI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Fuse
>>
Instrument Lamp Fuse
Instrument Lamp Fuse

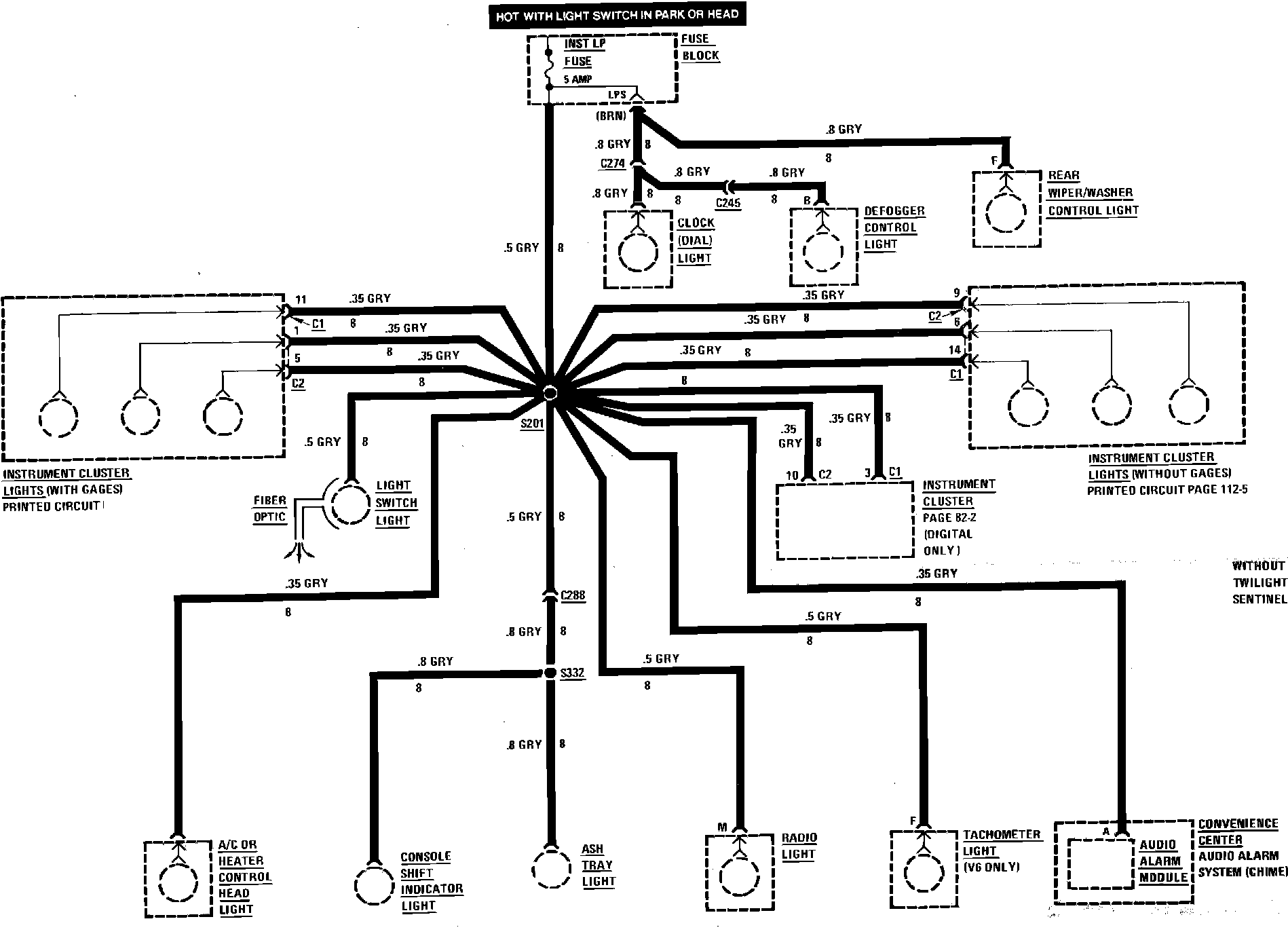

Fuse Block Details (Instrument Lamp Fuse):
