Century L4-151 2.5L VIN R TBI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Radiator Cooling Fan Motor
>>
Less A/C
Less A/C

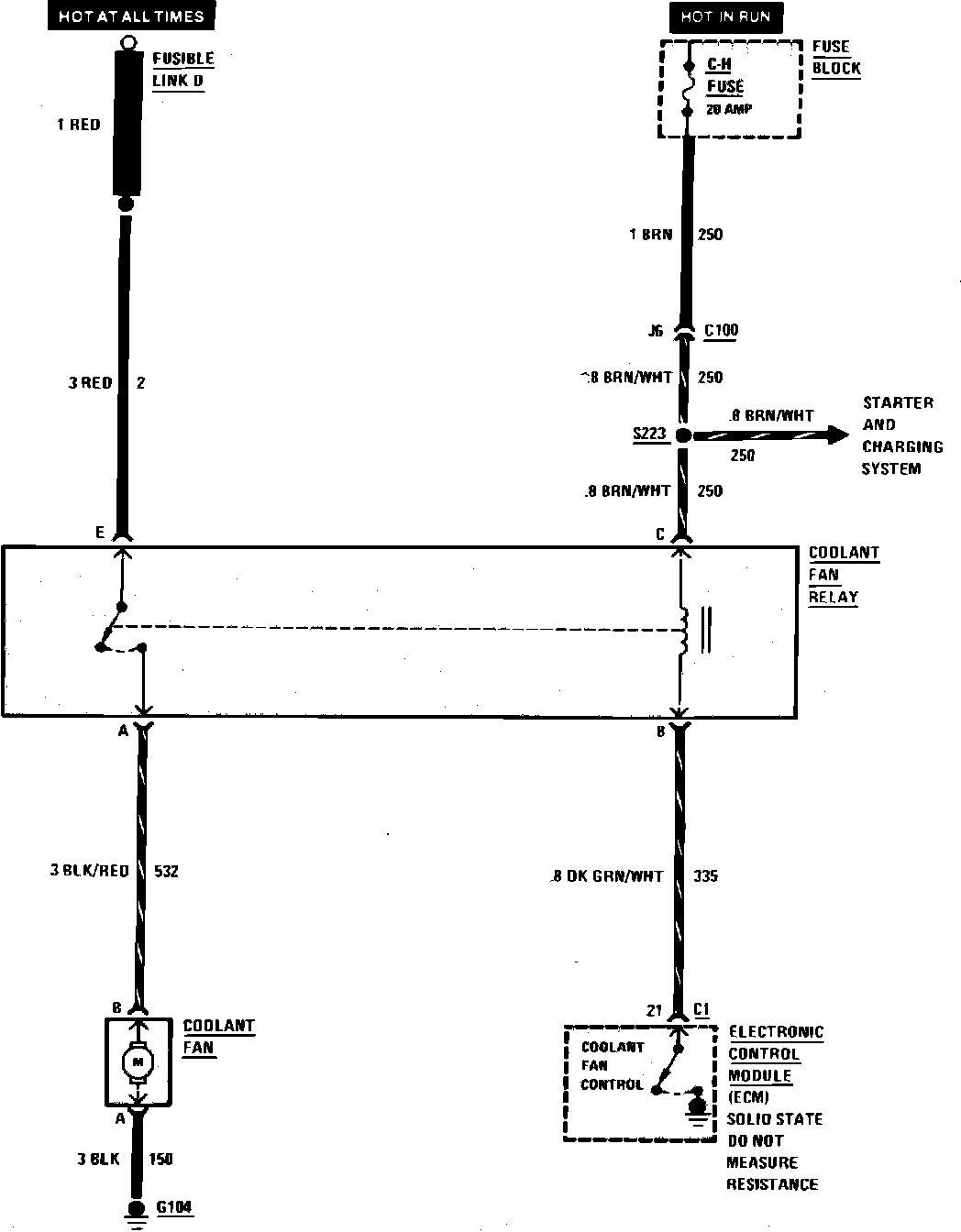

Cooling Fan Wiring Circuit (Engine Less A/C):
