Century Estate Wagon V6-231 3.8L VIN 3 FI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Malfunction Indicator Lamp
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

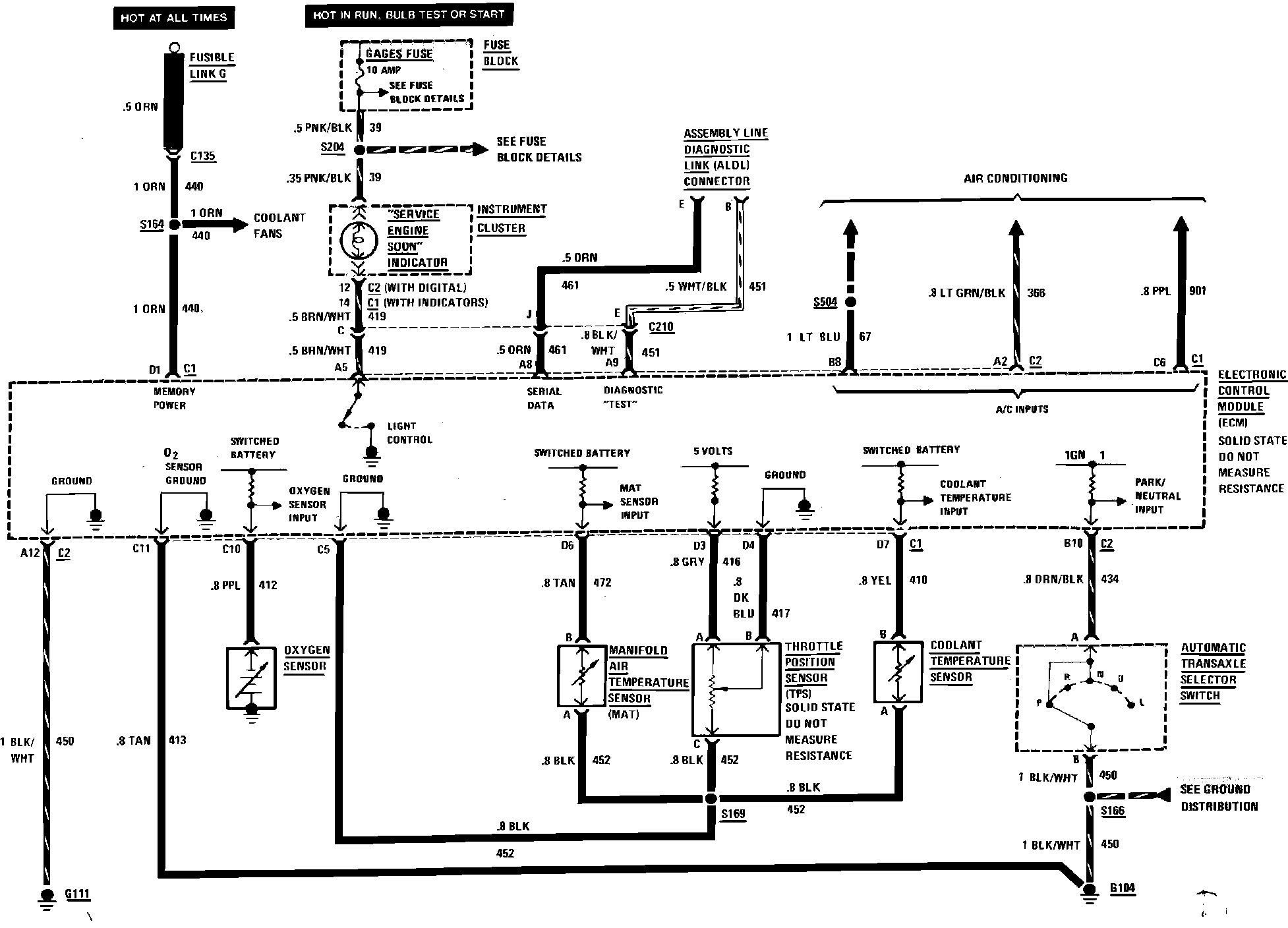

Sequential Fuel Injection Wiring Circuit (Automatic Transaxle Selector Switch, Engine Data Sensors & Service Engine Soon Indicator):
