Home
>>
Buick
>>
1987
>>
Century Estate Wagon V6-231 3.8L VIN 3 FI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
System Diagram
>>
Powertrain Controls
>>
With Sequential Fuel Injection (SFI)
>>
Ignition
Ignition

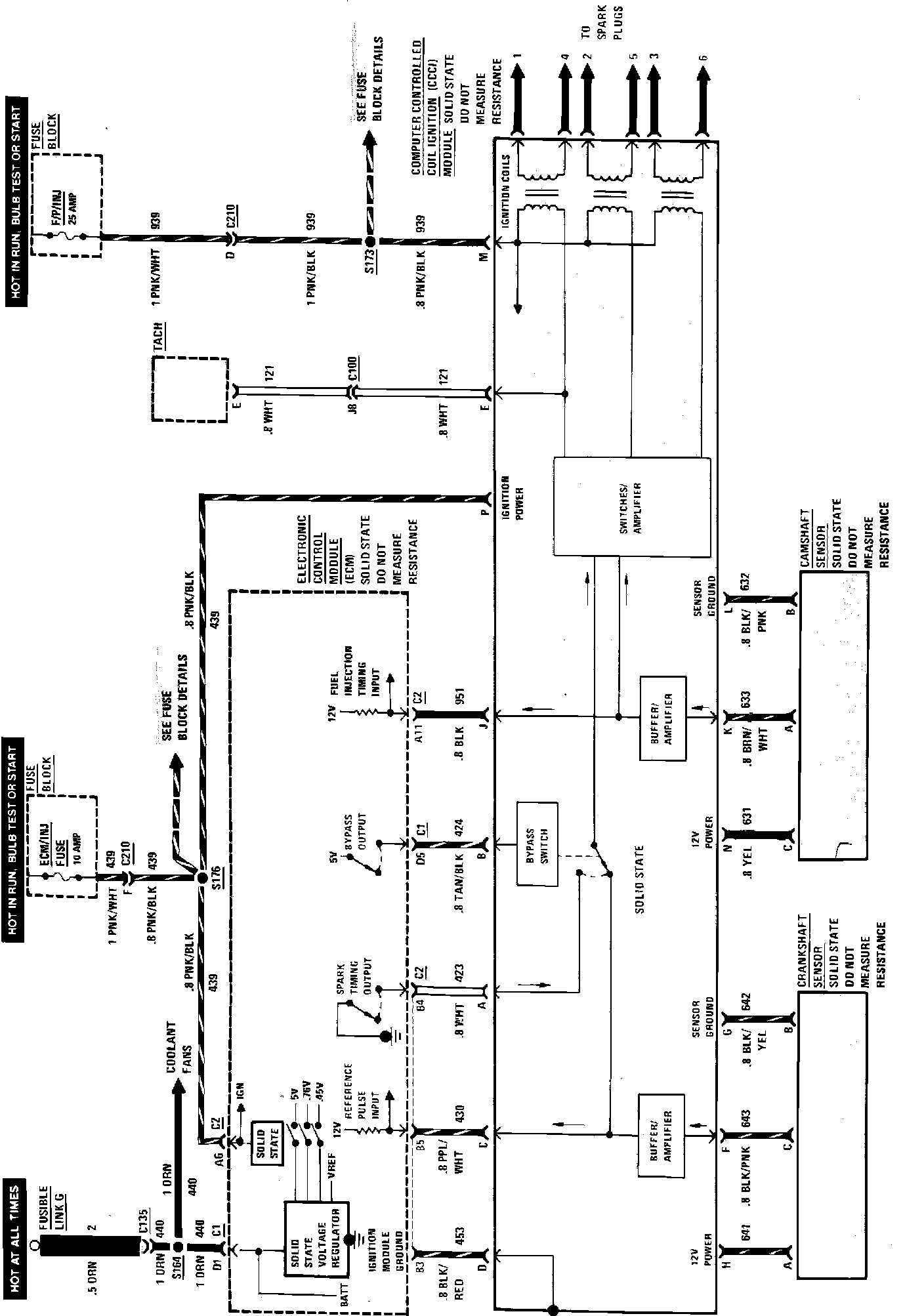

Sequential Fuel Injection Wiring Circuit (Ignition):
