Home
>>
Buick
>>
1985
>>
Skylark L4-151 2.5L
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Diagrams
>>
Electrical Diagrams
>>
Charging System
Charging System

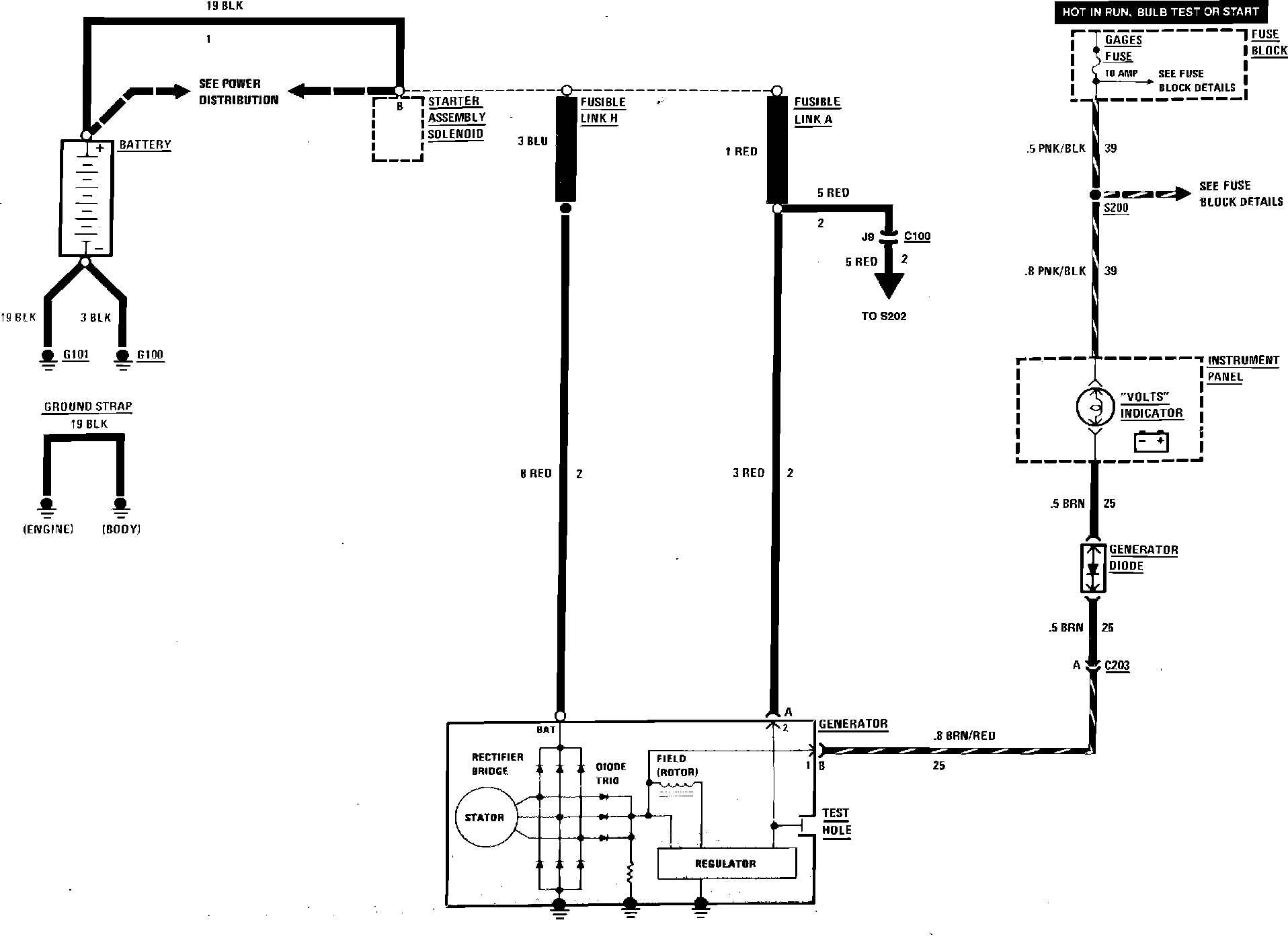

Fig. 23 Charging System Wiring Circuit. 4 Cylinder:
