Buick
>>
1985
>>
Electra V6-231 3.8L
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
System Response Chart
System Response Chart

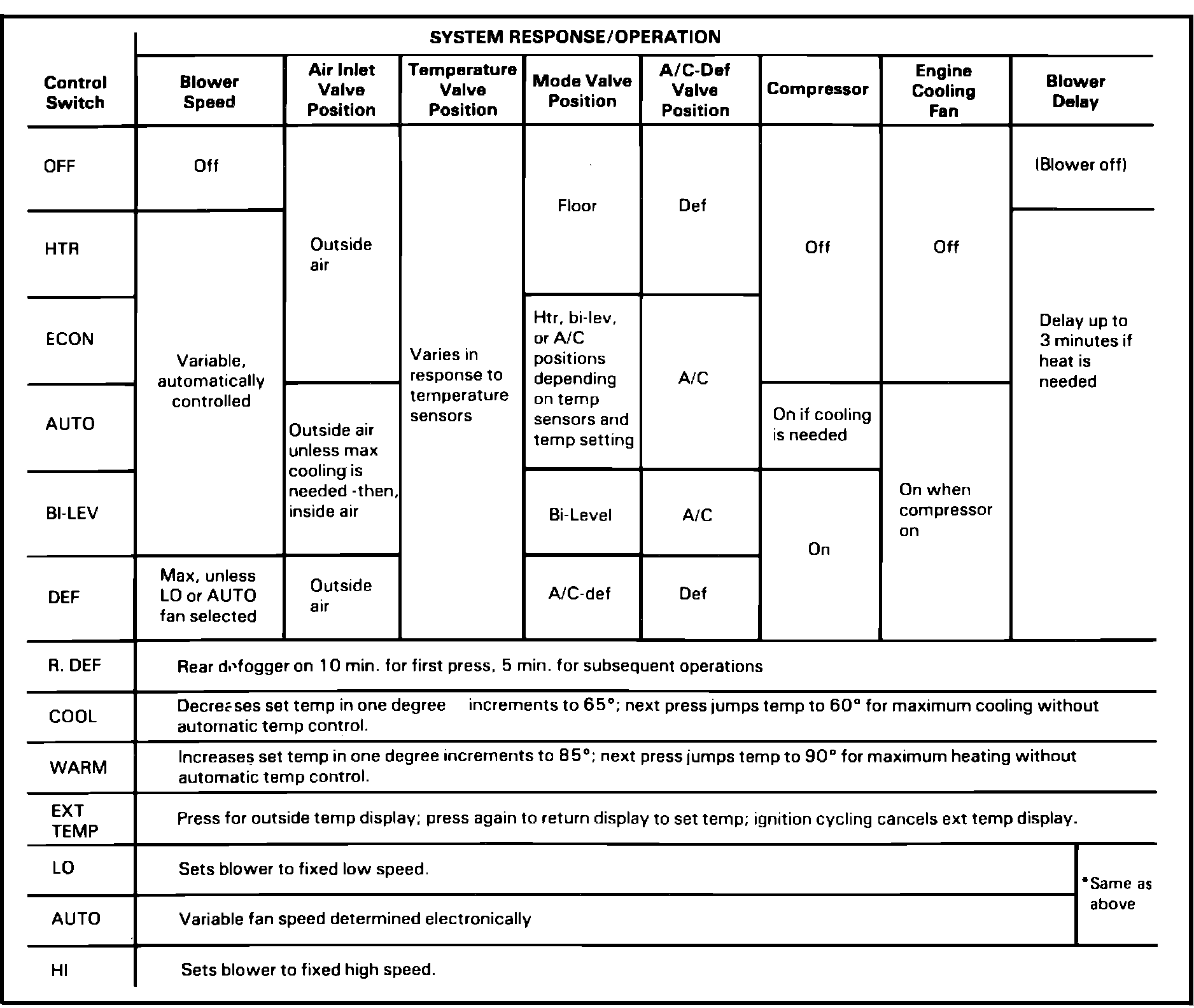

Fig. 16 ETCC System Performance Chart.:
