Home
>>
Buick
>>
1984
>>
Skylark V6-173 2.8L VIN X 2-bbl
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Heating and Air Conditioning
>>
With V6 Engine
With V6 Engine

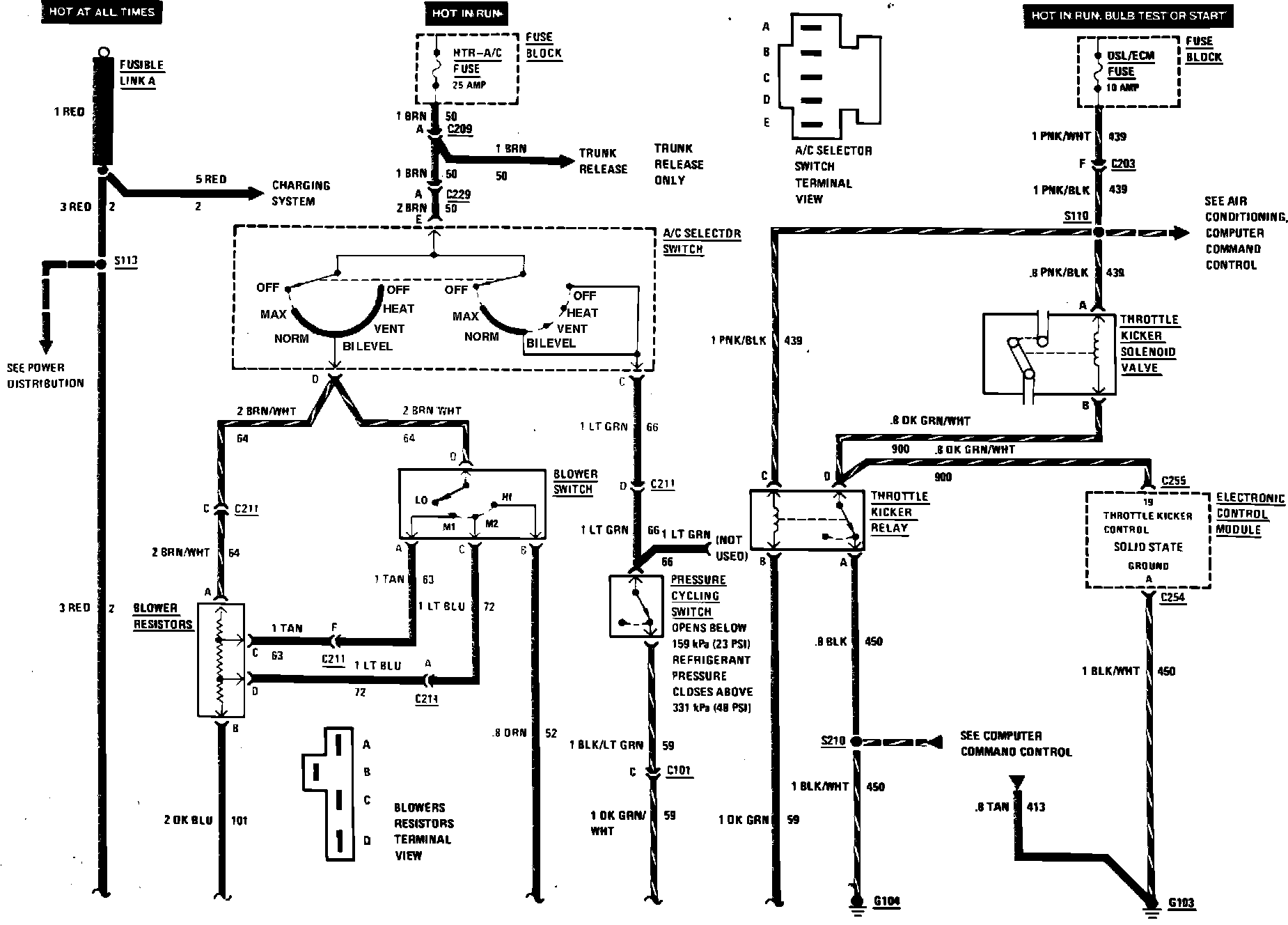

Air Conditioning Wiring Circuit:
