Windshield - Service Manual Revision
Bulletin 84-10-4Date Nov. '83
Ref. No. 84-062-10
SUBJECT: SERVICE MANUAL REVISION - 1984 "J" SECTION #11
MODELS AFFECTED: SKYHAWK WINDSHIELD AND BACK WINDOWS ON "27-69" STYLES
Windshields on Skyhawk and back windows on "J-27-69" styles will use spacers to maintain proper dimensions of the glass in its respective opening.

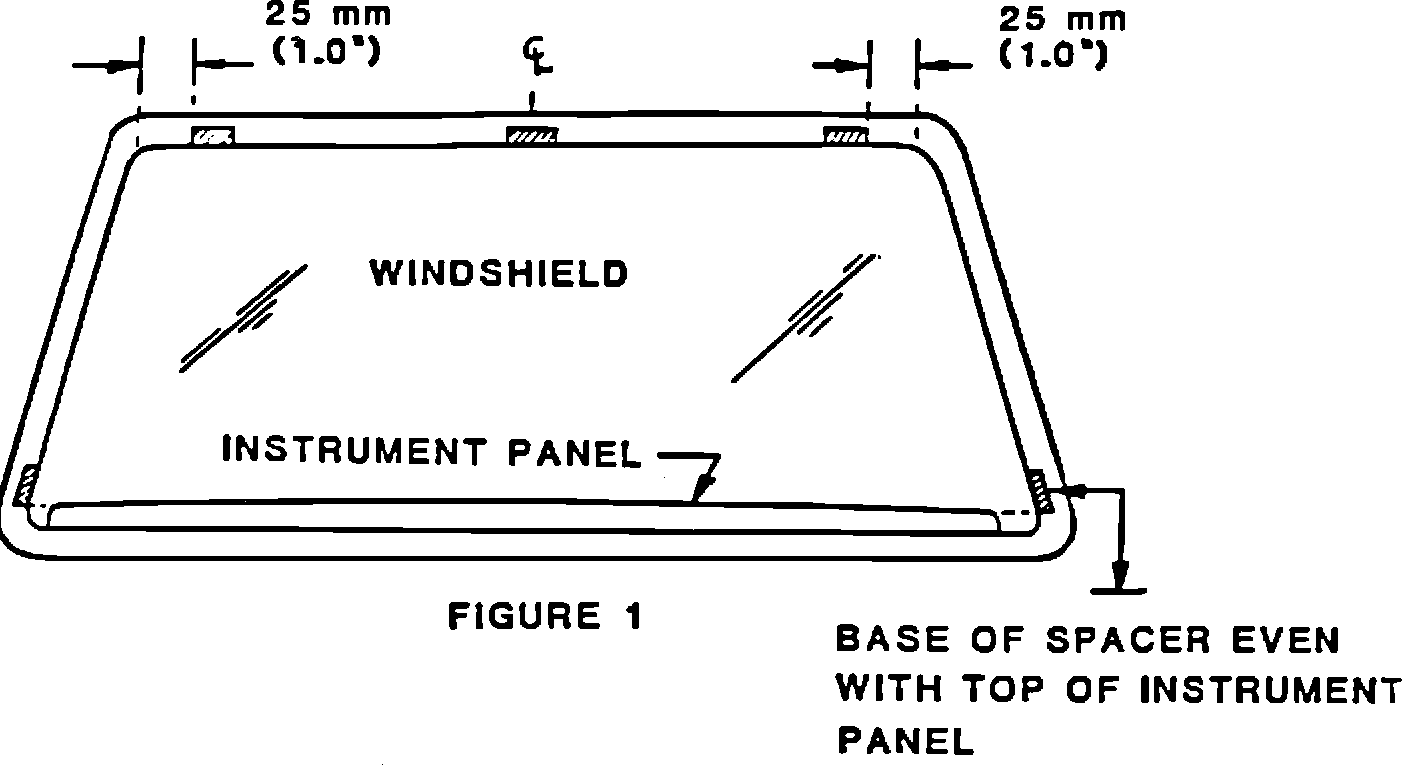

FIGURE 1:
FIGURE 2 - RECOMMENDED SPACER LOCATION:
The spacer (part number 20481008) is mounted on the pinch weld flange in five (5) locations for windshields (Figure 1) and five
(5) locations on back windows (See Figure 2).
