Skyhawk L4-112 1.8L Turbo VIN J FI
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution
>>
Instrument Panel Wiring Circuit
Instrument Panel Wiring Circuit

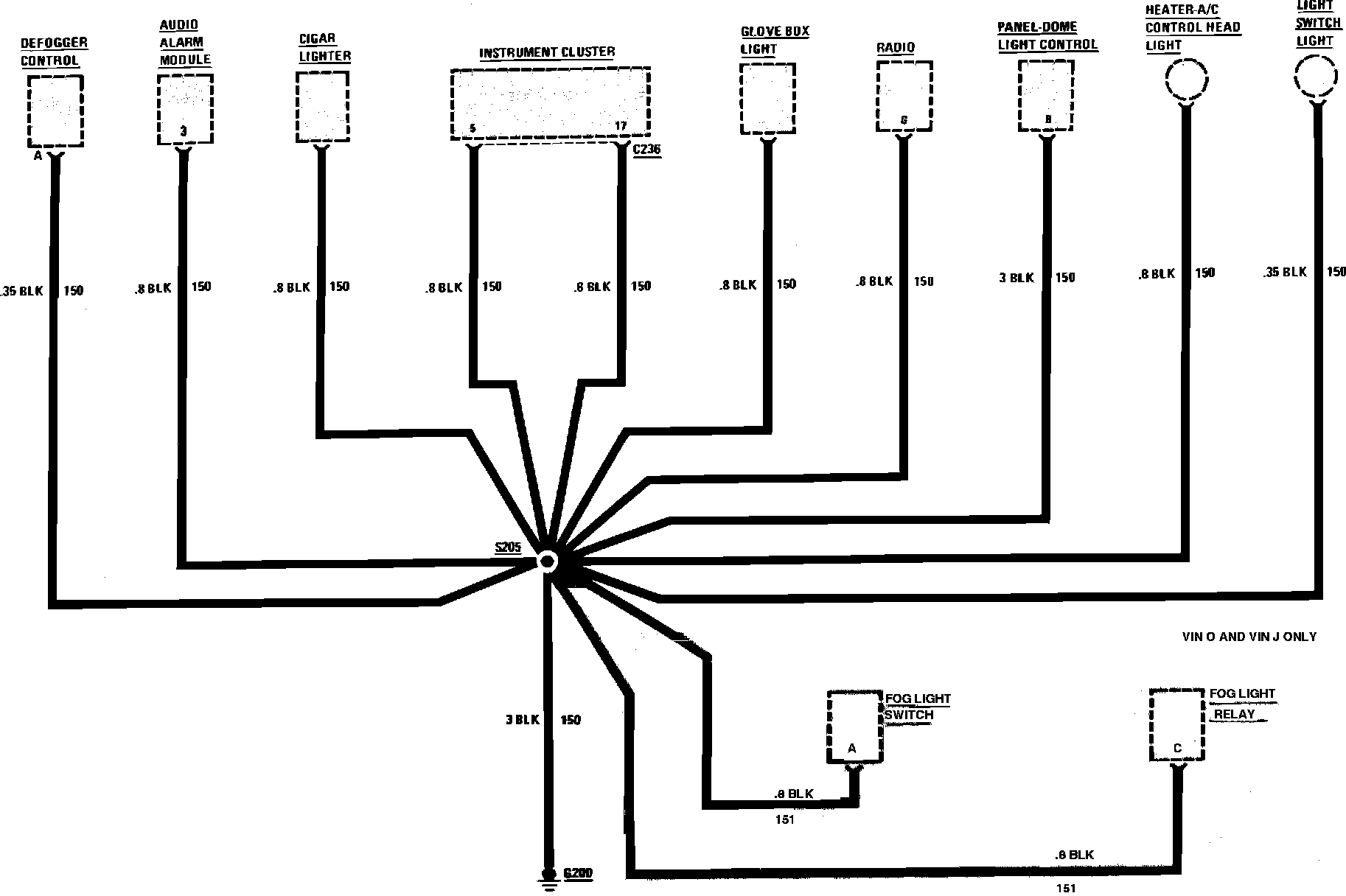

Ground Distribution (Instrument Panel Wiring Circuit):
