Home >> Buick >> 1984 >> Riviera V6-252 4.1L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Seats >> Memory Seats >> Part 2 of 2

Part 2 of 2

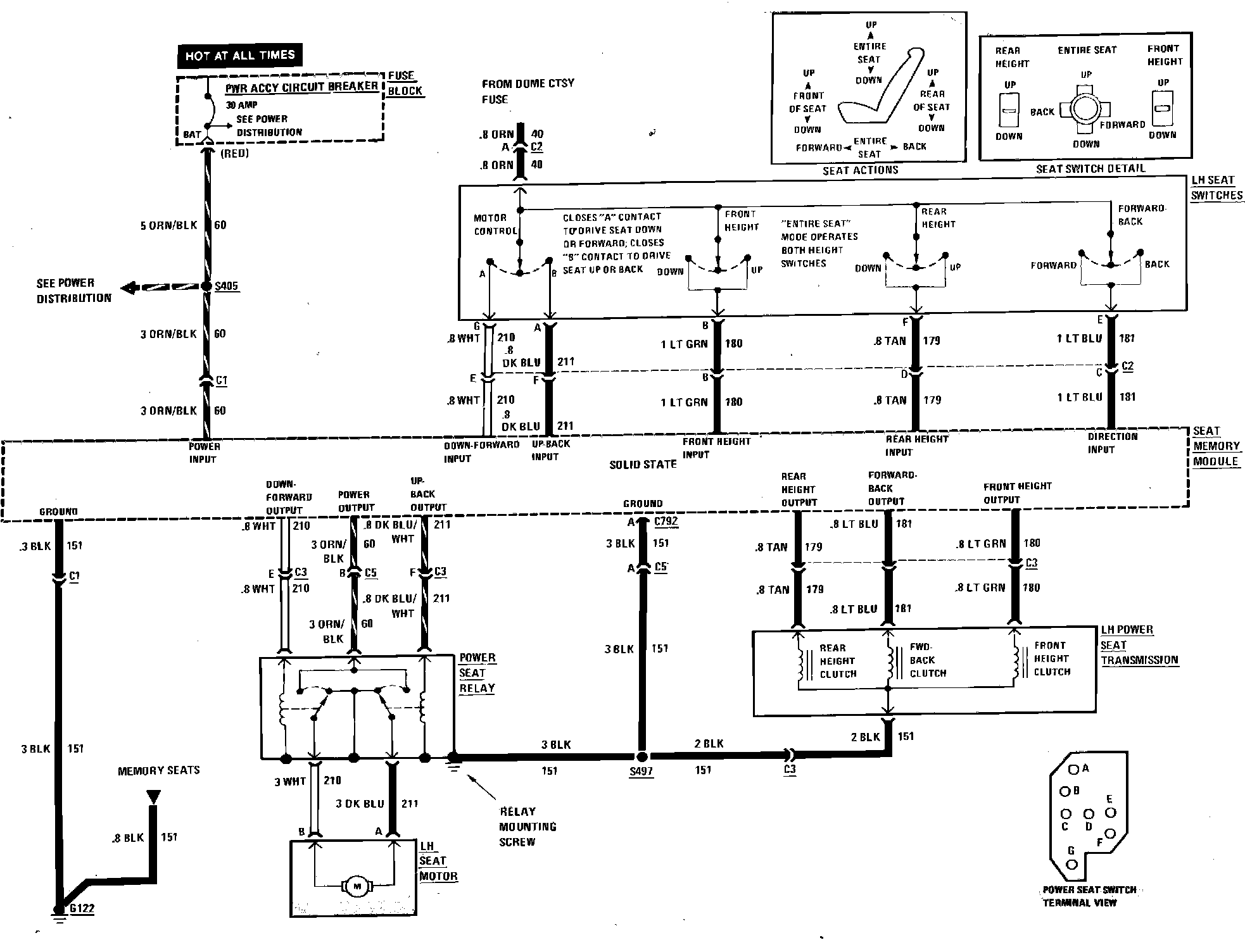

Memory Seats Wiring Circuit:
