Buick
>>
1984
>>
Regal V6-252 4.1L
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Headlamp
>>
Diagrams
>>
Electrical Diagrams
>>
Without Twilight Sentinel
Without Twilight Sentinel

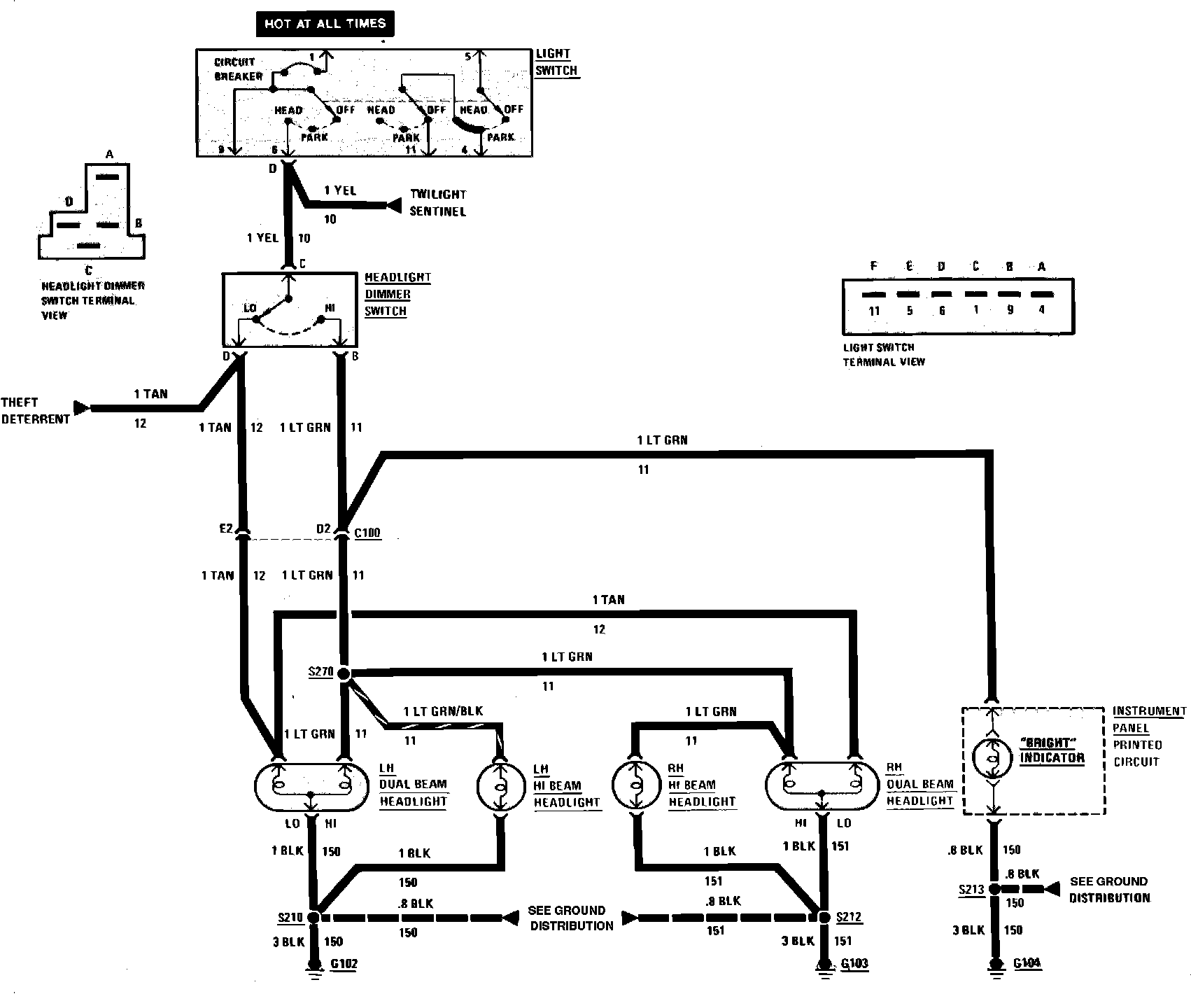

Headlamp Wiring Circuit (Less Twilight Sentinel):
