Buick
>>
1984
>>
Regal V6-252 4.1L
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Brake Lamp
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

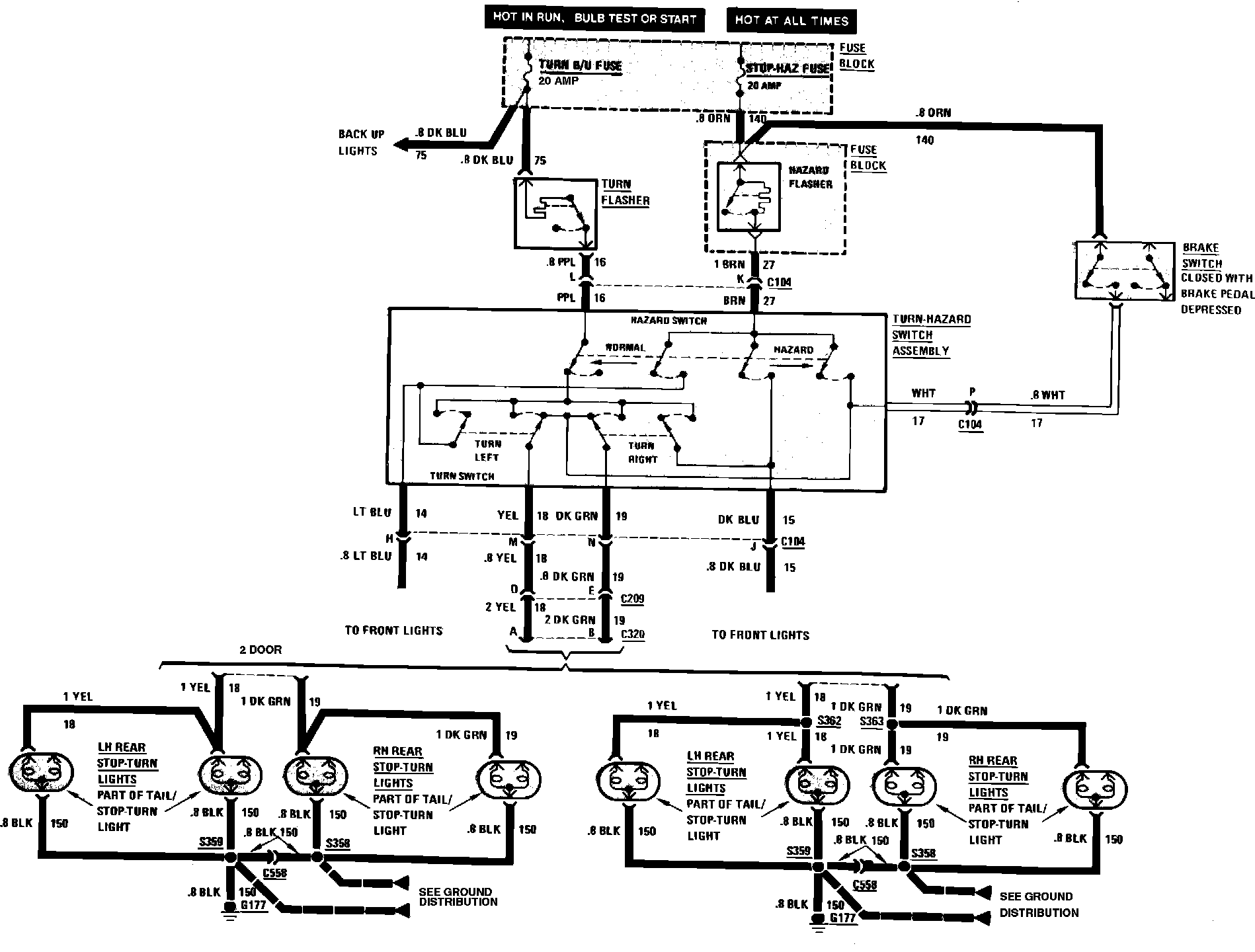

Front Marker, Front Park, Hazard, Stop & Turn Signal Wiring Circuit:
