Rear Lighting Circuit 2 Door
Rear Lighting Circuit 2 Door

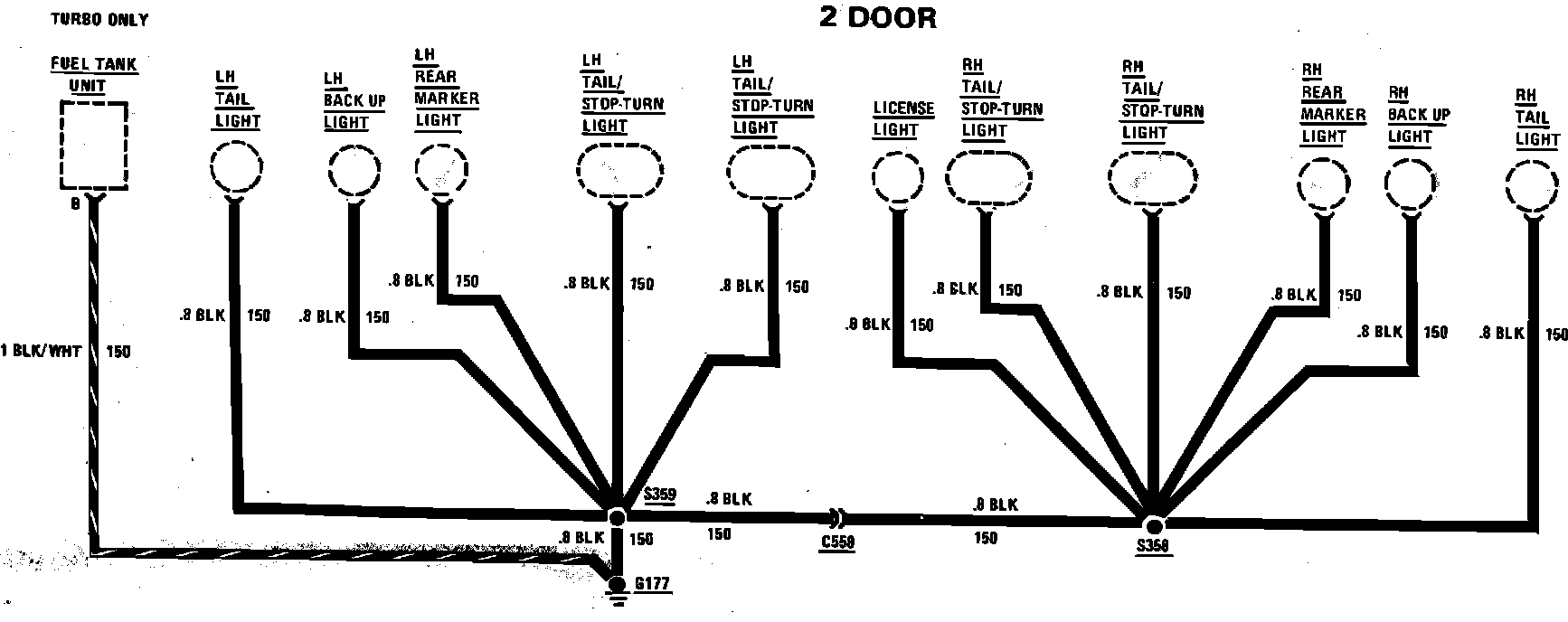

Ground Distribution (Rear Lighting Circuit):
