Buick
>>
1984
>>
LeSabre V6-231 3.8L VIN A 2-bbl
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Trunk / Liftgate
>>
System Diagram
System Diagram

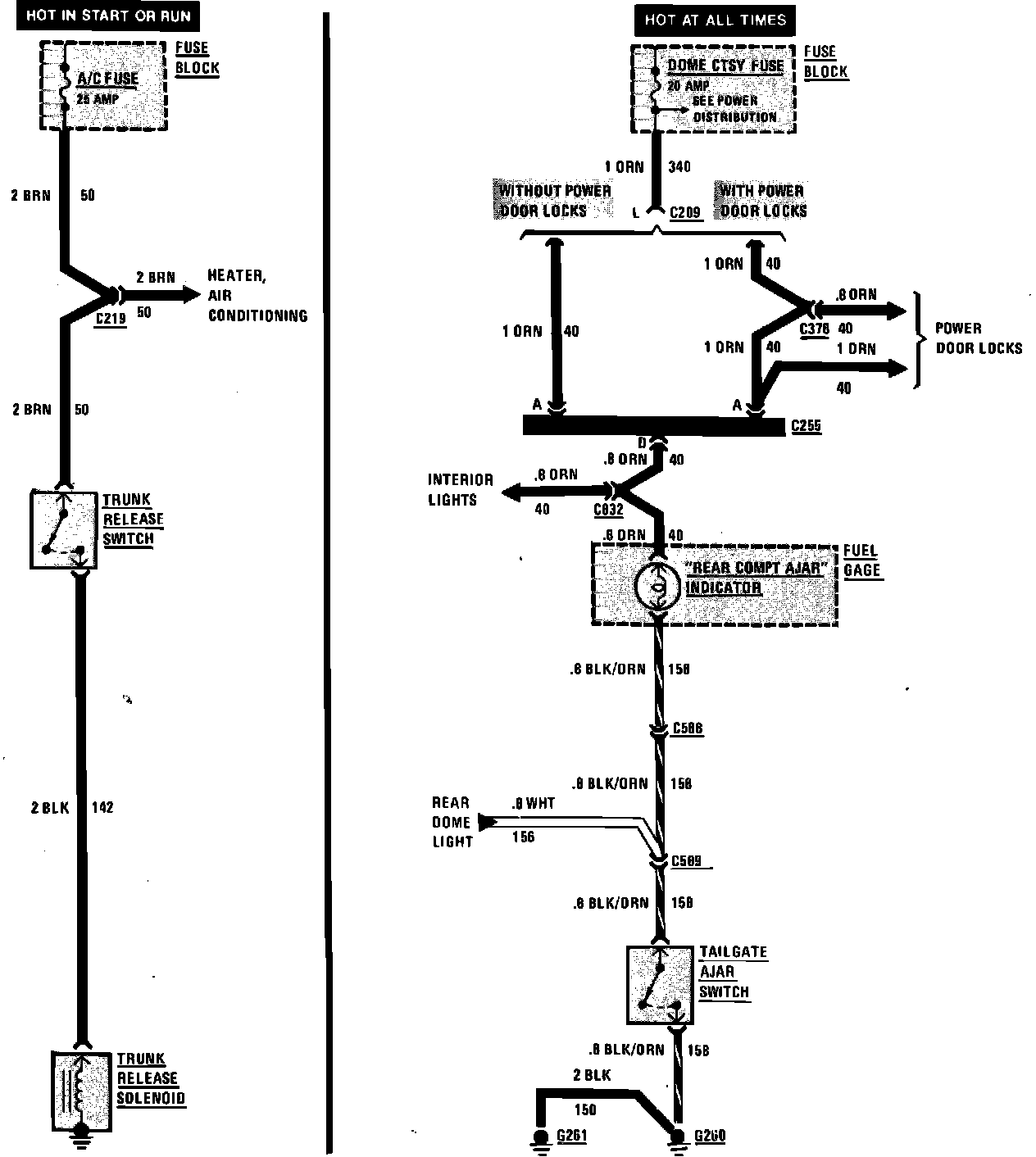

Tailgate Ajar Indicator/Trunk Release Wiring Circuit:
