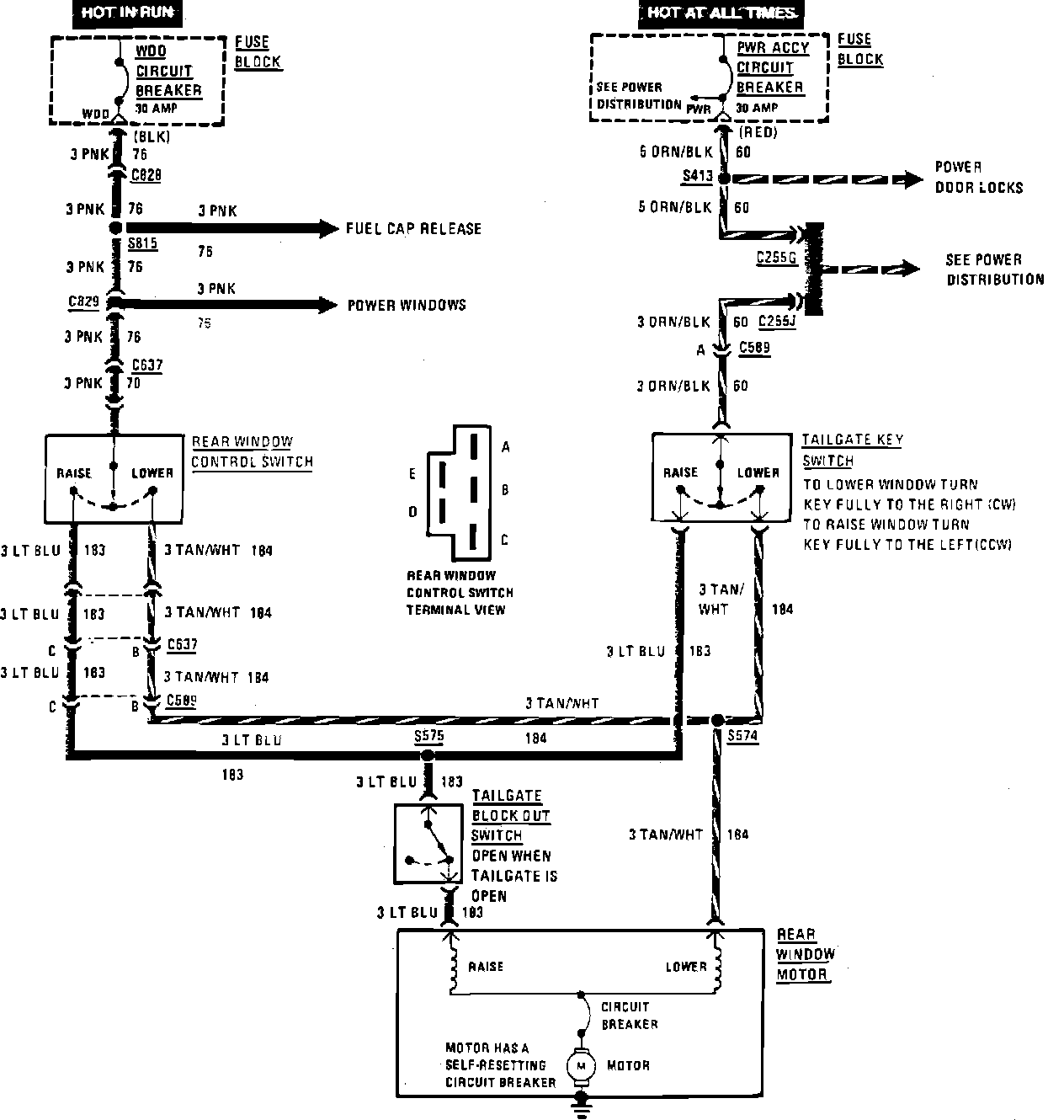

Tailgate Power Window Wiring Circuit Electra
Tailgate Power Window Wiring Circuit Electra
Tailgate Power Window Wiring Circuit:
