Buick
>>
1984
>>
Electra V6-252 4.1L VIN 4 4-BBL
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting and Charging
>>
Power and Ground Distribution
>>

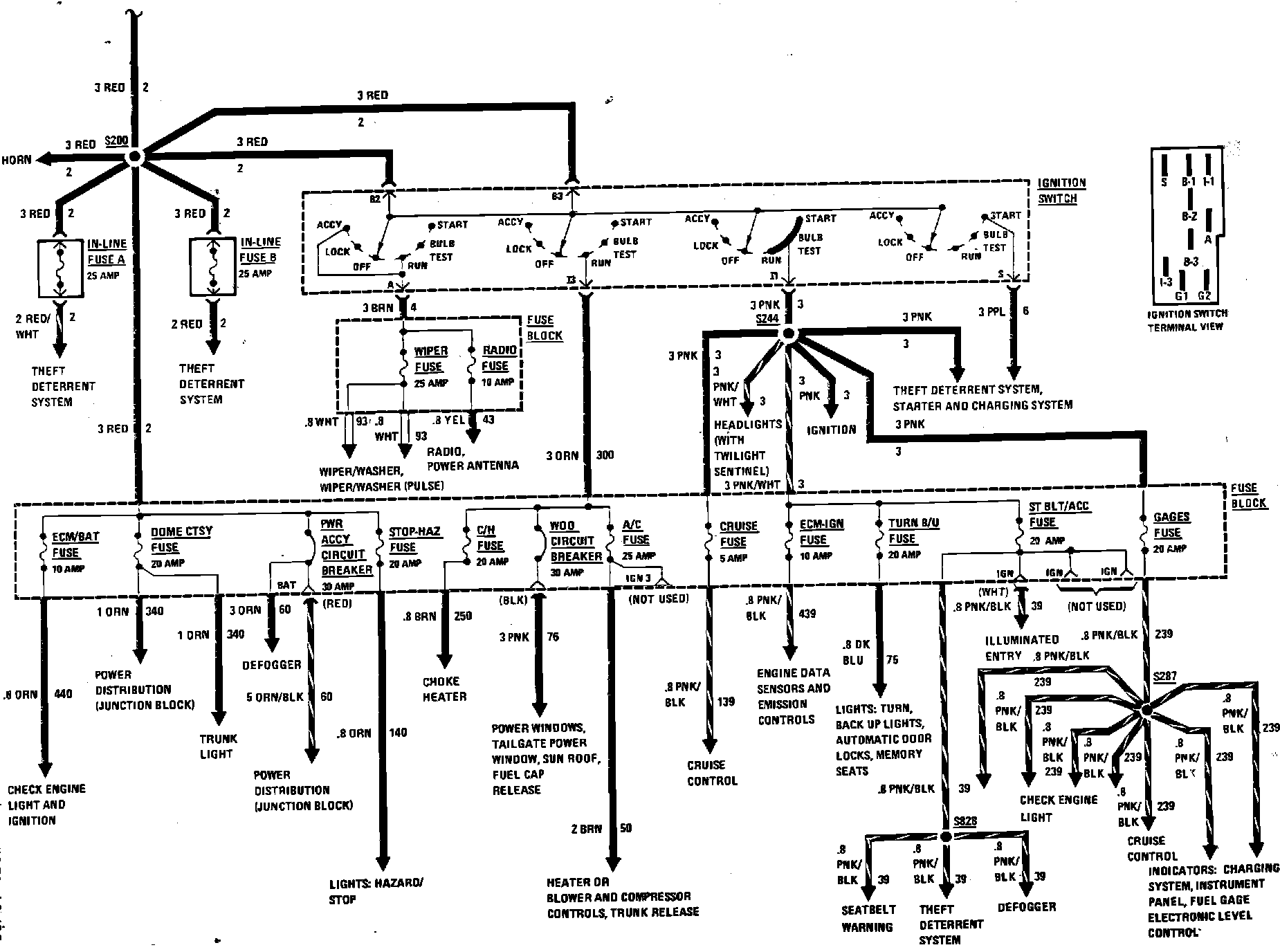

Power Distribution Wiring Circuit
>>
With Twilight Sentinel (Part 2 of 2)
With Twilight Sentinel (Part 2 of 2)
Power Distribution, Twillight Sentinel:
