Home
>>
Buick
>>
1984
>>
Electra V6-252 4.1L VIN 4 4-BBL
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Radio, Stereo, and Compact Disc
>>
Less CB
Less CB

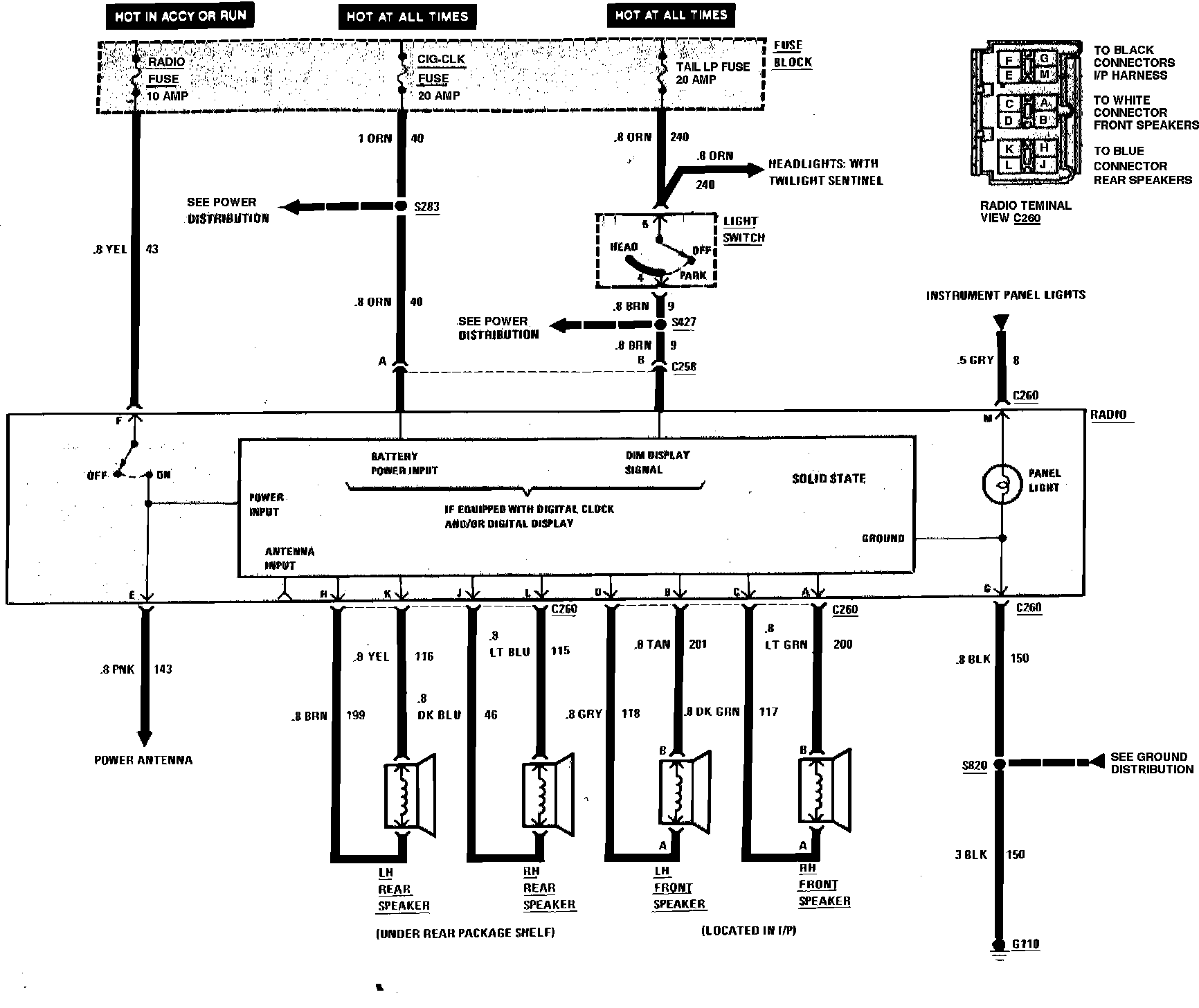

Radio Wiring Circuit (Less CB):
