Buick
>>
1984
>>
Electra V6-252 4.1L VIN 4 4-BBL
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
System Diagram
>>
Choke Heater & Engine Warning Indicators
Choke Heater & Engine Warning Indicators

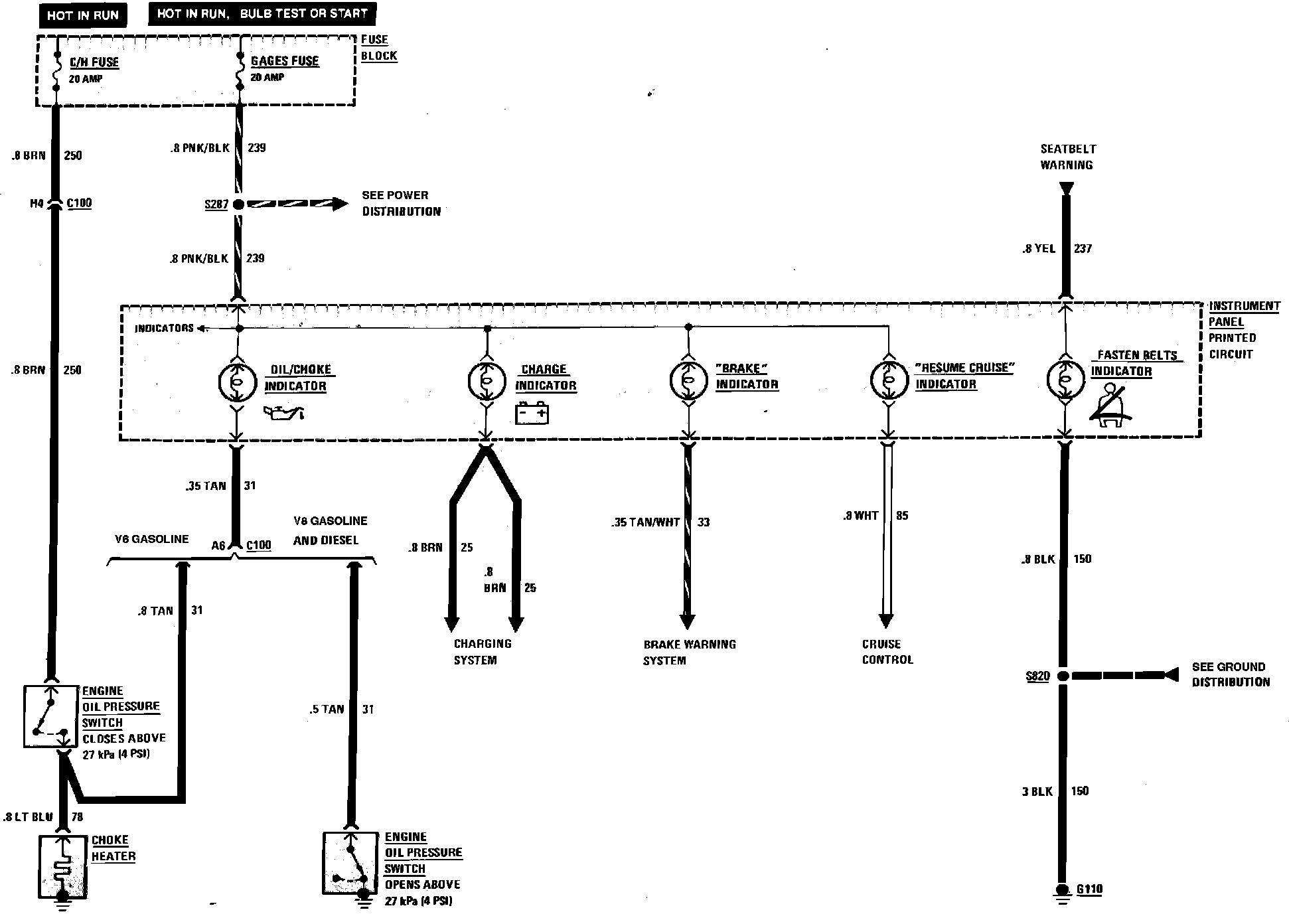

Choke Heater & Indicators Wiring Circuit:
