Buick
>>
1984
>>
Electra V6-252 4.1L VIN 4 4-BBL
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>

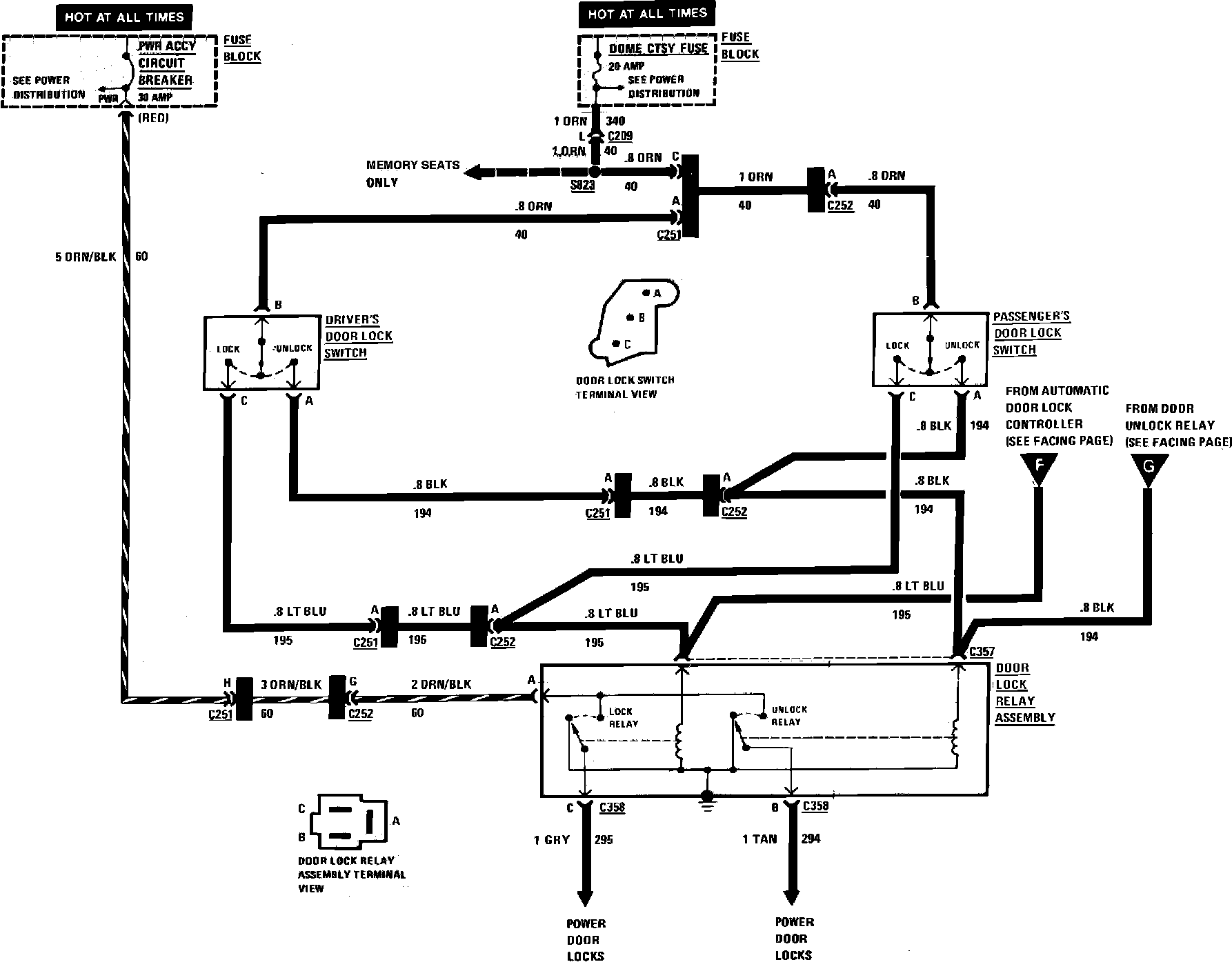

Power Locks
>>
With Power Windows
With Power Windows

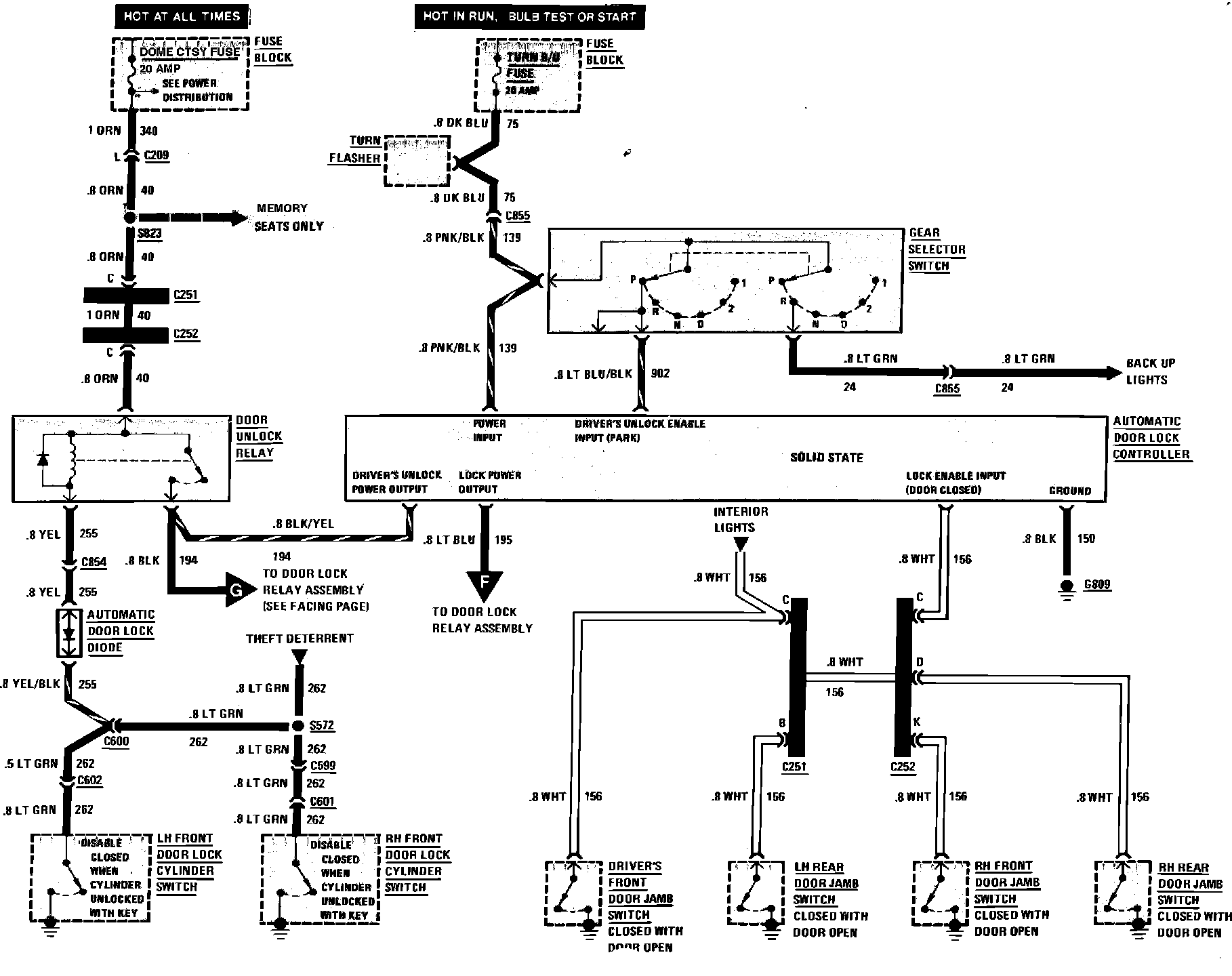

Automatic Door Locks Wiring Circuit:
Automatic Door Locks Wiring Circuit:
