Home
>>
Buick
>>
1984
>>
Electra V6-252 4.1L VIN 4 4-BBL
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Mirrors
>>
With Two Switches
With Two Switches

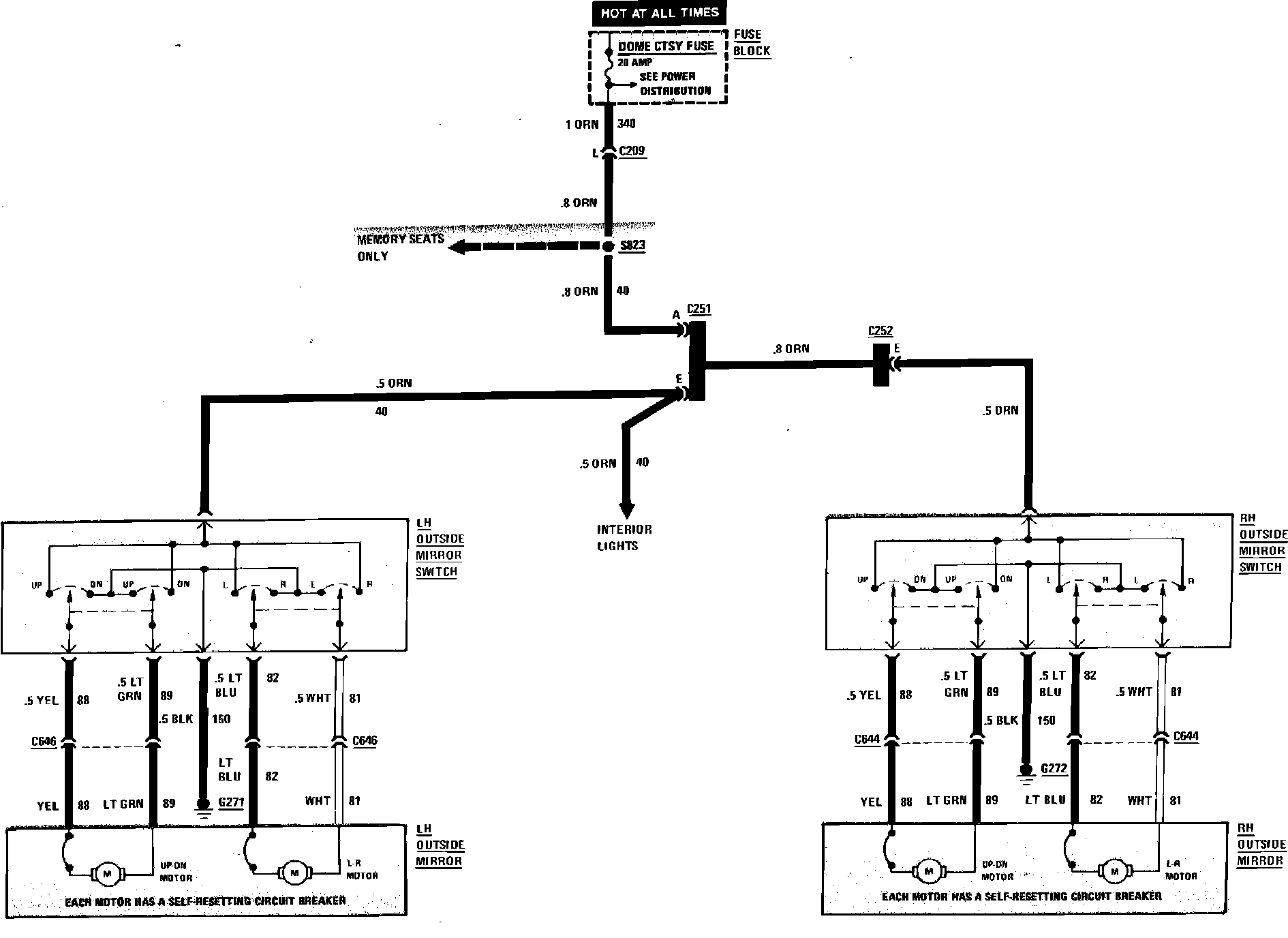

Power Remote Mirror Wiring Circuit:

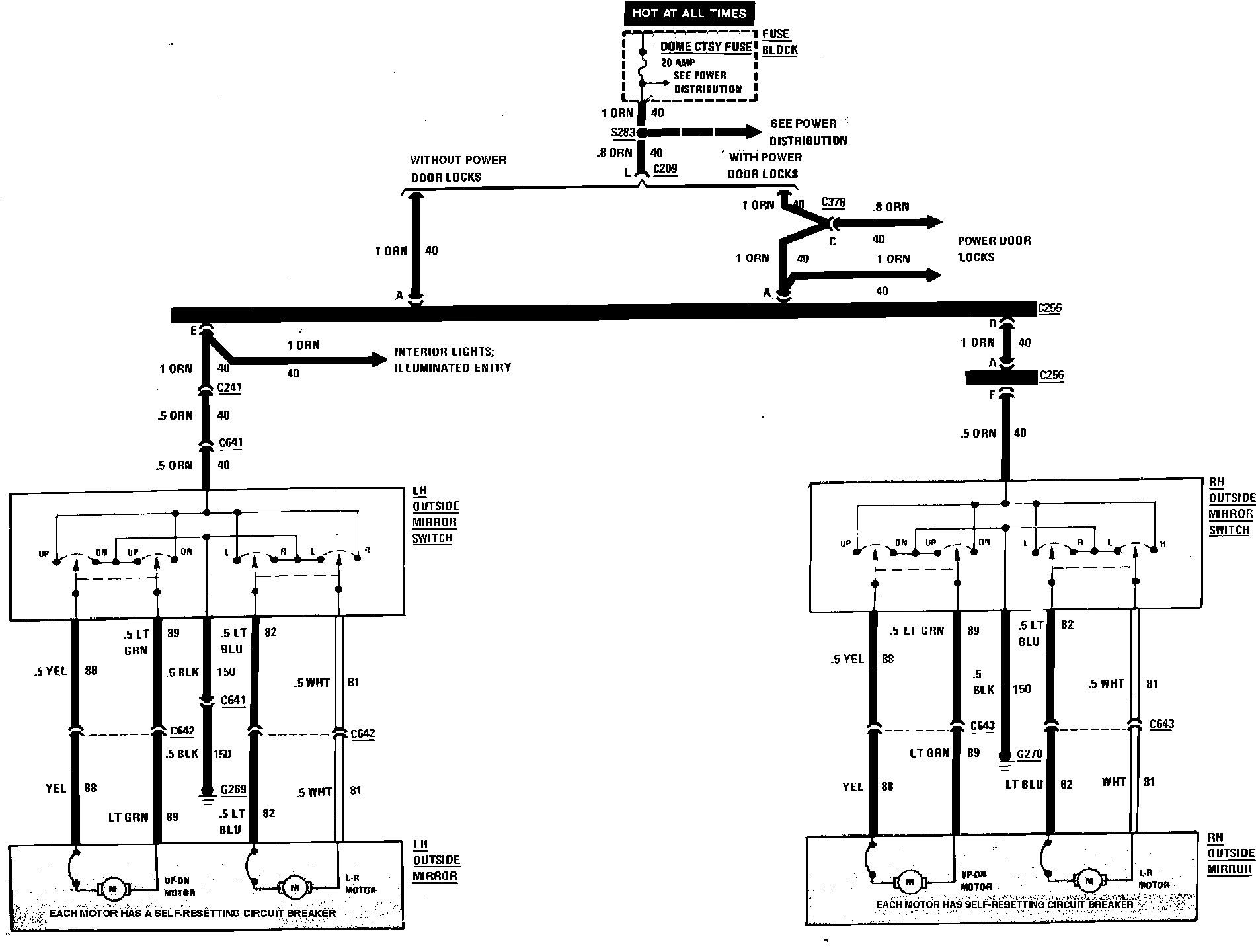

Power Remote Mirror Wiring Circuit, W/Two Switches:
