Home >> Buick >> 1984 >> Electra V6-252 4.1L VIN 4 4-BBL >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Antitheft and Alarm Systems >> Part 2 of 2 (Electra)

Part 2 of 2 (Electra)

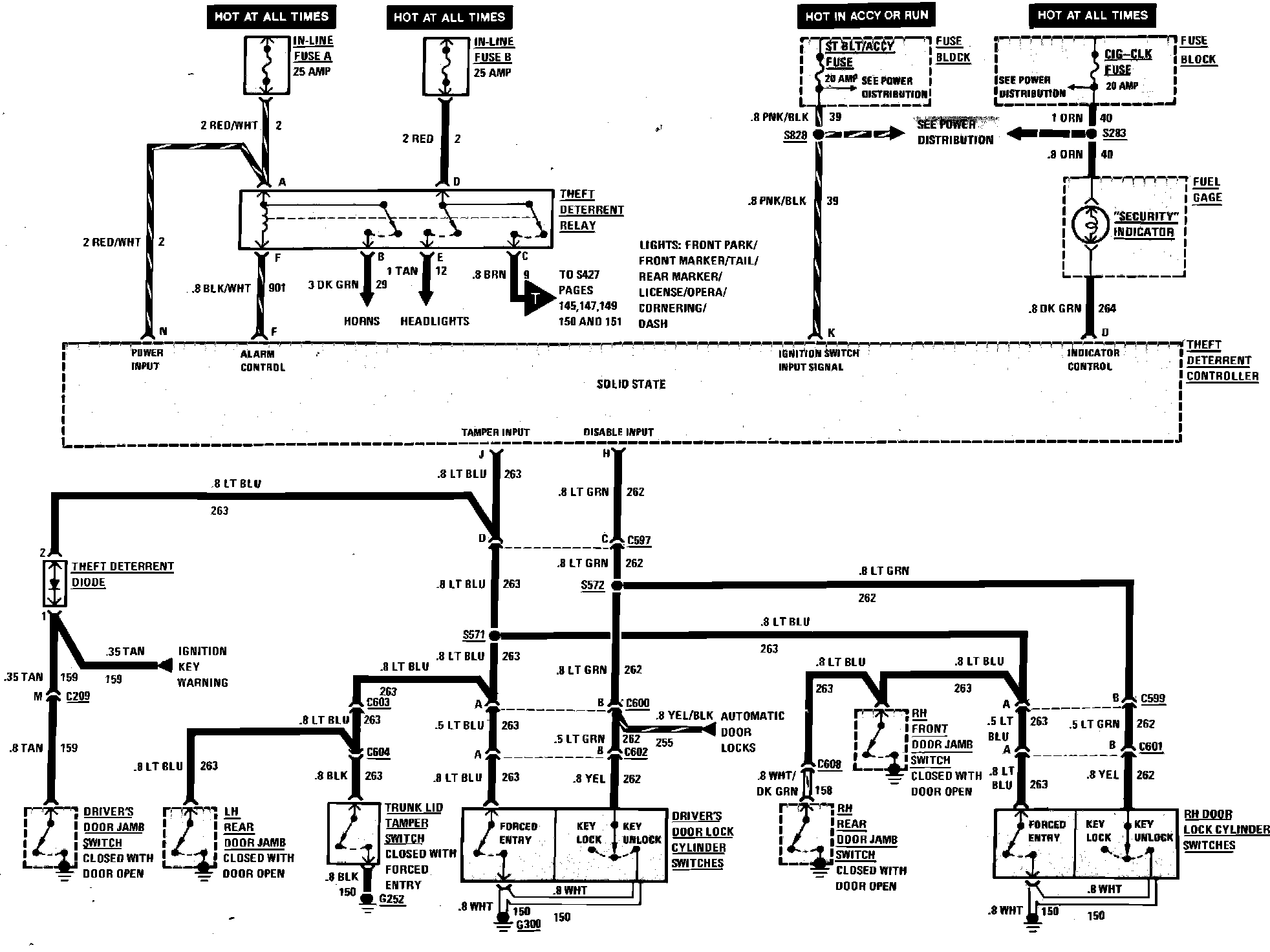

Theft Deterrent System Wiring Circuit:
