Century V6-181 3.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
System Diagram
>>
Fuel Pump Control
Fuel Pump Control

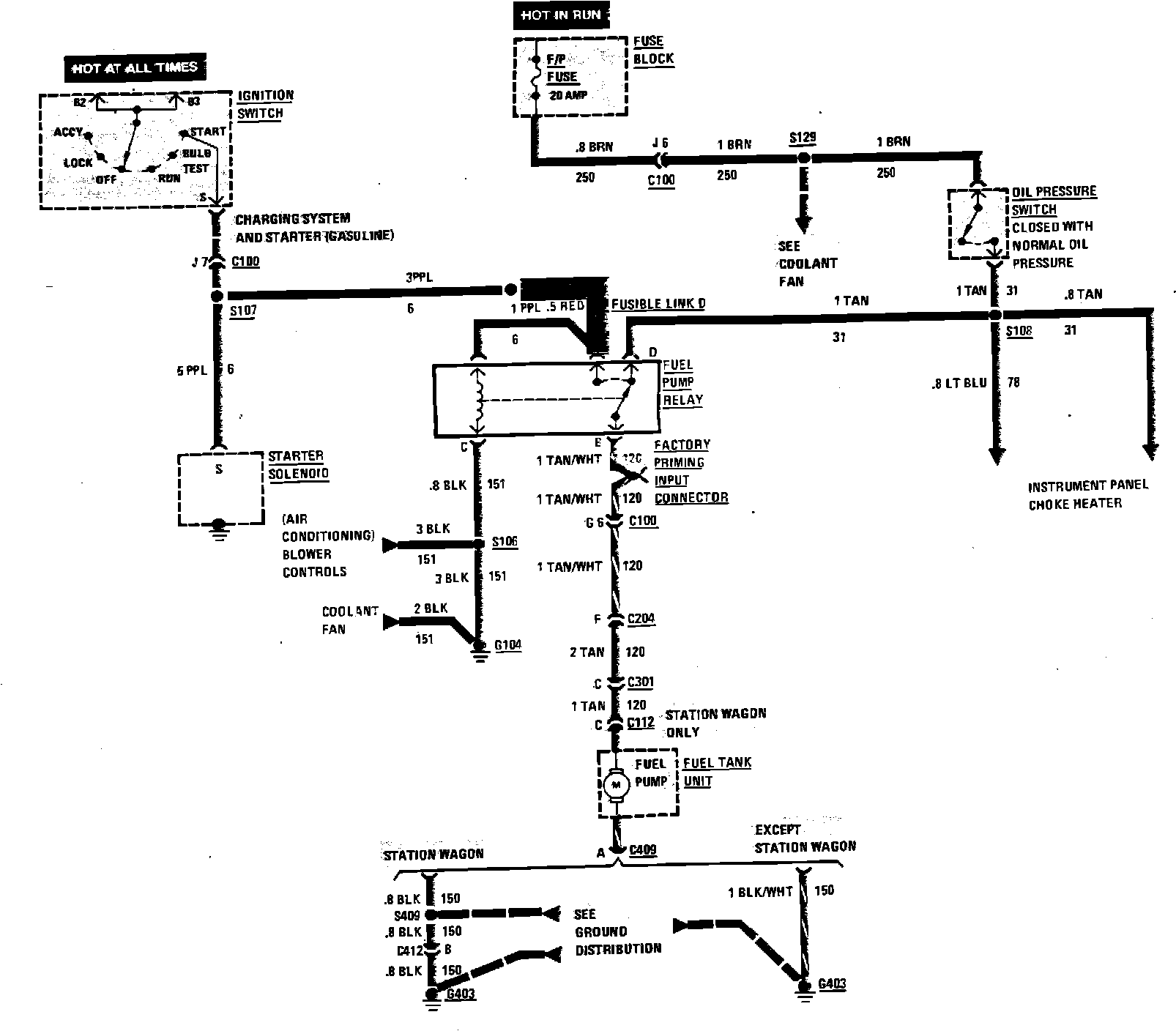

Fuel Pump Wiring Circuit:
