Buick
>>
1984
>>
Century L4-151 2.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Wiper and Washer Systems
>>
Without Pulse
Without Pulse

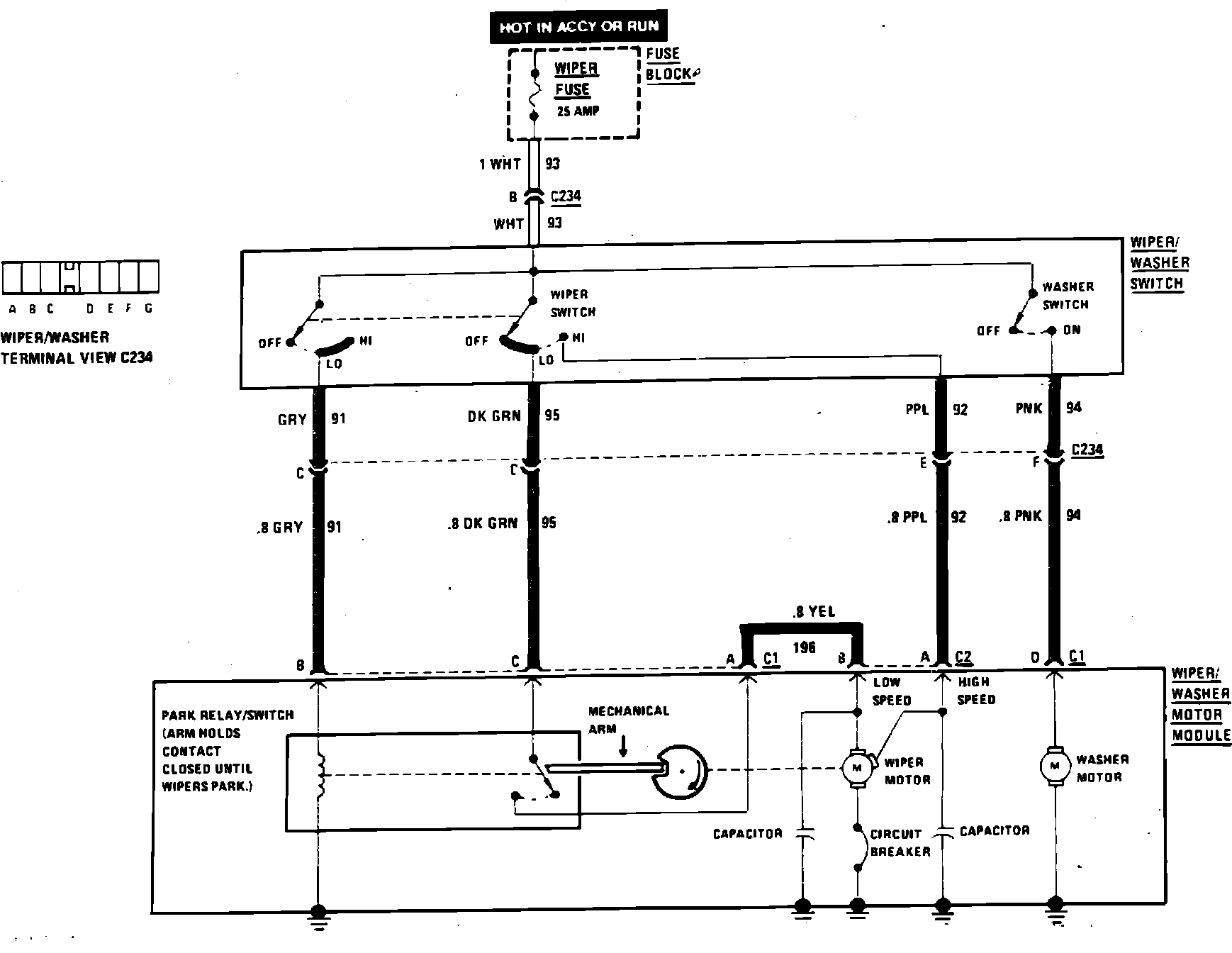

Windshield Wiper/Washer Wiring Circuit (Less Pulse Wipers):
