PCV Valve Hose: Service and Repair

Crankcase Ventilation Hoses/Pipes Replacement

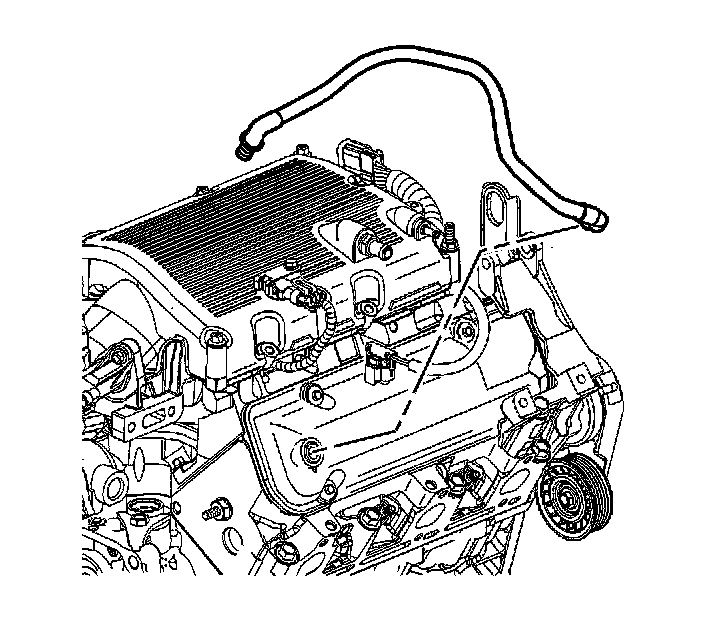

Removal Procedure





1. Disconnect the positive crankcase ventilation (PCV) hose from the intake air duct.
2. Disconnect the crankcase ventilation hose from the right hand engine rocker cover.
3. Remove the crankcase ventilation hose from the engine.

Installation Procedure





1. Install the crankcase ventilation hose to the engine.
2. Connect the crankcase ventilation hose to the right hand engine rocker cover.
3. Connect the positive crankcase ventilation hose to the intake air duct.
