Antilock Brakes / Traction Control Systems



ABS Schematics

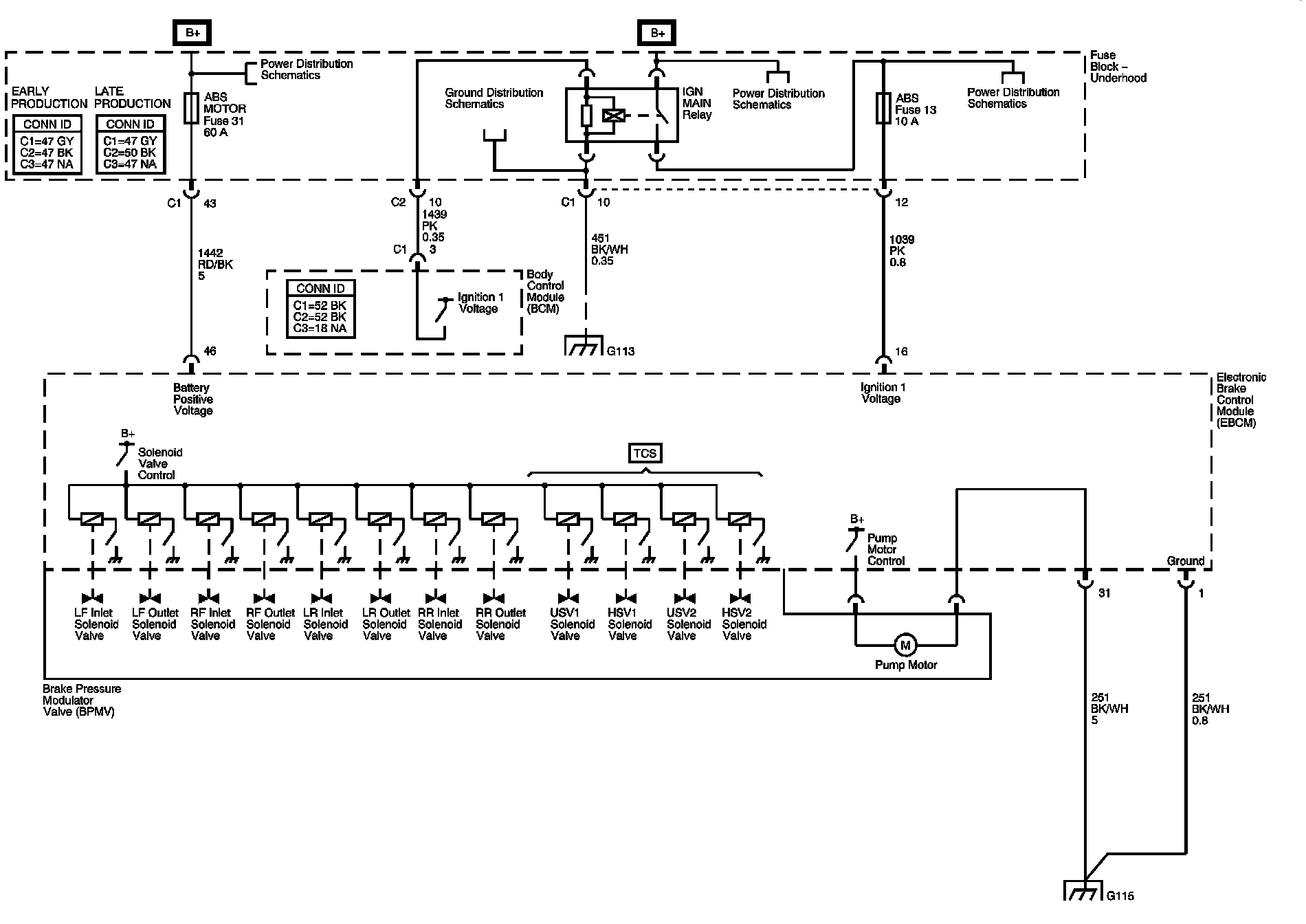

Ground, Power, Pump, and Solenoid Valves:





Ground, Power, Pump and Solenoid Valves

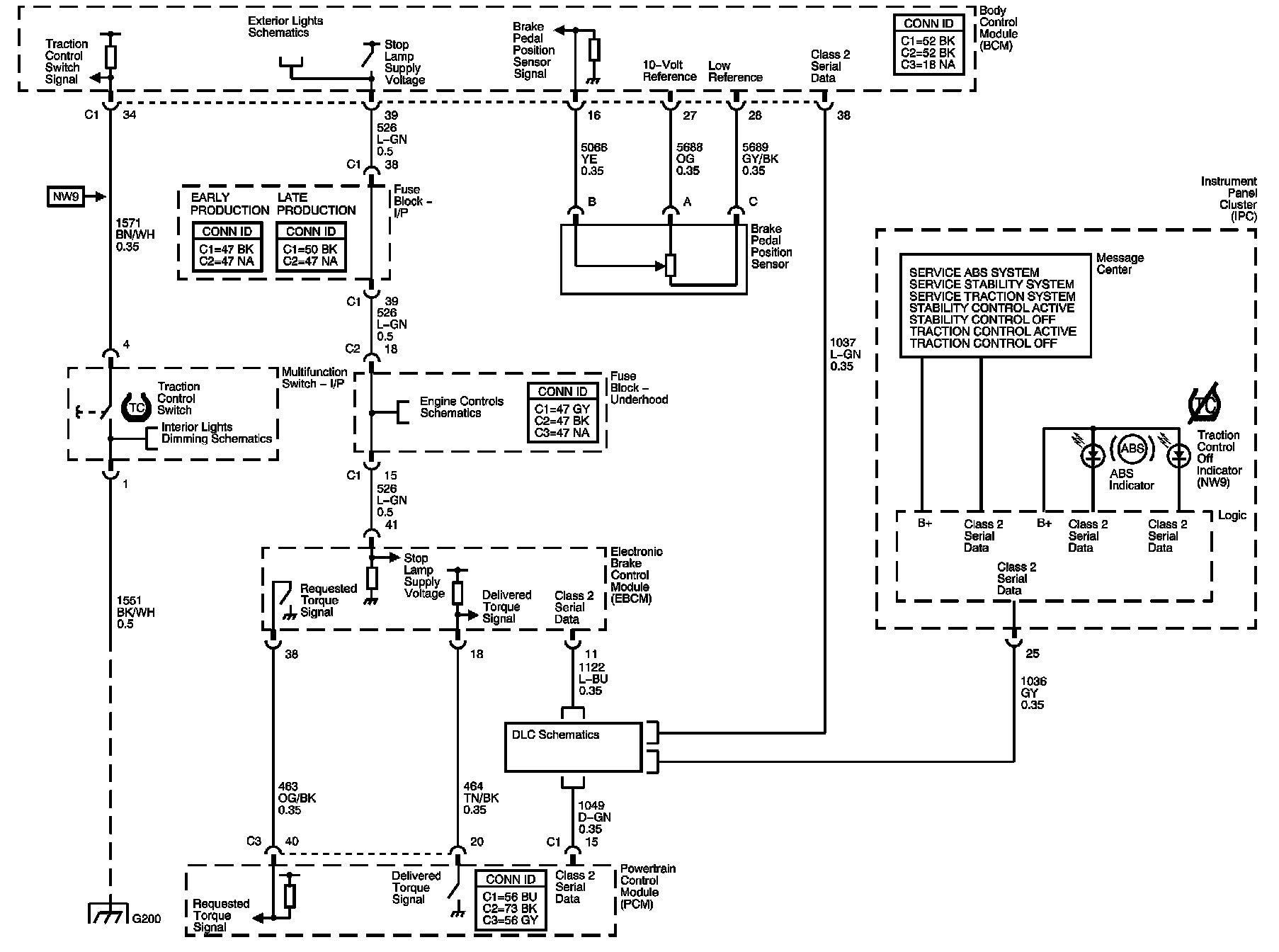

Driver Inputs, Indicators:





Driver Inputs, Indicators

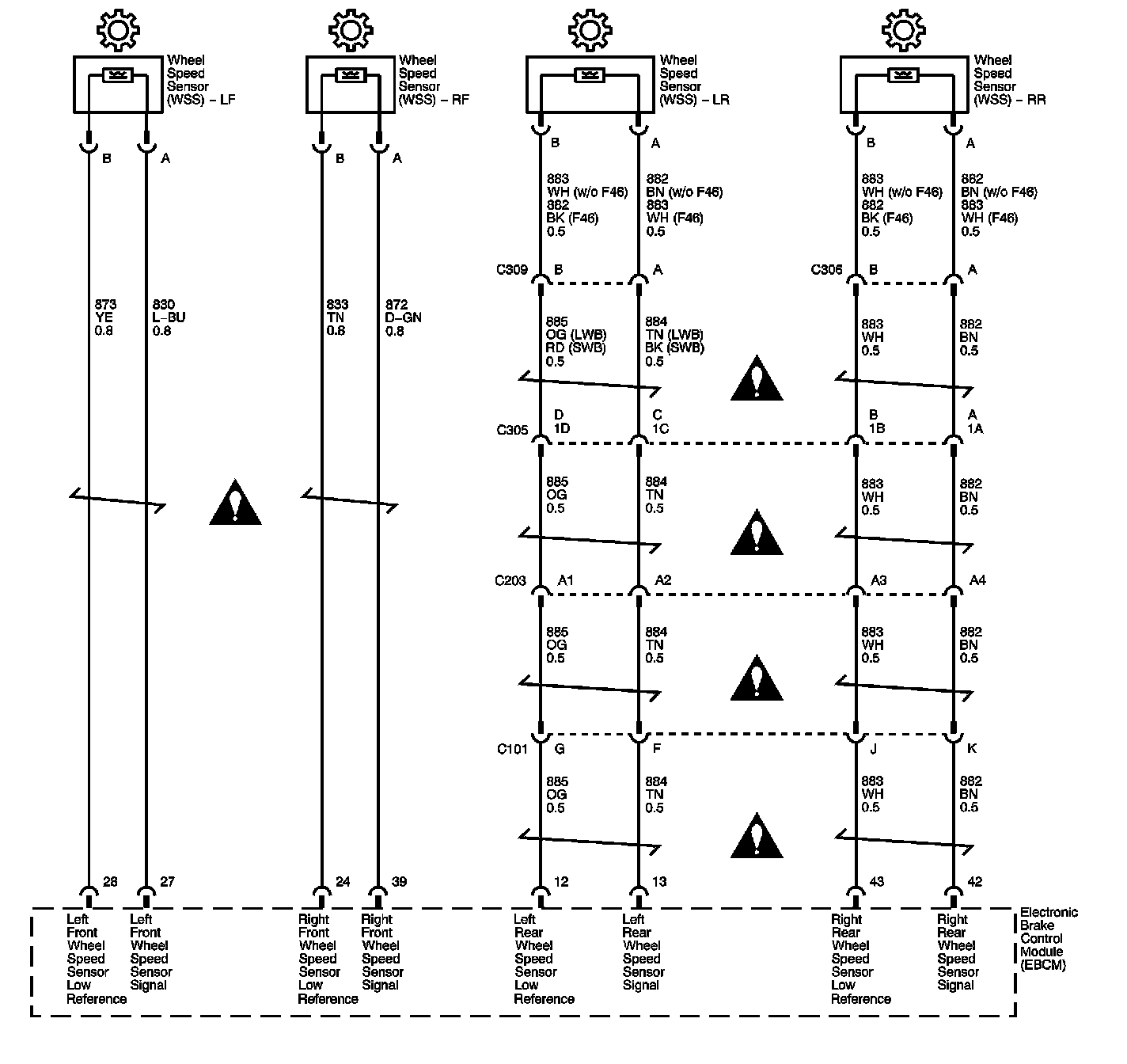

Wheel Speed Sensors:





Wheel Speed Sensors

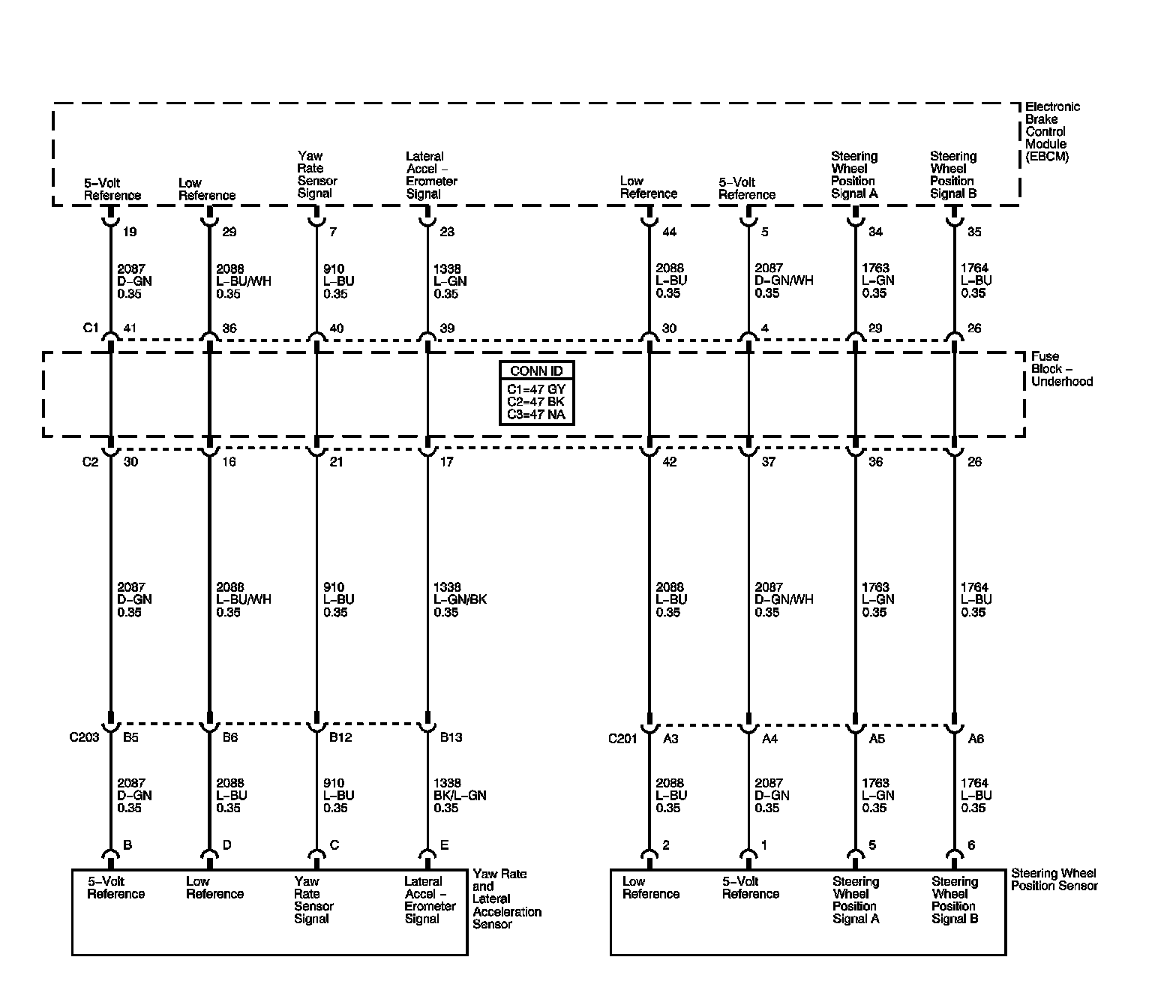

Stability Control Sensors - RPO JL4:





Stability Control Sensors - RPO JL4
