Transmission Mount Bracket Replacement - Left

Transmission Mount Bracket Replacement - Left (LY7)
Removal Procedure
1. Raise and support the vehicle. Refer to Vehicle Lifting.
2. Remove the right front tire and wheel.
3. Remove the right engine splash shield.
4. Remove the transfer case brace.

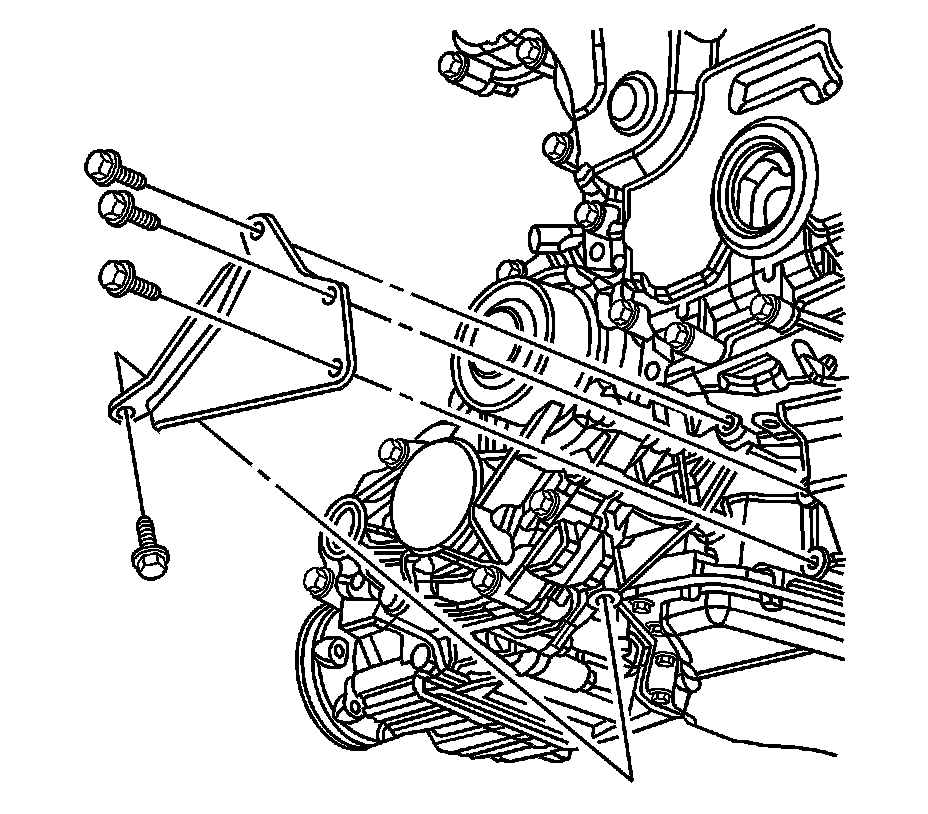

5. Remove the transmission lower brace bolts.
6. Remove the transmission lower brace.
7. If you are servicing the transmission upper brace, perform the following steps.





8. Remove the transmission upper brace nut located behind the power steering pump.
9. Disconnect the intermediate steering shaft from the steering gear.
10. Raise and support the vehicle. Refer to Vehicle Lifting.





11. Use a utility stand in order to support the center of the rear frame.
12. Remove only the two frame rear bolts.
13. Raise the vehicle or lower the powertrain in order to access the transmission upper brace.





14. Remove the transmission upper brace bolts.
15. Remove the transmission upper brace.

Installation Procedure





1. Install the transmission upper brace.

Notice:
Refer to Fastener Notice in Service Precautions.

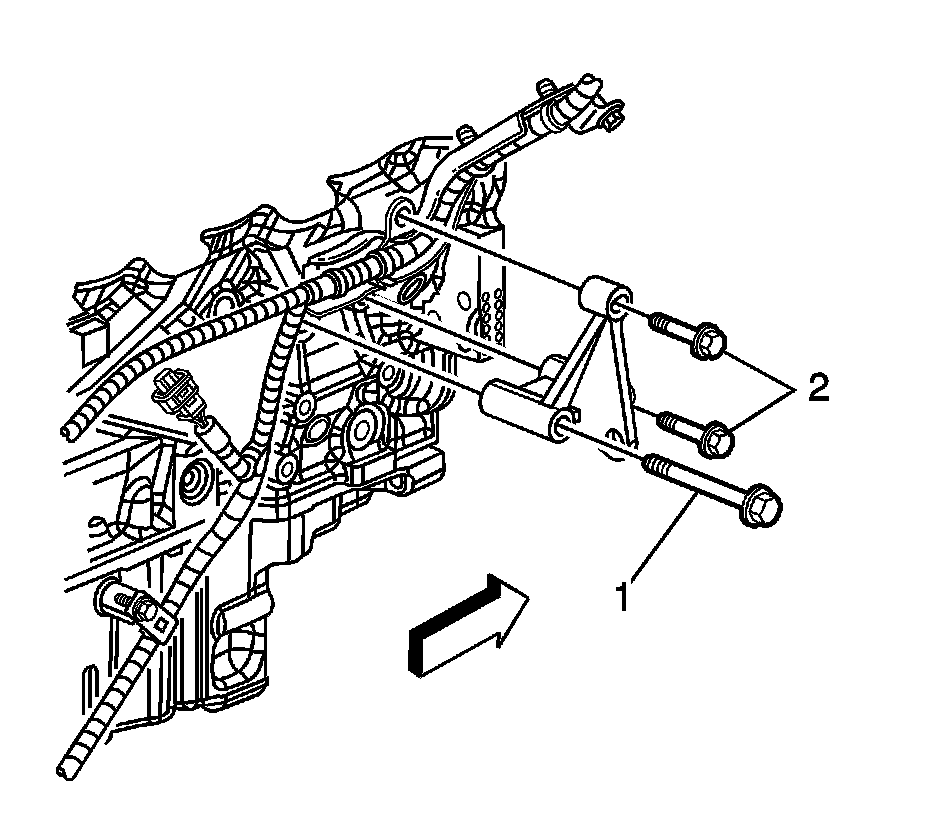

2. Install the transmission upper brace bolts.
Tighten the transmission upper brace outboard bolts (2) to 23 Nm (17 lb ft).
Tighten the transmission upper brace inboard bolt (1) to 50 Nm (37 lb ft).
3. Lower the vehicle or raise the powertrain until the frame insulators contact the chassis.
4. Install the two frame rear bolts.
5. Connect the intermediate steering shaft to the steering gear.





6. Install the transmission upper brace nut located behind the power steering pump.
Tighten the transmission upper brace nut to 50 Nm (37 lb ft).





7. Install the transmission lower brace.
8. Install the transmission lower brace bolts.
Tighten the transmission lower brace bolts to 50 Nm (37 lb ft).
9. Install the transfer case brace.
10. Install the right engine splash shield.
11. Install the right front tire and wheel.
12. Lower the vehicle.
