Left Front
SEAT BELT RETRACTOR REPLACEMENT - LEFT FRONTREMOVAL PROCEDURE

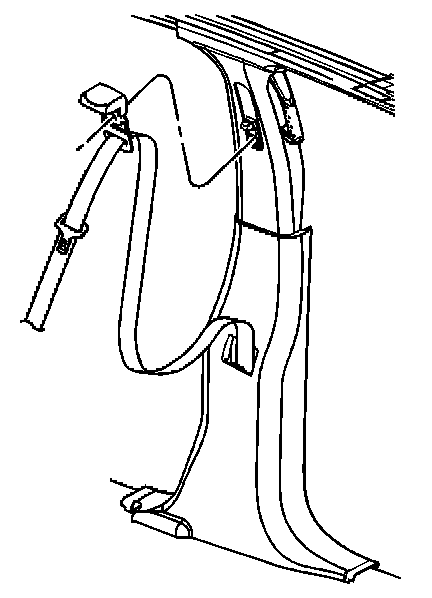

1. Remove the front bucket seat.

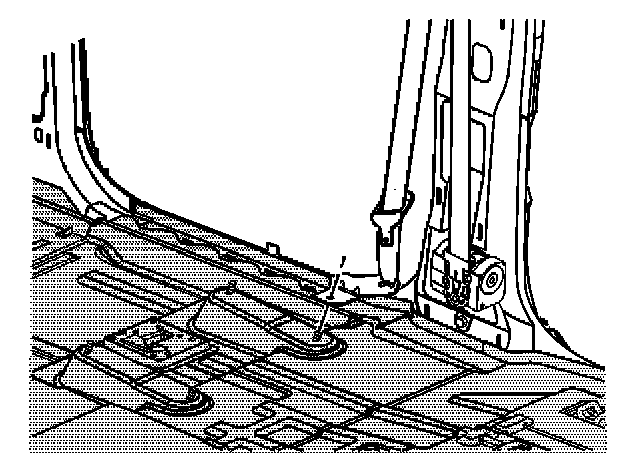

2. Remove the front seat belt anchor from the rear outboard front seat stud.
3. Open the seat belt guide loop cover.

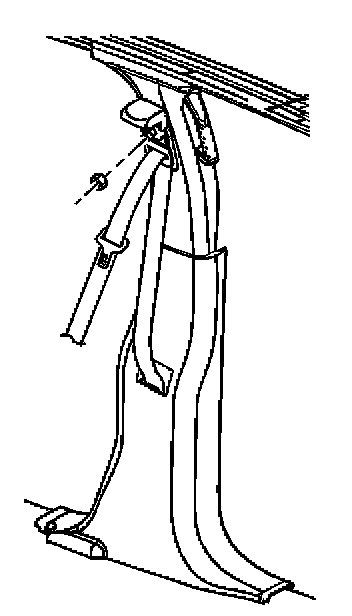

4. Remove the nut from seat belt guide loop.
5. Remove the seat belt guide loop from the guide adjuster bracket.
6. Remove the center pillar lower trim.

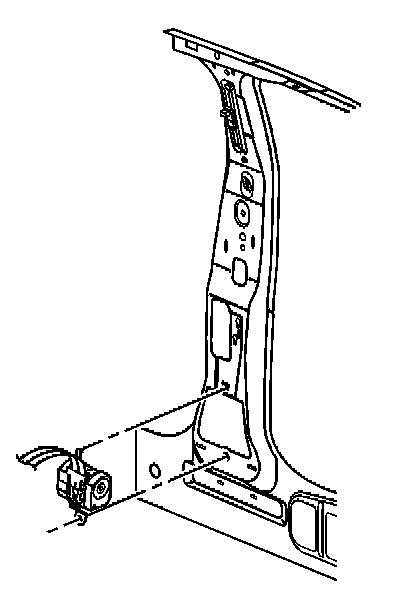

7. Remove the bolt from the seat belt retractor.
8. Remove the seat belt retractor from the center pillar.
9. Remove the front seat belt from the vehicle.
INSTALLATION PROCEDURE

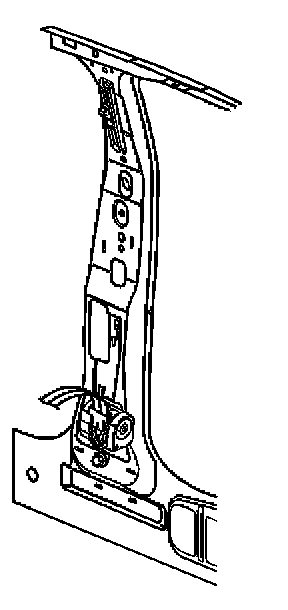

1. Install the seat belt retractor to the center pillar.
NOTE: Refer to Fastener Notice in Service Precautions.
2. Install the bolt to the seat belt retractor.
Tighten
Tighten the seat belt retractor bolt to 42 N.m (31 lb ft).
3. Install the center pillar lower trim.

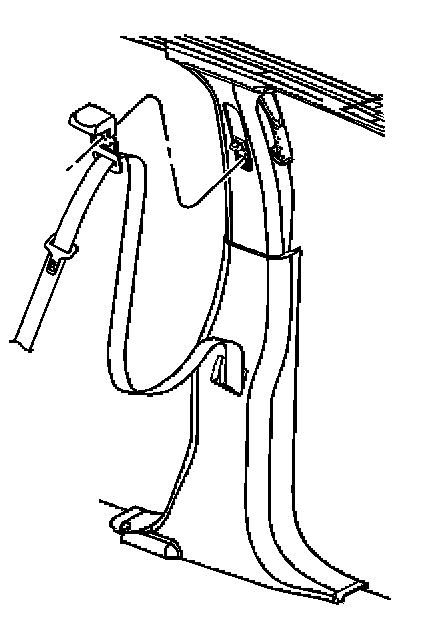

4. Place the seat belt guide loop to the guide adjuster bracket.

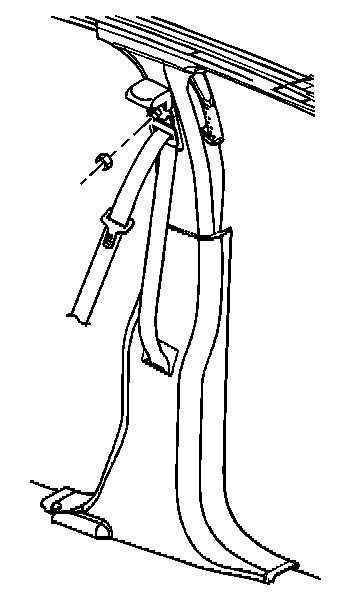

5. Install the nut to the seat belt guide loop.
Tighten
Tighten the seat belt guide loop nut to 42 N.m (31 lb ft).
6. Install the seat belt guide loop cover.

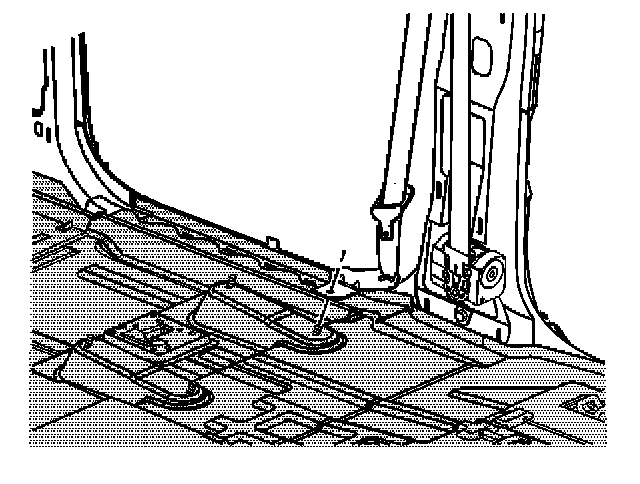

7. Place the front seat belt anchor plate to the front seat rear outboard stud.
8. Install the front bucket seat.
