Hose, Fuel Feed - Replacement

HOSE, FUEL FEED - REPLACEMENT

REMOVAL PROCEDURE
1. Turn the ignition OFF.
2. Remove the air inlet duct.
3. Relieve the fuel system pressure. Refer to Fuel Pressure Relief Procedure.
4. Remove the fuel pressure and evaporative emission (EVAP) hoses from the engine.




5. Remove the purge line from the purge line retainer.
6. Remove the throttle body.




7. Remove the fuel feed hose bracket bolt

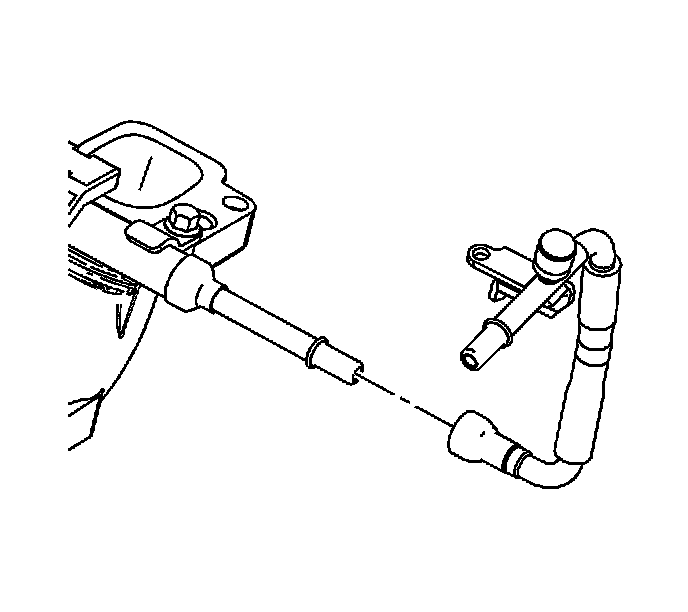

8. Use the Snap-On(R) ACT1370 Disconnect Set or equivalent to disconnect the fuel feed hose from the fuel rail.
9. Carefully remove the purge line retainer from the fuel feed hose bracket as necessary.

INSTALLATION PROCEDURE
1. Install the purge line retainer to the fuel feed hose bracket as necessary.




2. Install the fuel feed hose to the fuel rail




3. Install the fuel feed hose bracket and the fuel feed hose bracket bolt.

NOTE: Refer to Fastener Notice in Service Precaution

Tighten the fuel feed hose bracket bolt to 10 N.m (89 lb in).




4. Install the purge line to the purge line retainer.
5. Install the fuel pressure and EVAP hoses to the engine.
6. Install the air inlet duct.
