Evaporative Emission Control Canister: Service and Repair



EVAPORATIVE EMISSION (EVAP) CANISTER REPLACEMENT

REMOVAL PROCEDURE

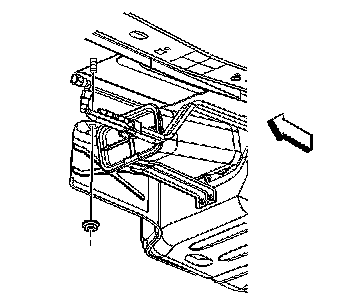

1. Remove the evaporative emission (EVAP) canister front bracket nut.

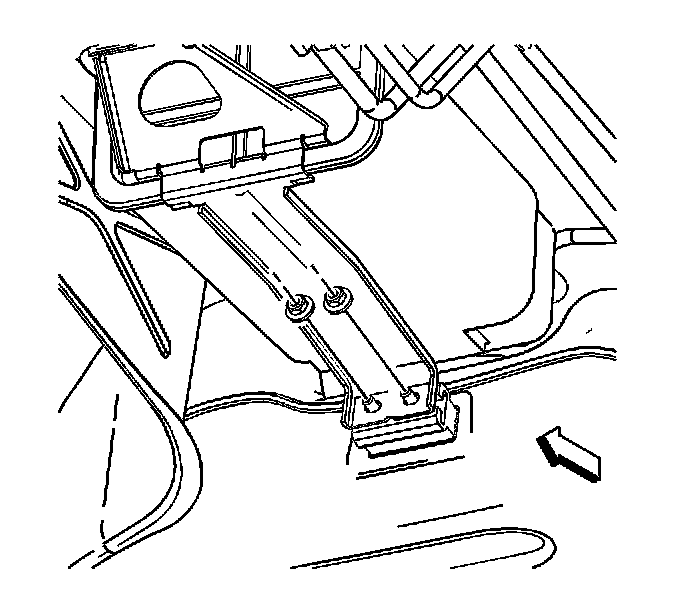

2. Remove the EVAP canister nuts and the EVAP canister bracket.

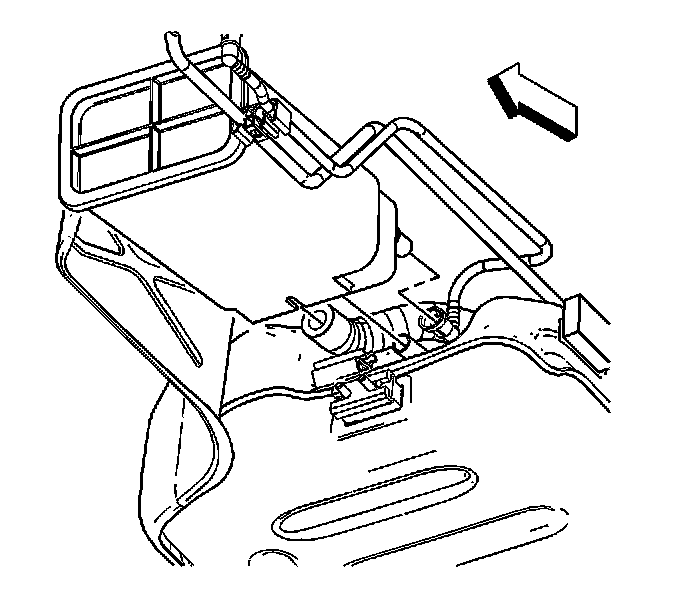

3. Reposition the EVAP canister and disconnect the EVAP hoses and/or pipes from the EVAP canister.
4. Remove the EVAP canister.

INSTALLATION PROCEDURE




1. Install the EVAP canister.
2. Connect the EVAP hoses/pipes to the EVAP canister.




3. Install the EVAP canister bracket and the EVAP canister nuts.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten the EVAP canister nuts to 10 N.m (89 lb in).




4. Install the EVAP canister bracket nut.

Tighten the EVAP canister bracket nut to 6 N.m (53 lb in).

5. Install the fuel tank
