Buick Truck
>>
2005
>>
Rendezvous AWD V6-3.6L VIN 7
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Differential Assembly
>>
Rear Drive Axle
Rear Drive Axle

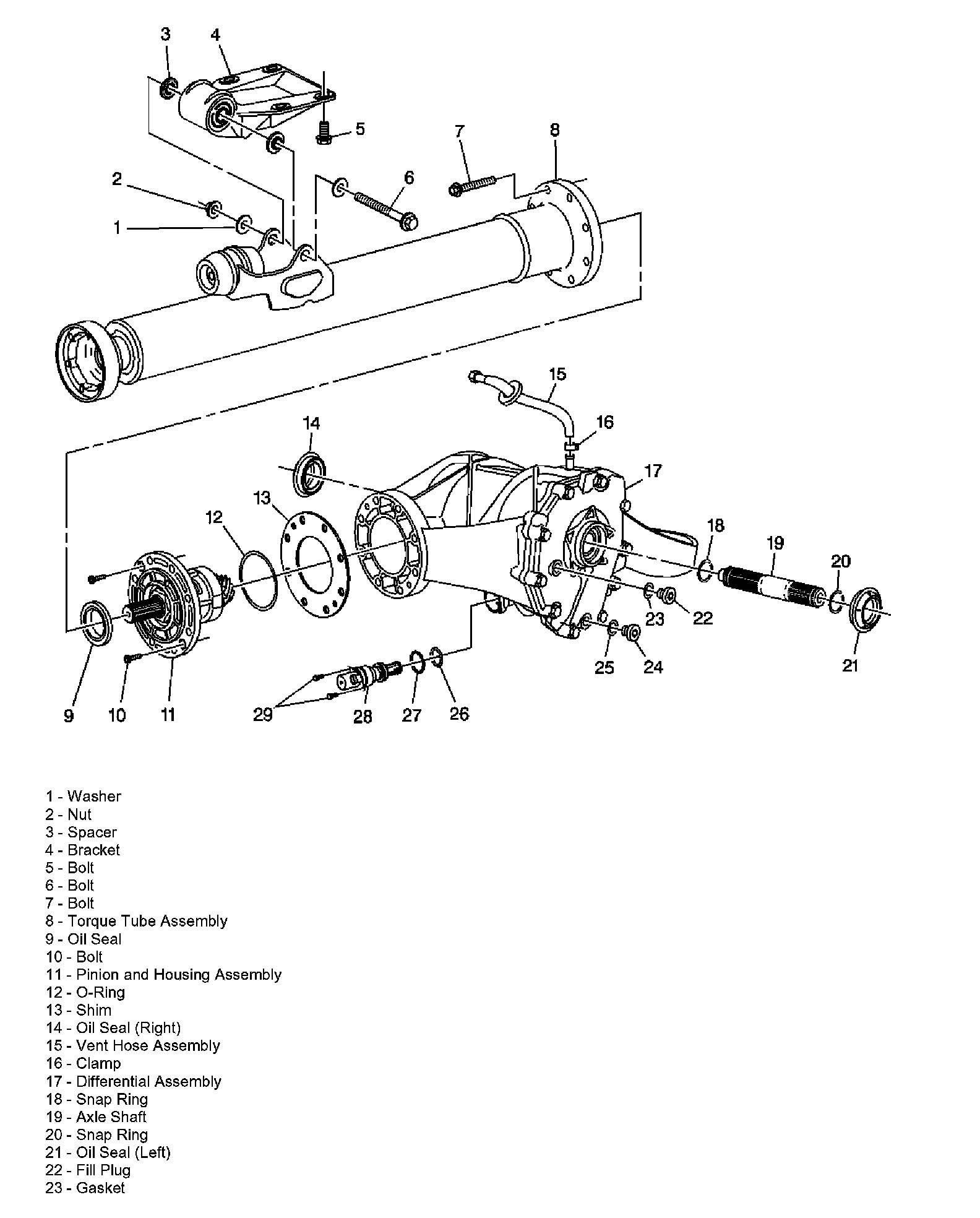

Differential Carrier Assembly Disassembled Views
Differential Assembly
