Home >> Buick Truck >> 2005 >> Rendezvous AWD V6-3.6L VIN 7 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Speaker >> Tweeter - RF Door

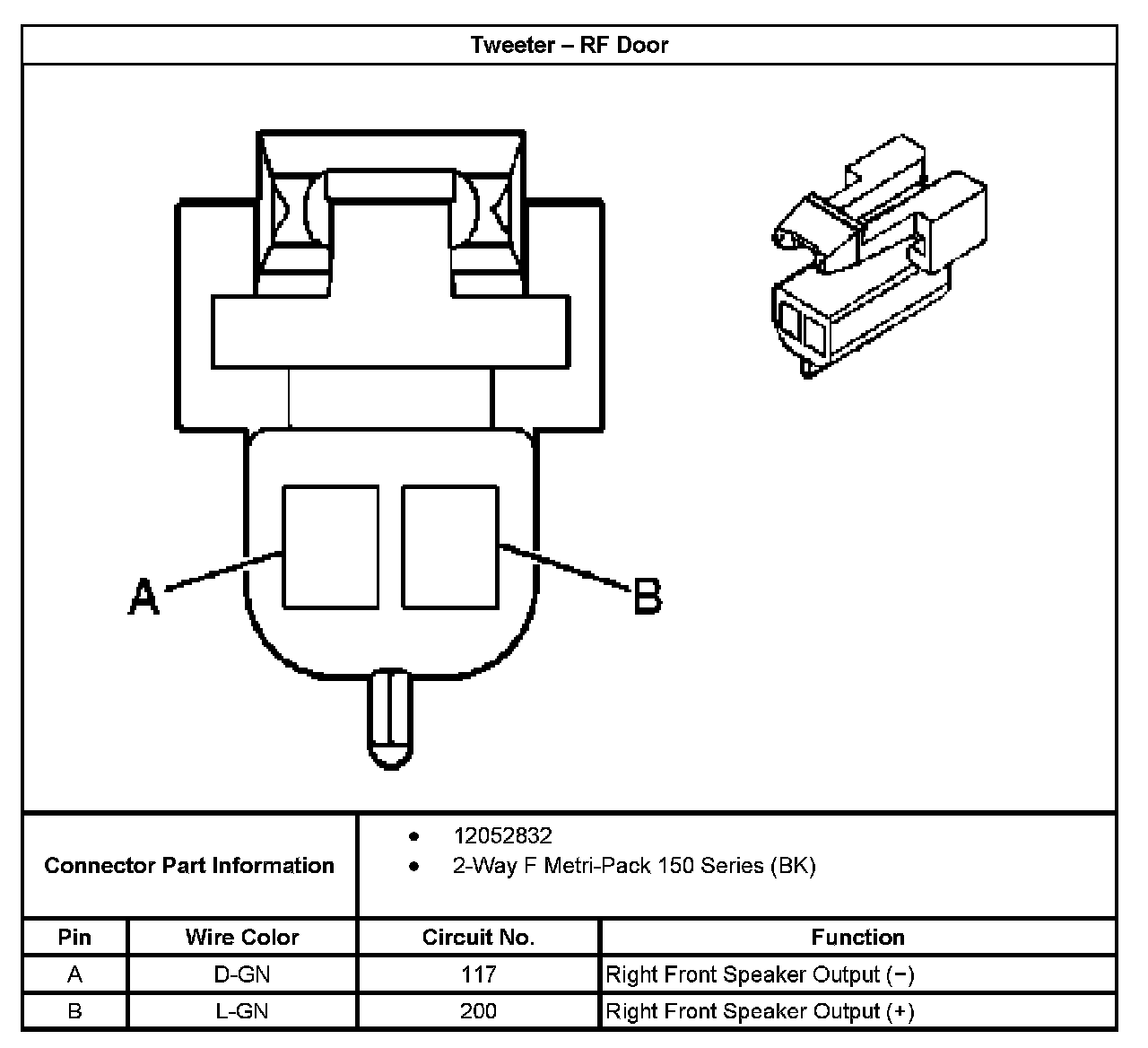

Tweeter - RF Door

Tweeter - RF Door:
