Buick Truck
>>
2005
>>
Rendezvous AWD V6-3.6L VIN 7
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Radiator Cooling Fan Motor
Radiator Cooling Fan Motor

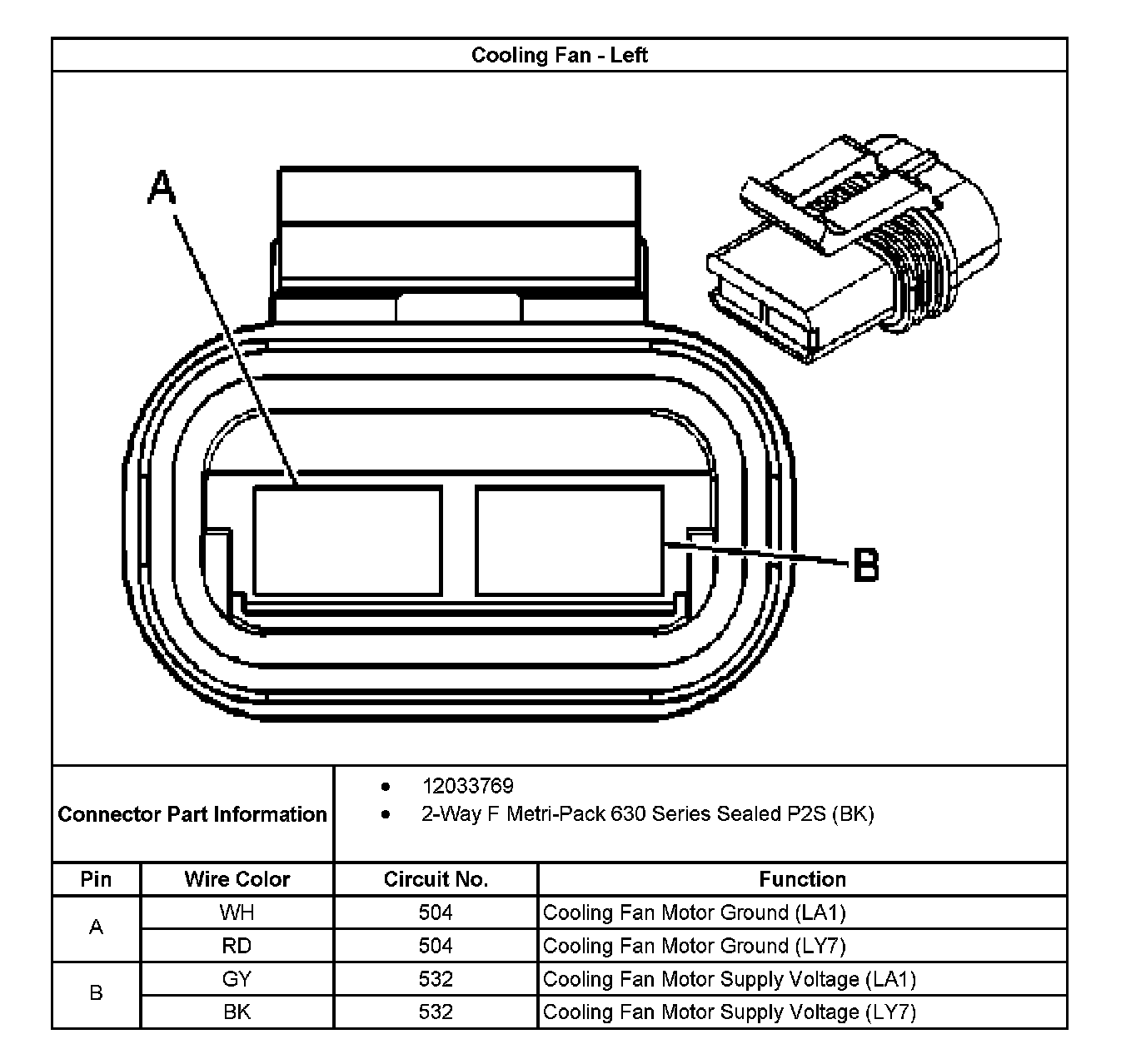

Cooling Fan - Left:

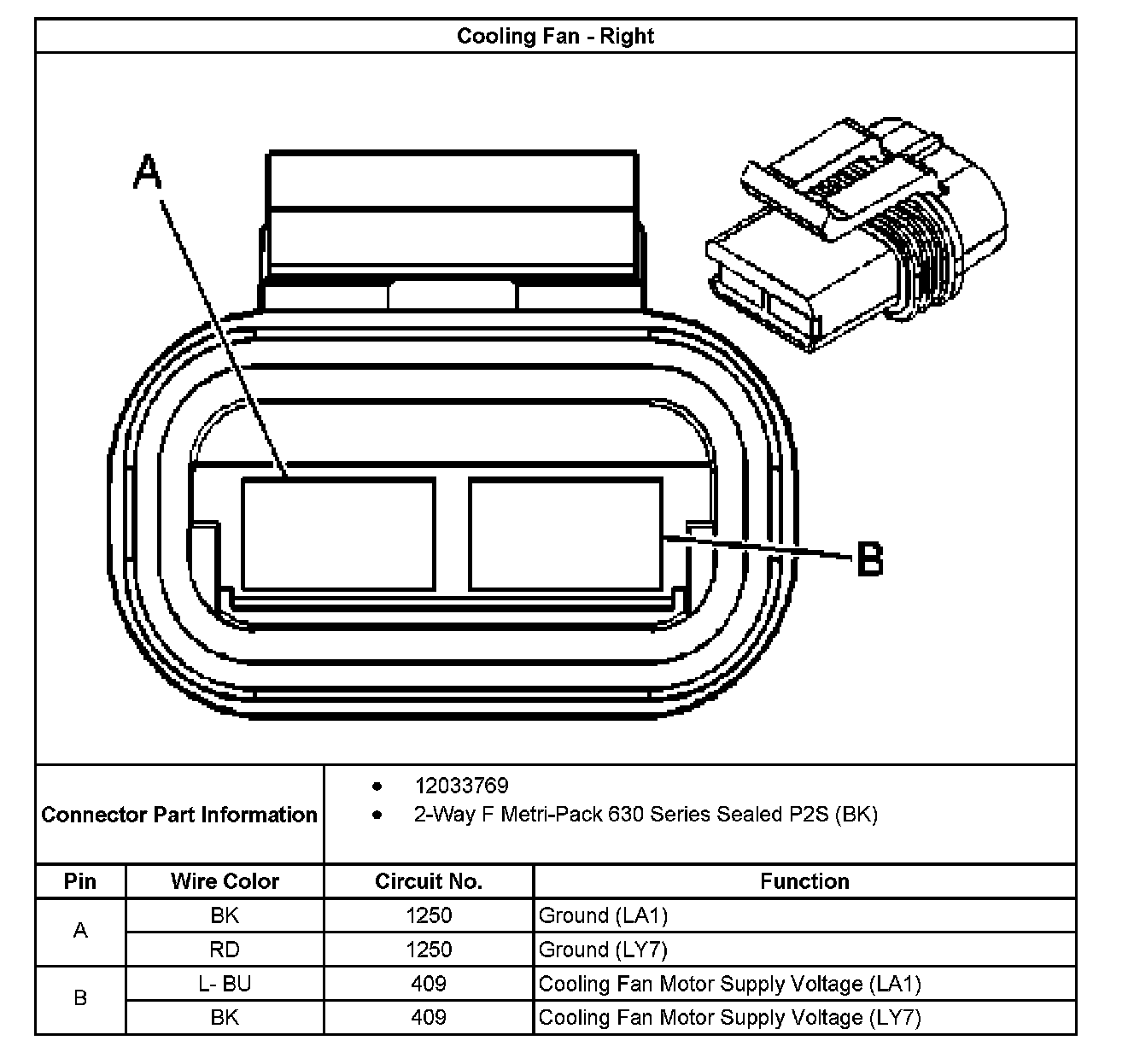

Cooling Fan - Right:
