Buick Truck
>>
2005
>>
Rendezvous AWD V6-3.6L VIN 7
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Heads Up Display Unit
>>
Head Up Display (HUD) (UH6)
Head Up Display (HUD) (UH6)

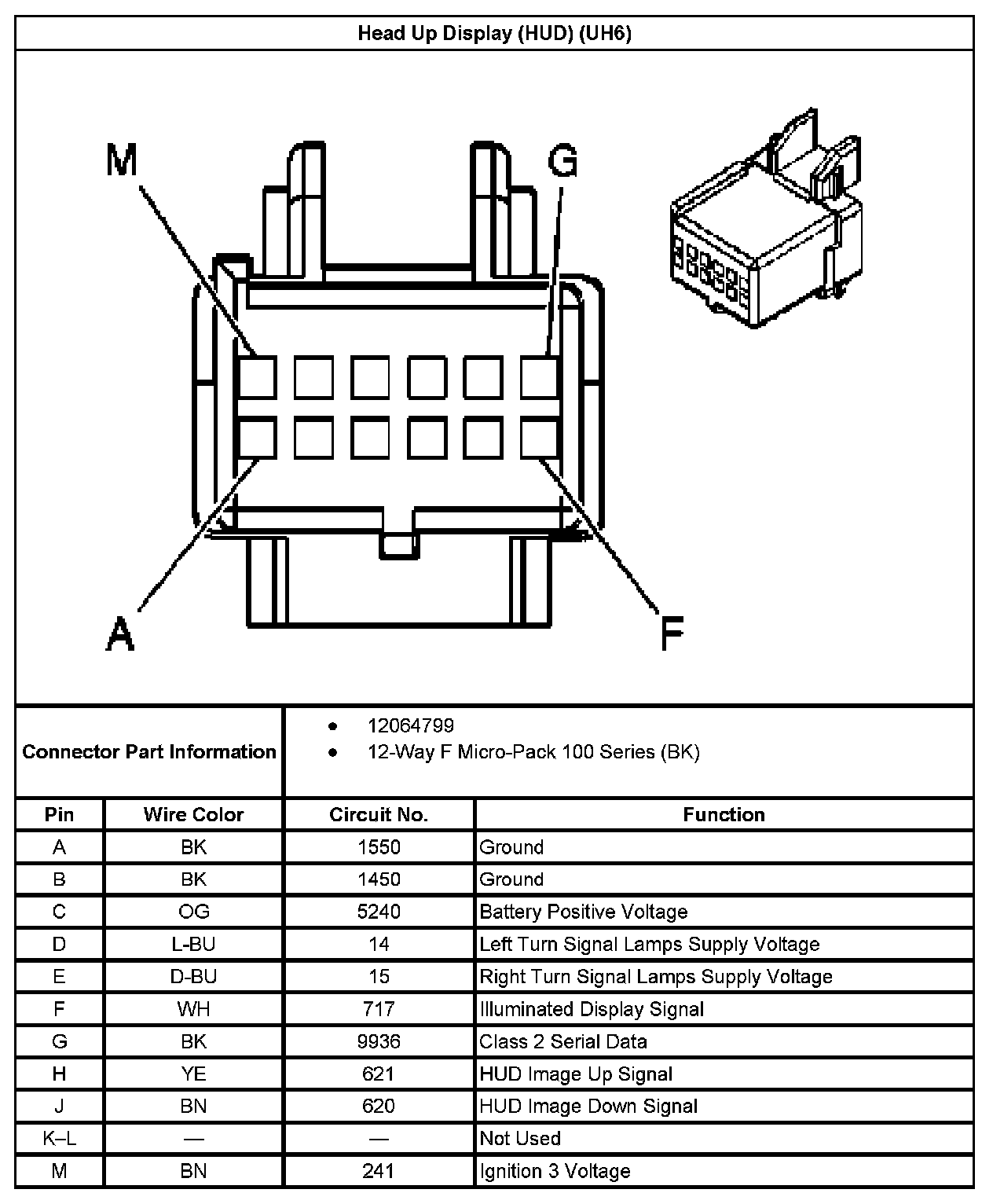

Head Up Display (HUD) (UH6):
