Switch, Driver's Door (Without KGM Body Gateway Module)
Switch, Driver's Door (Without KGM Body Gateway Module)

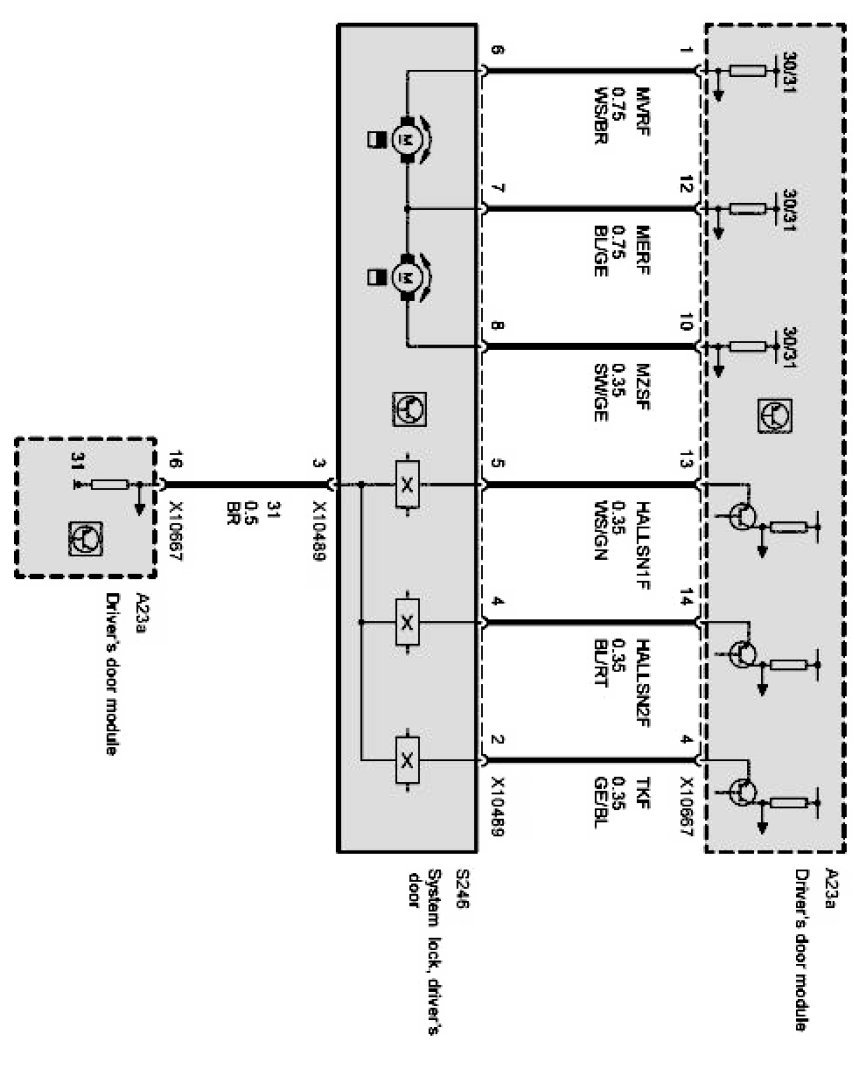

Central locking, driver's door:
