Home
>>
BMW
>>
2008
>>
M3 Convertible (E93) V8-4.0L (S65)
>>
Repair and Diagnosis
>>
Relays and Modules
>>
Relays and Modules - Body and Frame
>>
Convertible Top Control Module
>>
Diagrams
>>
Electrical Diagrams
>>

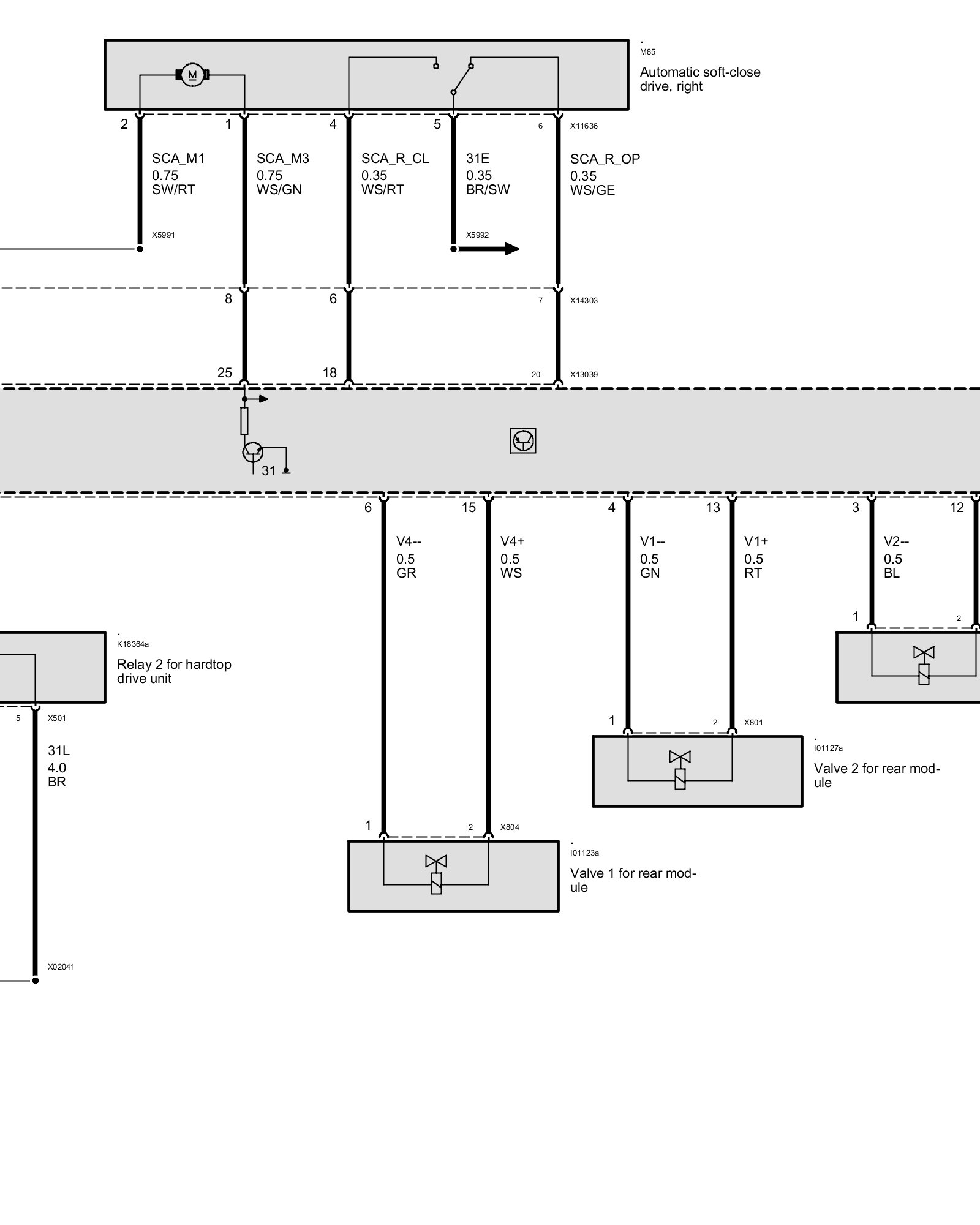

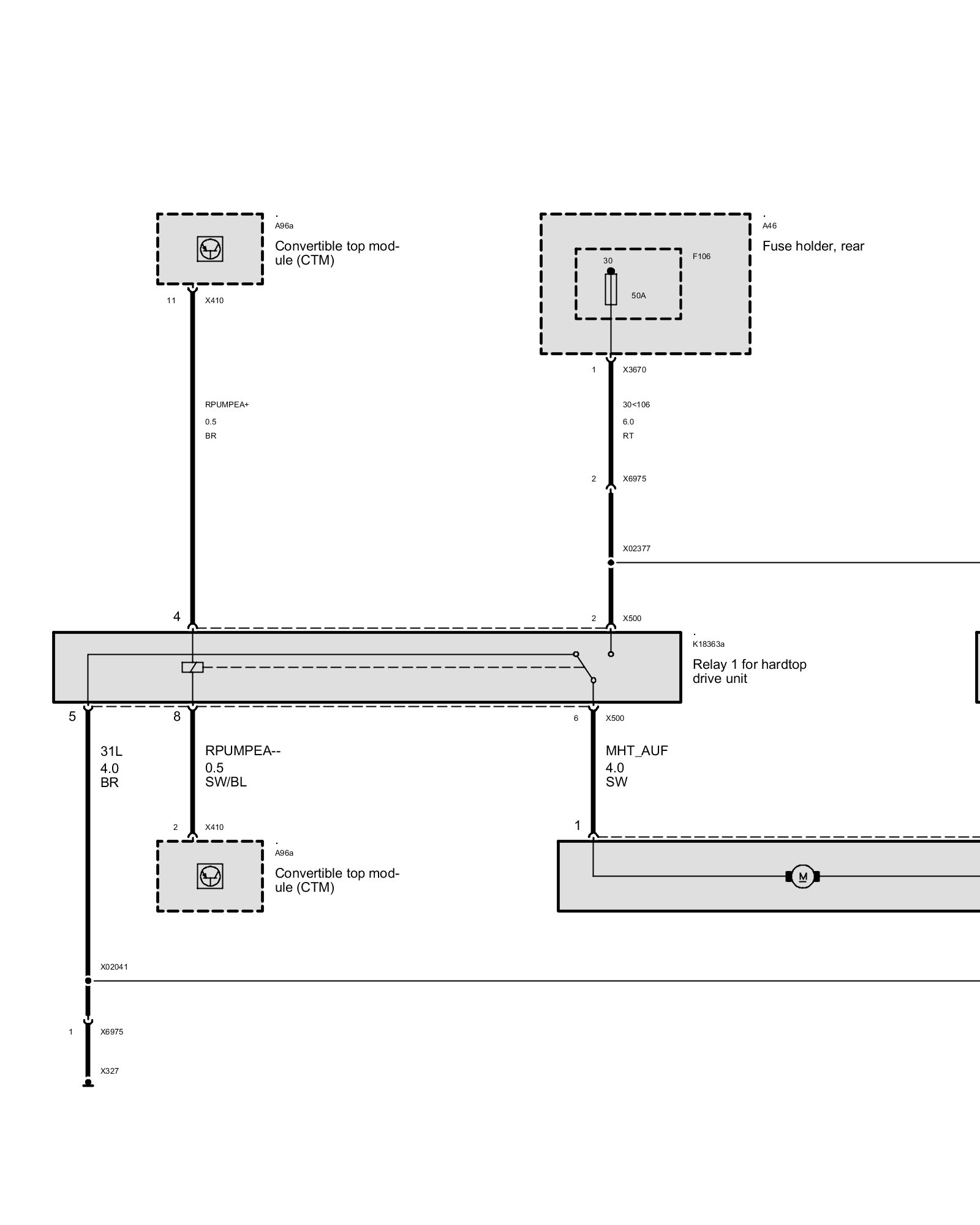

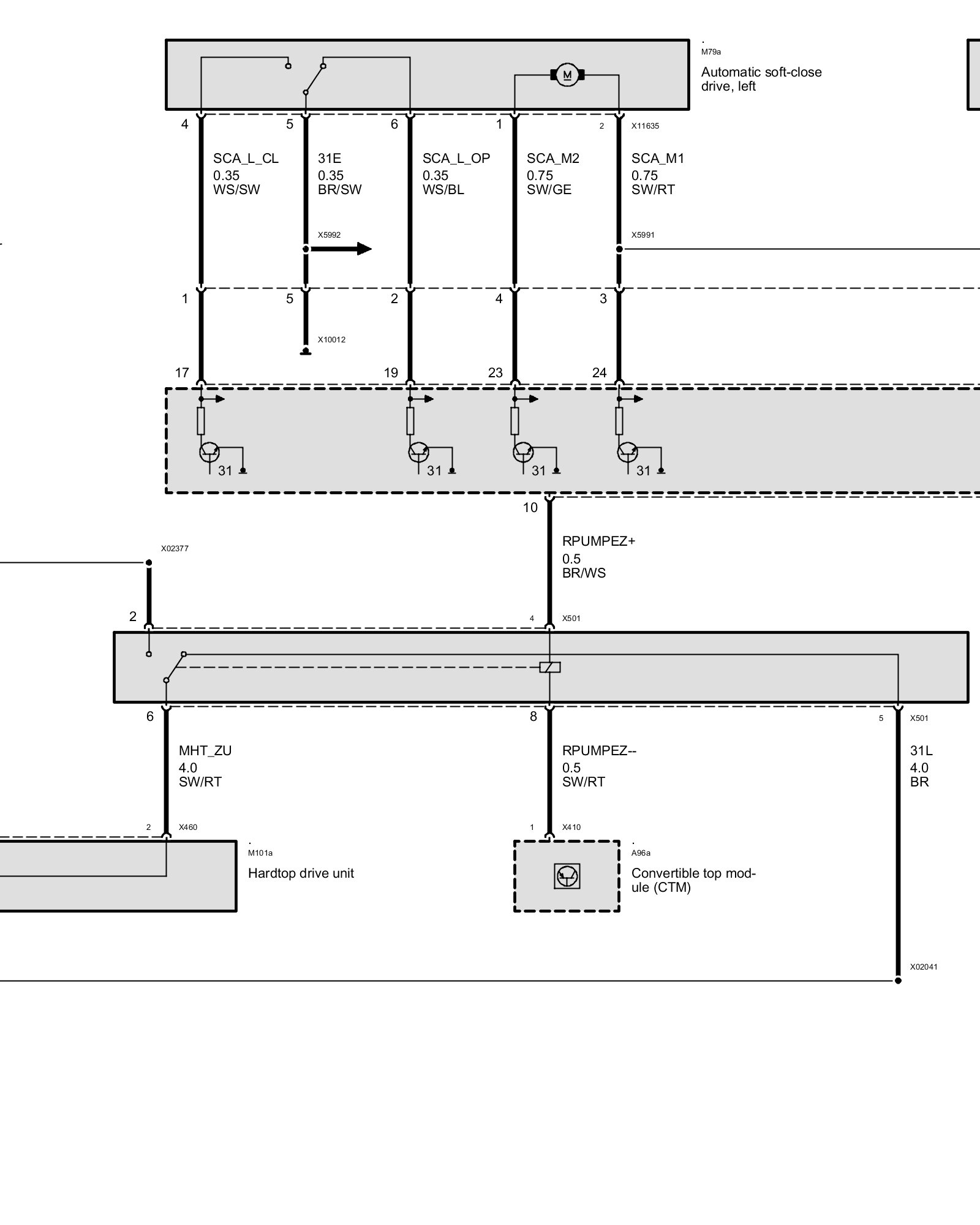

Outputs, Retractable Hardtop
Outputs, Retractable Hardtop
Outputs, Retractable Hardtop
