BMW
>>
2008
>>
M3 Convertible (E93) V8-4.0L (S65)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
System Diagram
>>

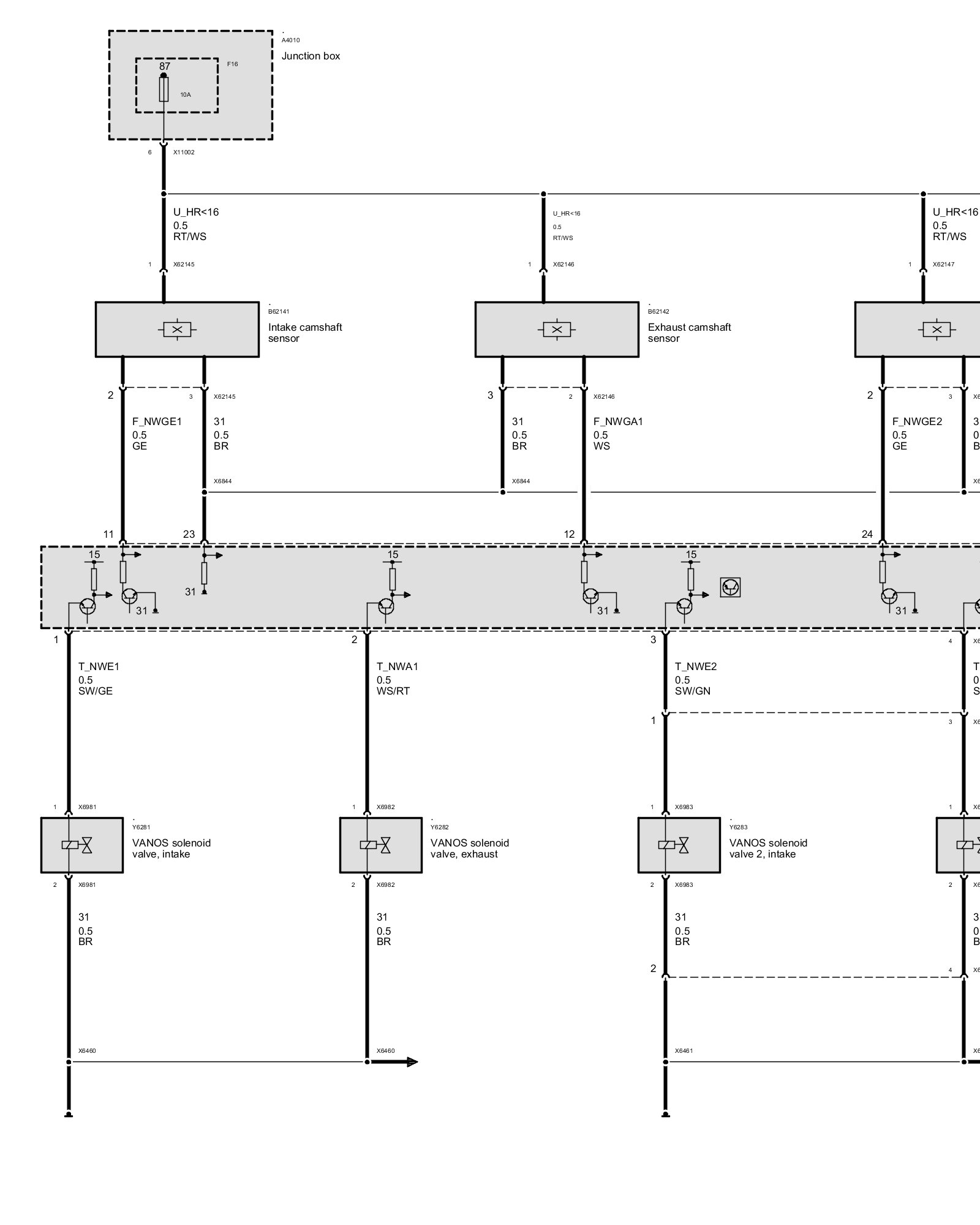

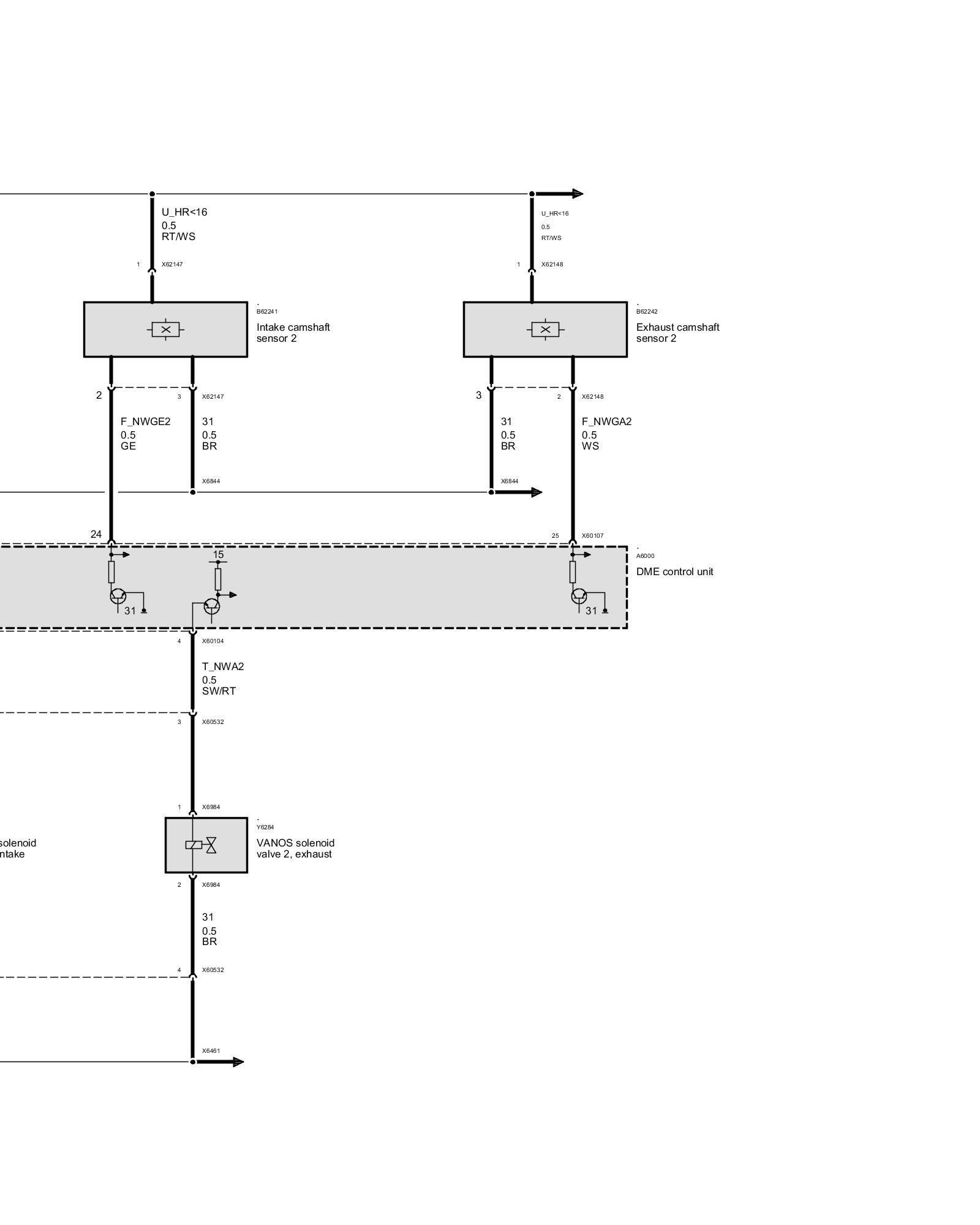

Valve Gear
Valve Gear
Valve Gear
Up to 09/07
As of 09/07
