Home
>>
BMW
>>
2008
>>
M3 Convertible (E93) V8-4.0L (S65)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
Computers and Control Systems
>>
Information Bus
>>

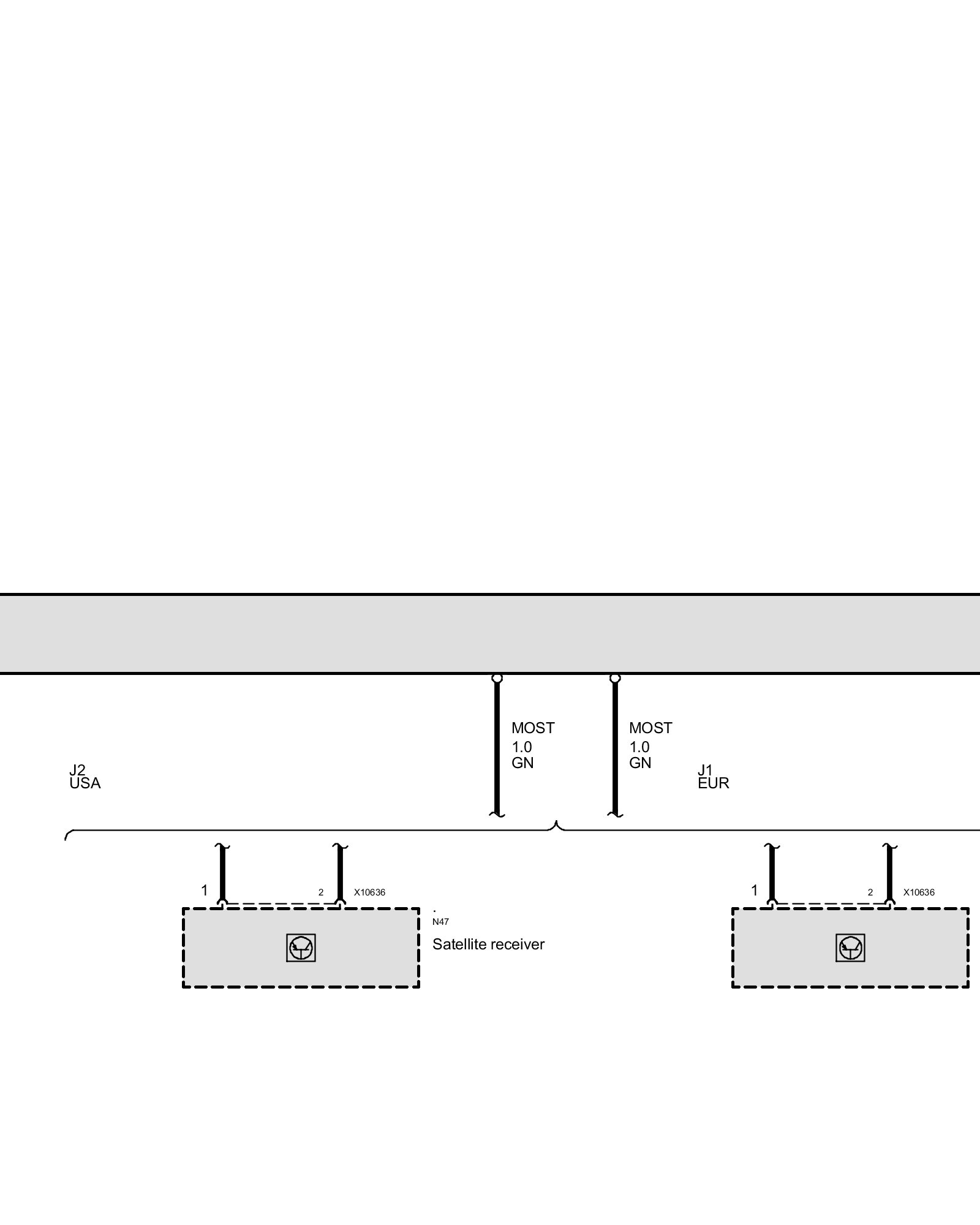

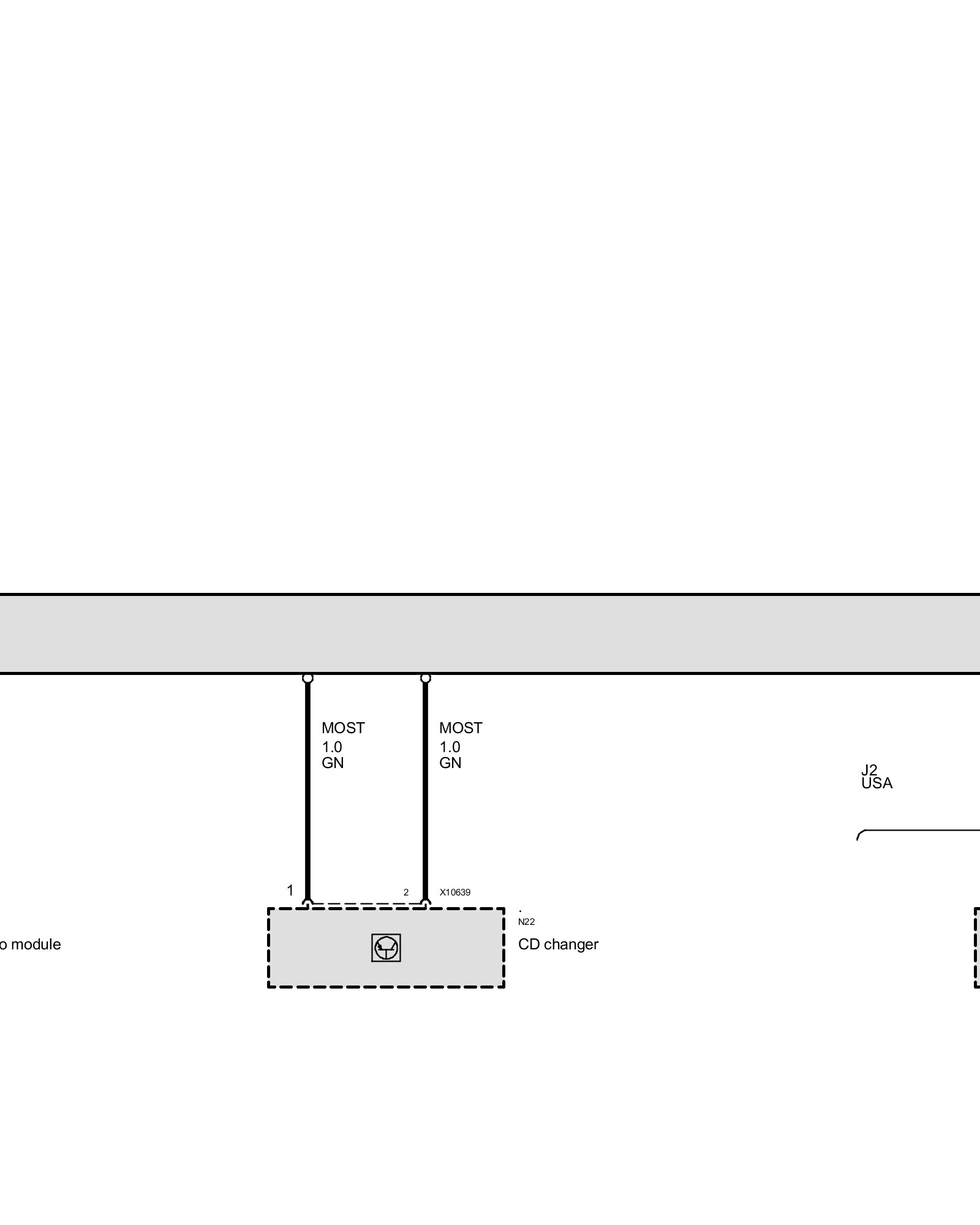

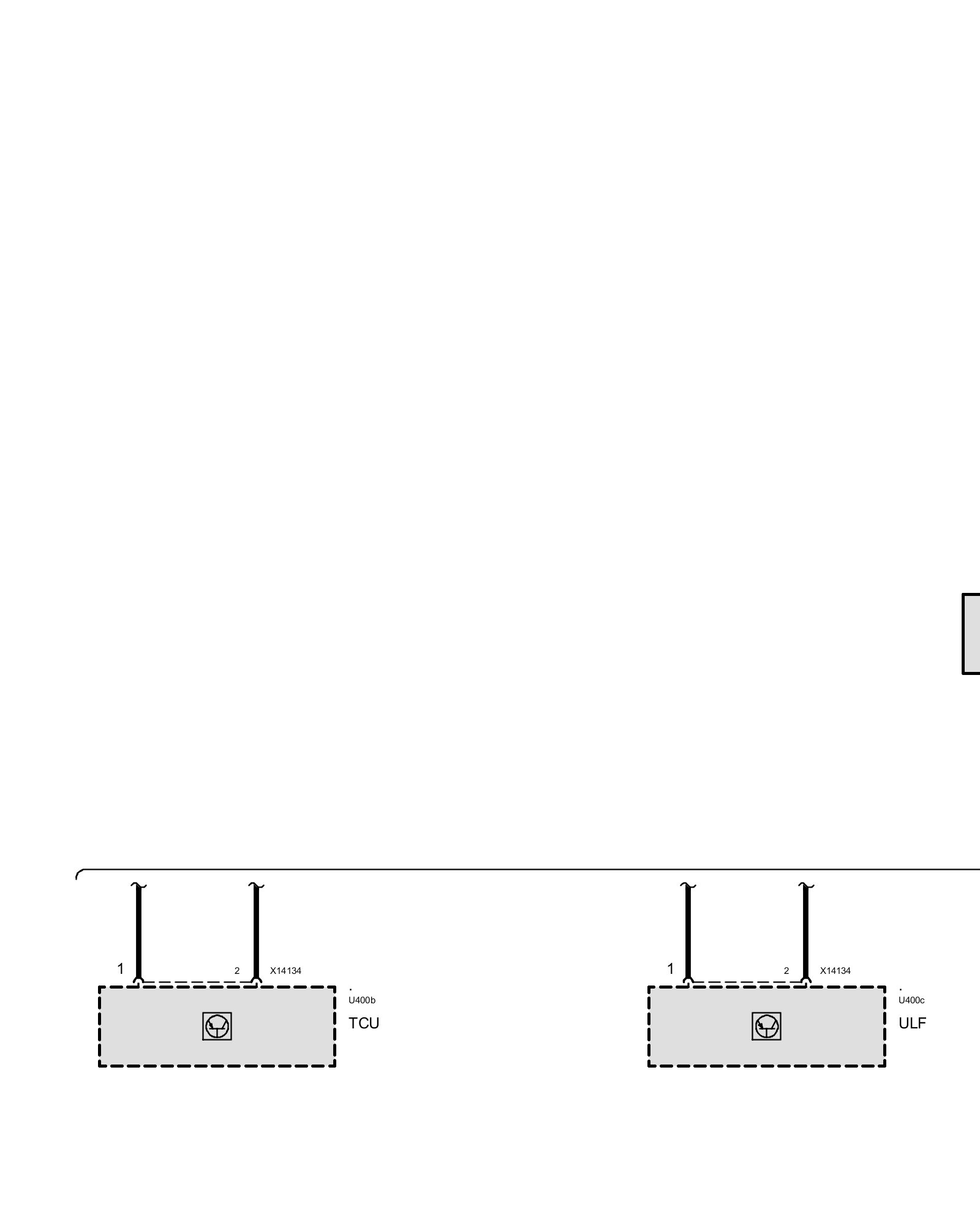

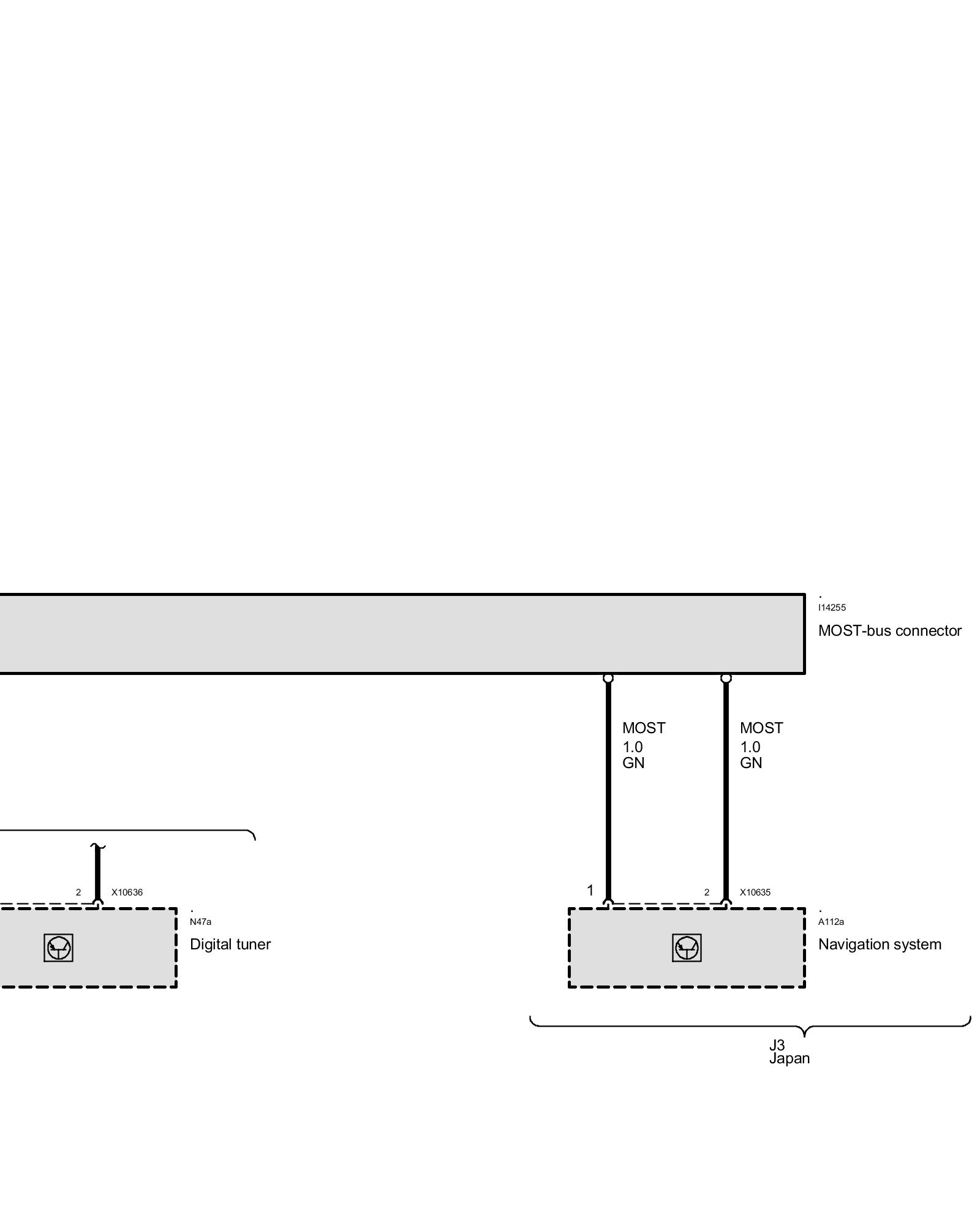

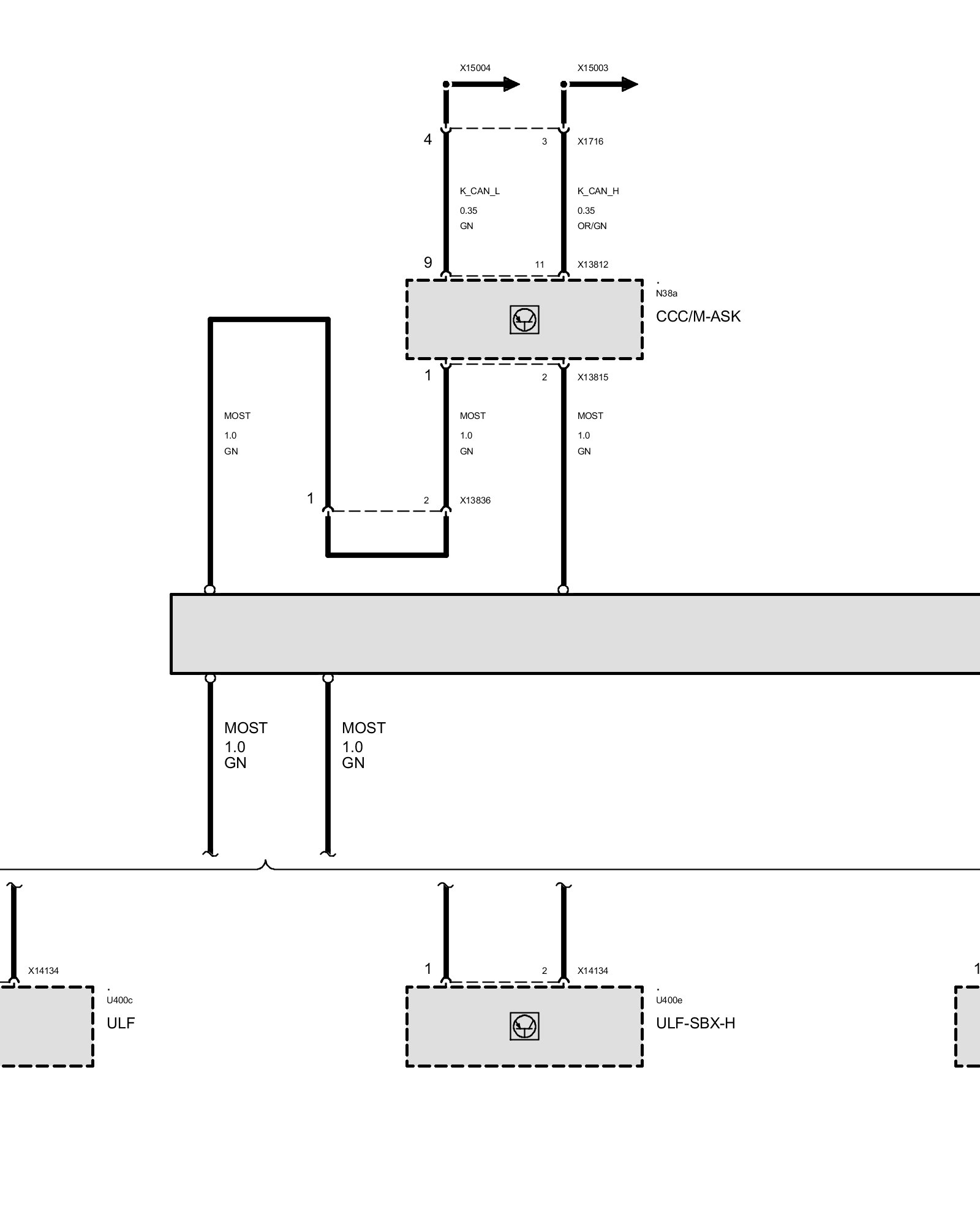

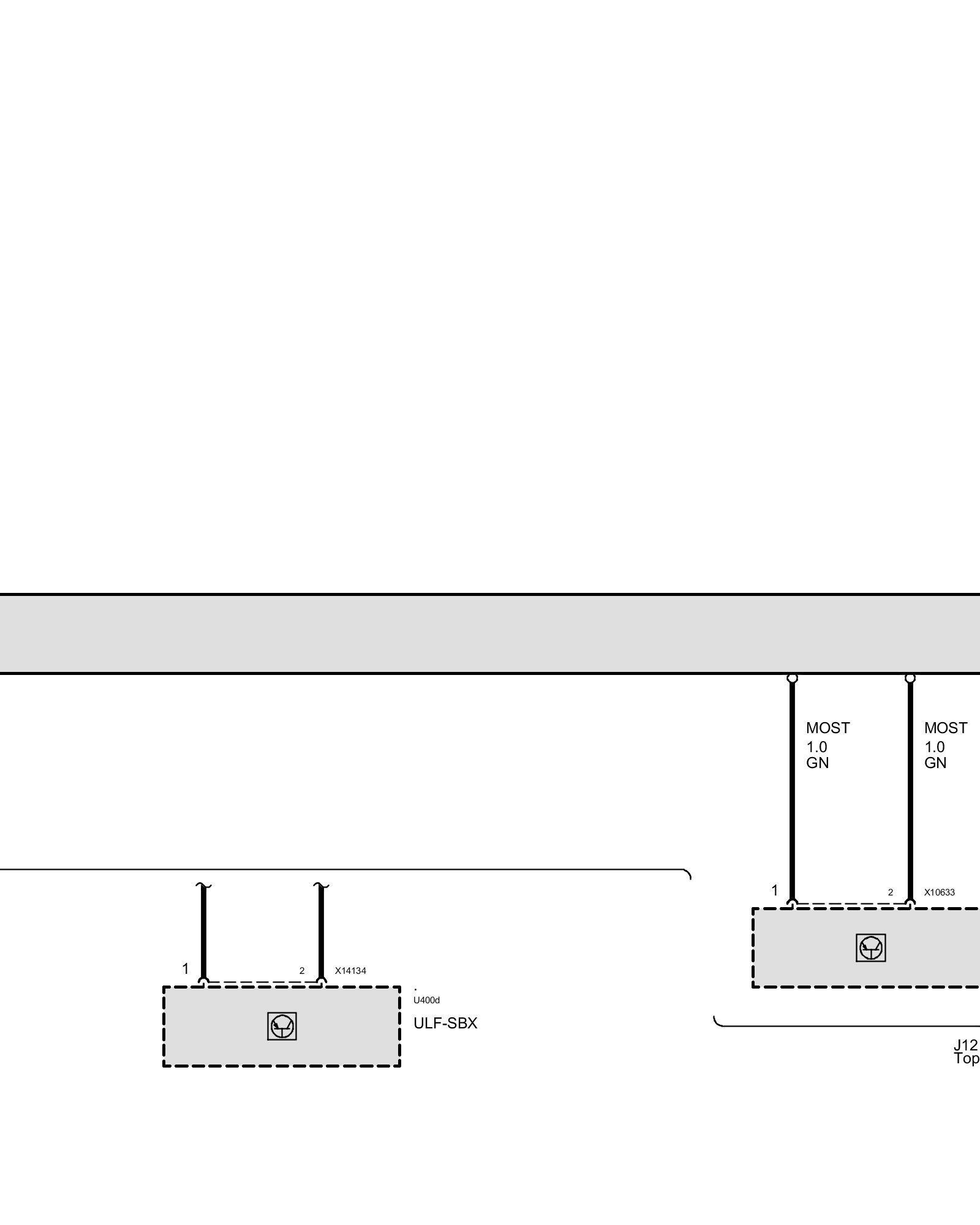

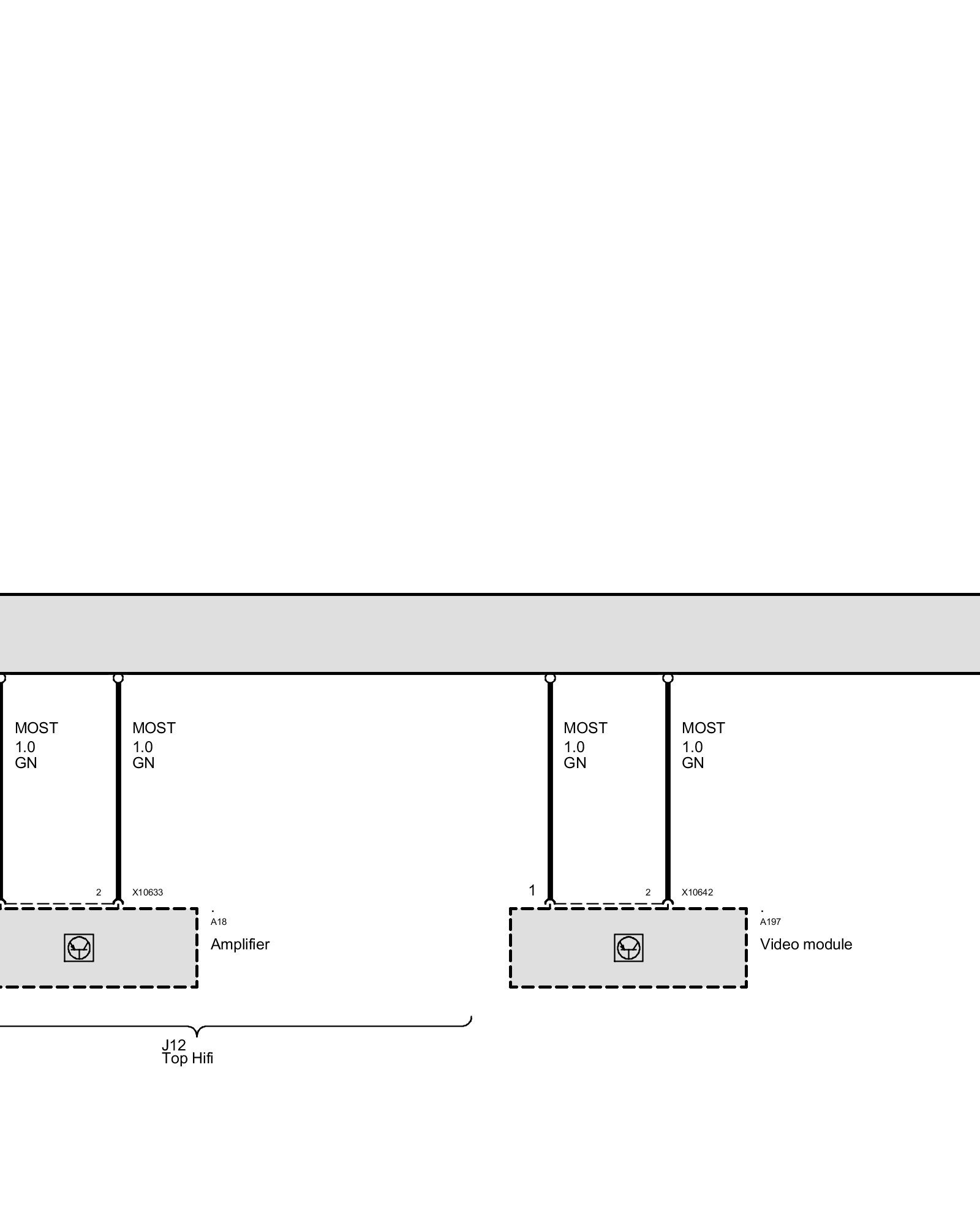

MOST-Bus Network (Without RAD Radio)
MOST-Bus Network (Without RAD Radio)
MOST-Bus Network
