Home
>>
BMW
>>
2008
>>
M3 Convertible (E93) V8-4.0L (S65)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power and Ground Distribution
>>
Auxiliary Power Outlet
>>

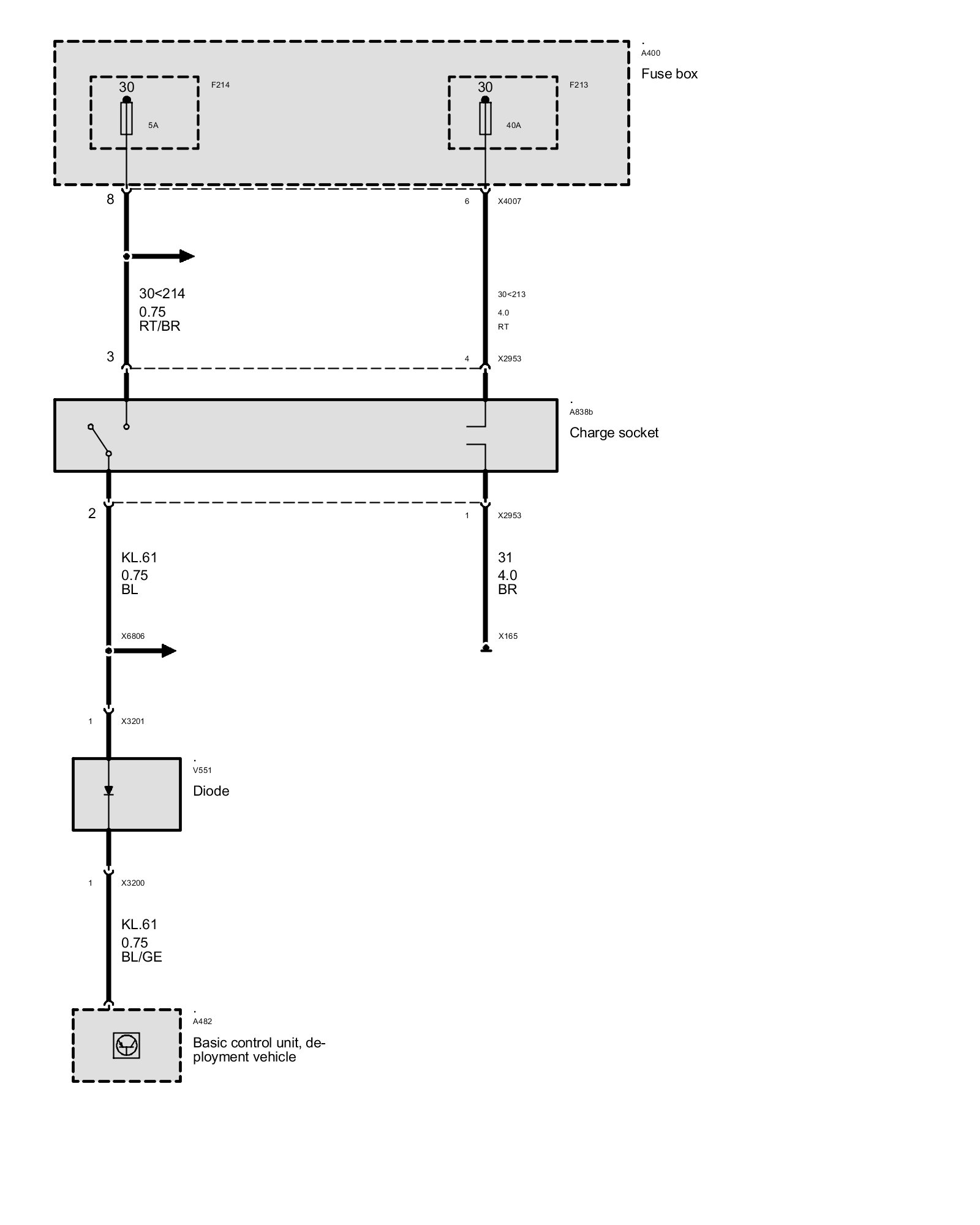

Charge Socket
Charge Socket
Charge Socket
