135i Coupe (E82) L6-3.0L Turbo (N54)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
System Diagram
>>

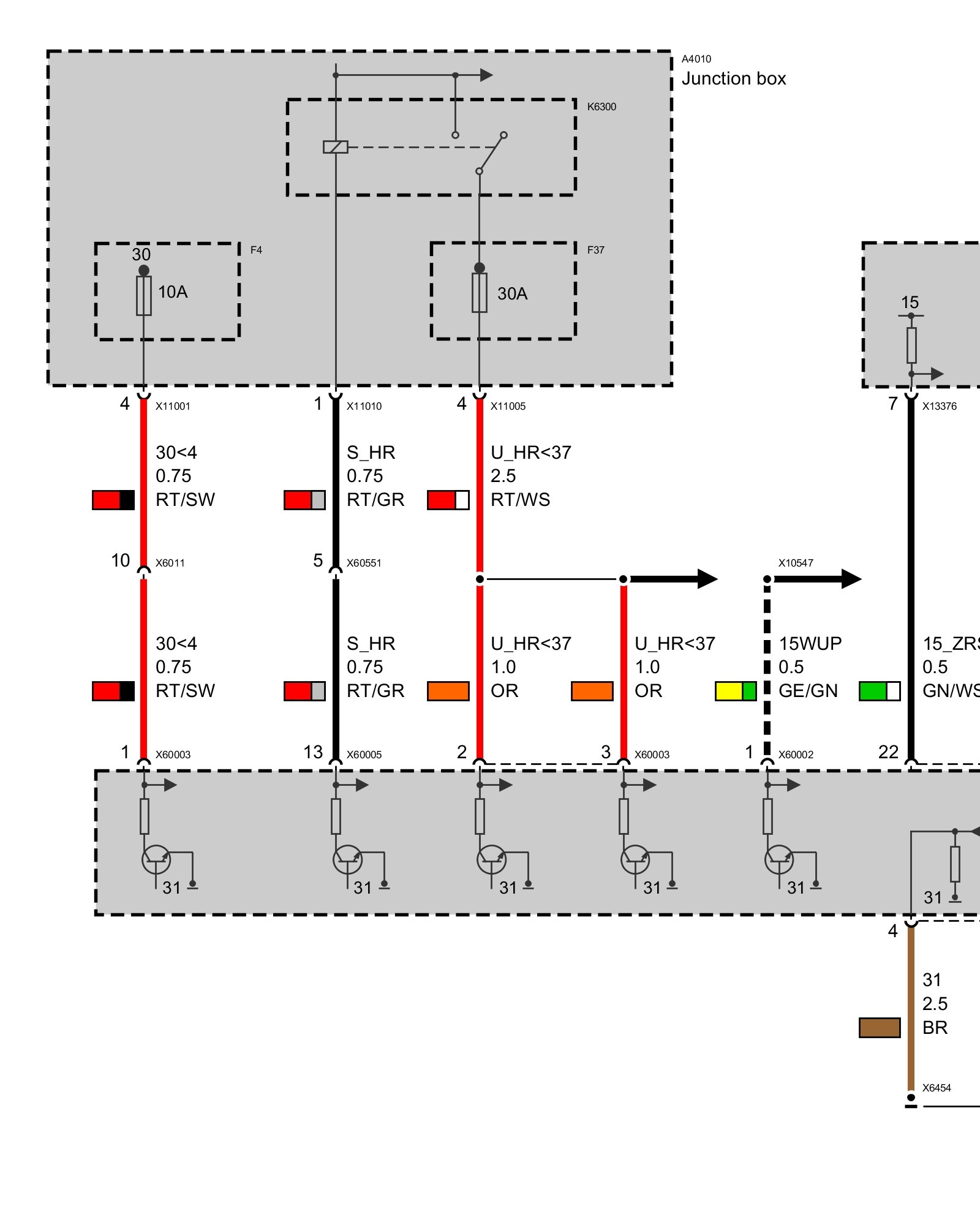

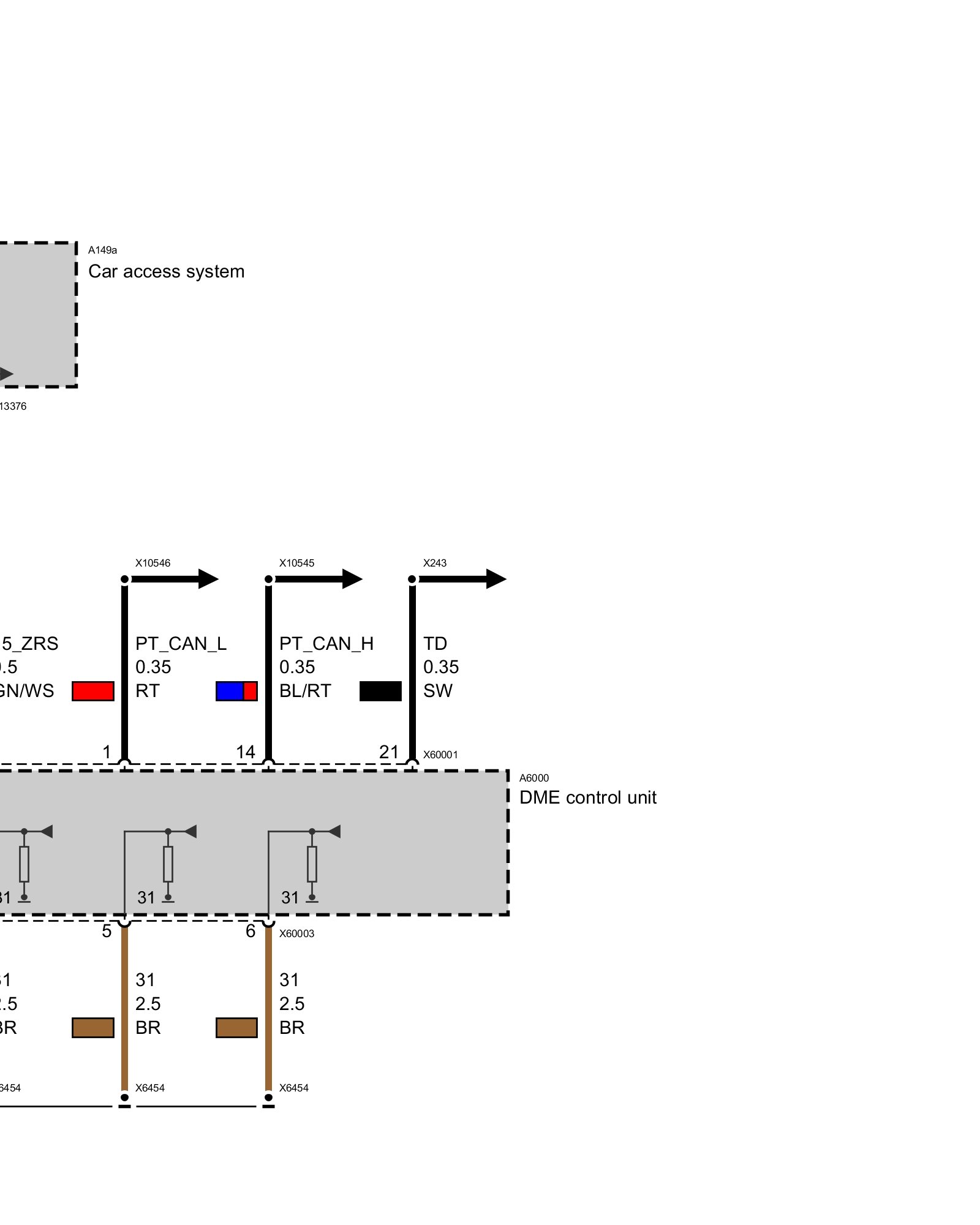

Supply, DME Control Unit
Supply, DME Control Unit
Supply, DME Control Unit
