System Diagram
>>

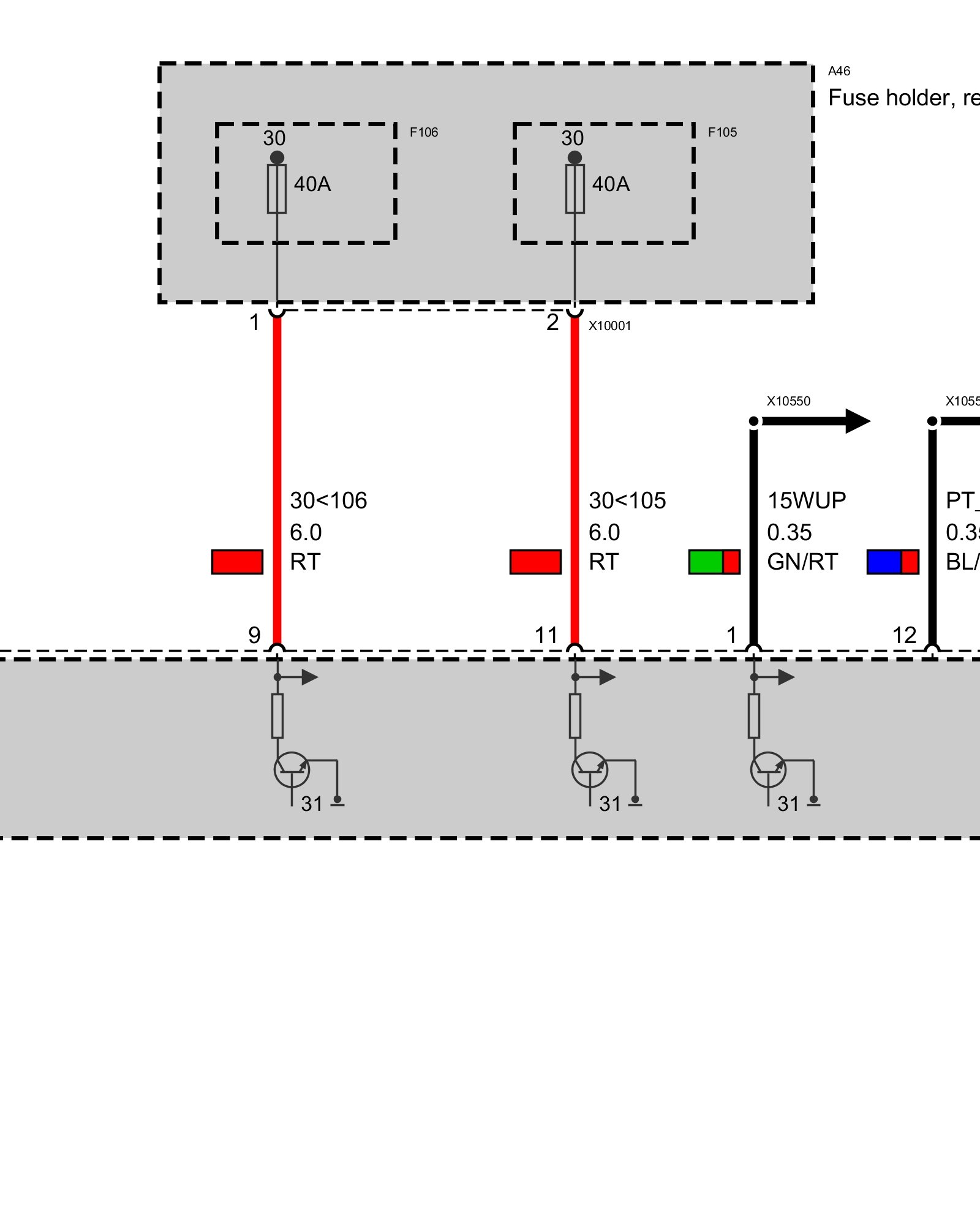

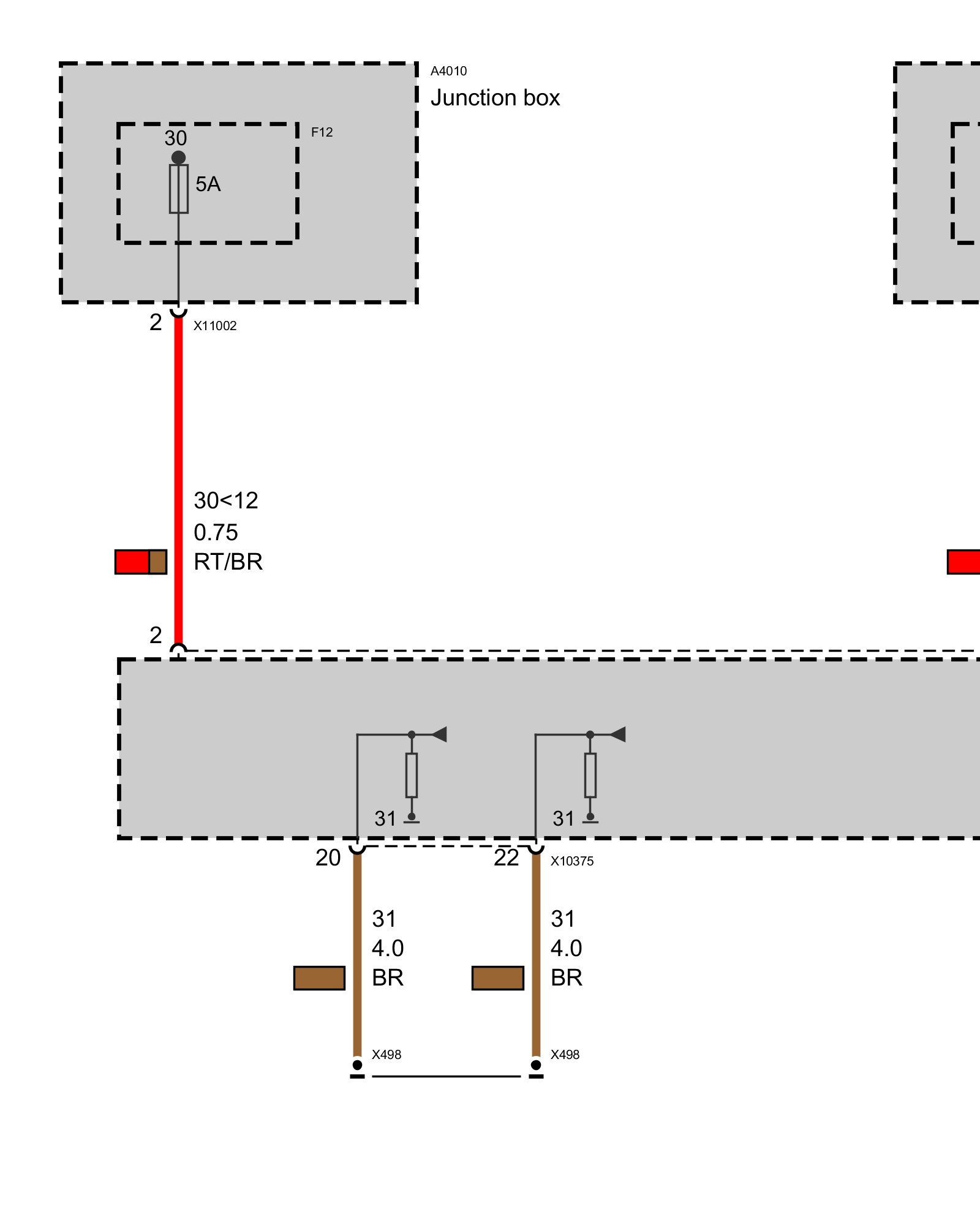

Supply, Parking-Brake Control Module
Supply, Parking-Brake Control Module
Supply, Parking-Brake Control Module
