Tire Monitoring System
>>

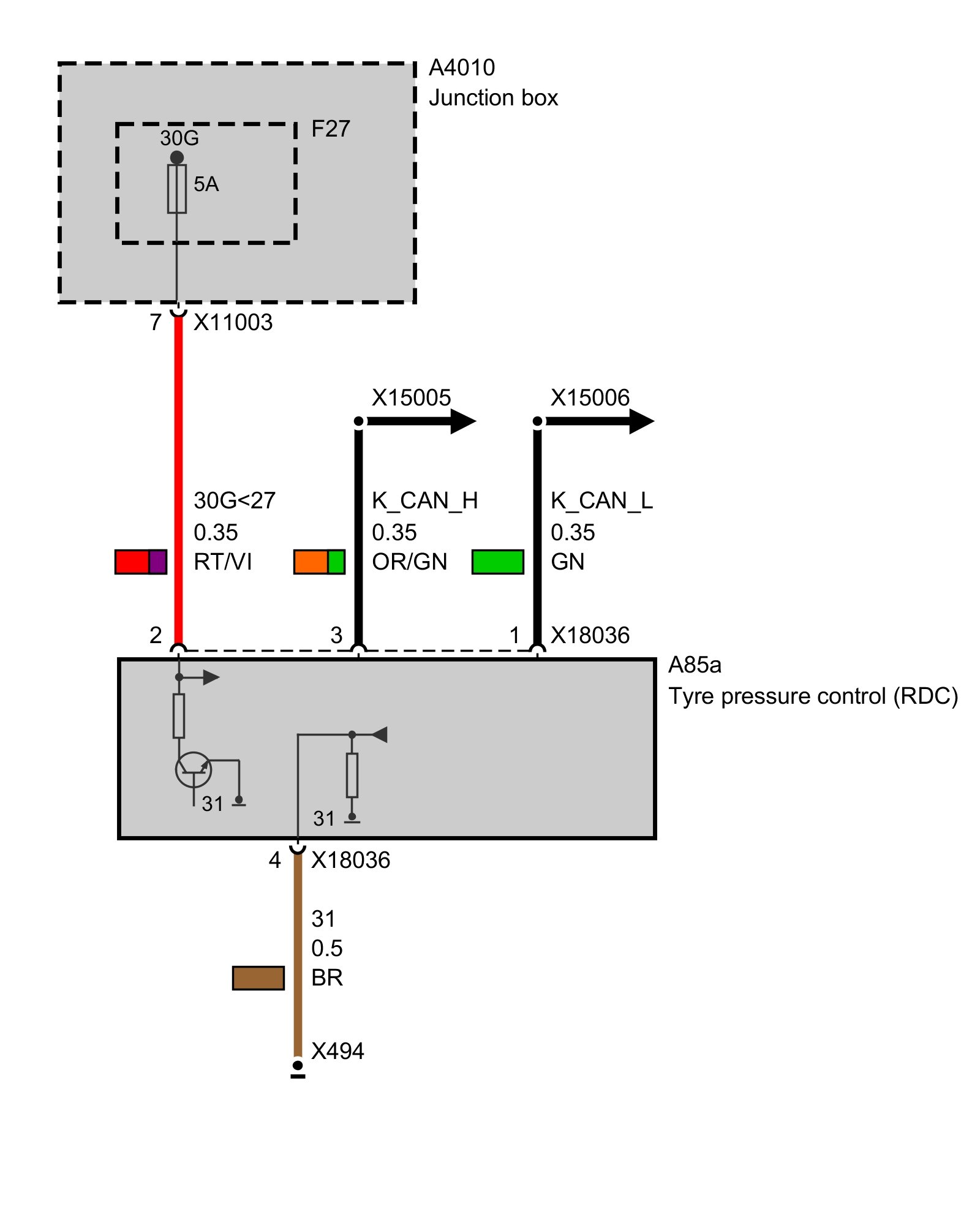

Power Supply, RDC Tire Pressure Control
Power Supply, RDC Tire Pressure Control
Tyre Pressure Control (RDC)
