Home
>>
BMW
>>
2008
>>
128i Convertible (E88) L6-3.0L (N52K)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Charging System
Charging System

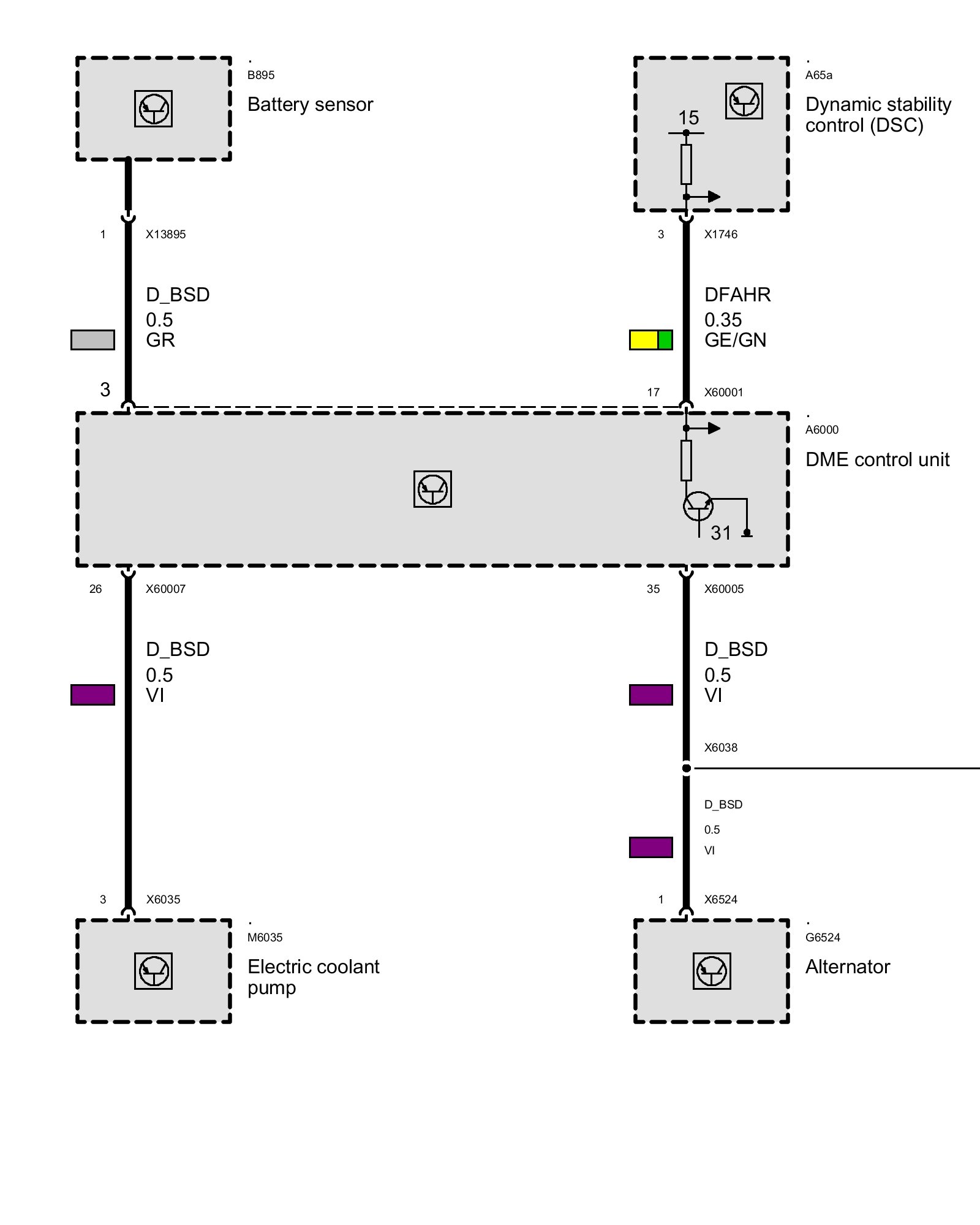

BSD Interface
