128i Convertible (E88) L6-3.0L (N52K)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connectors From X1
>>

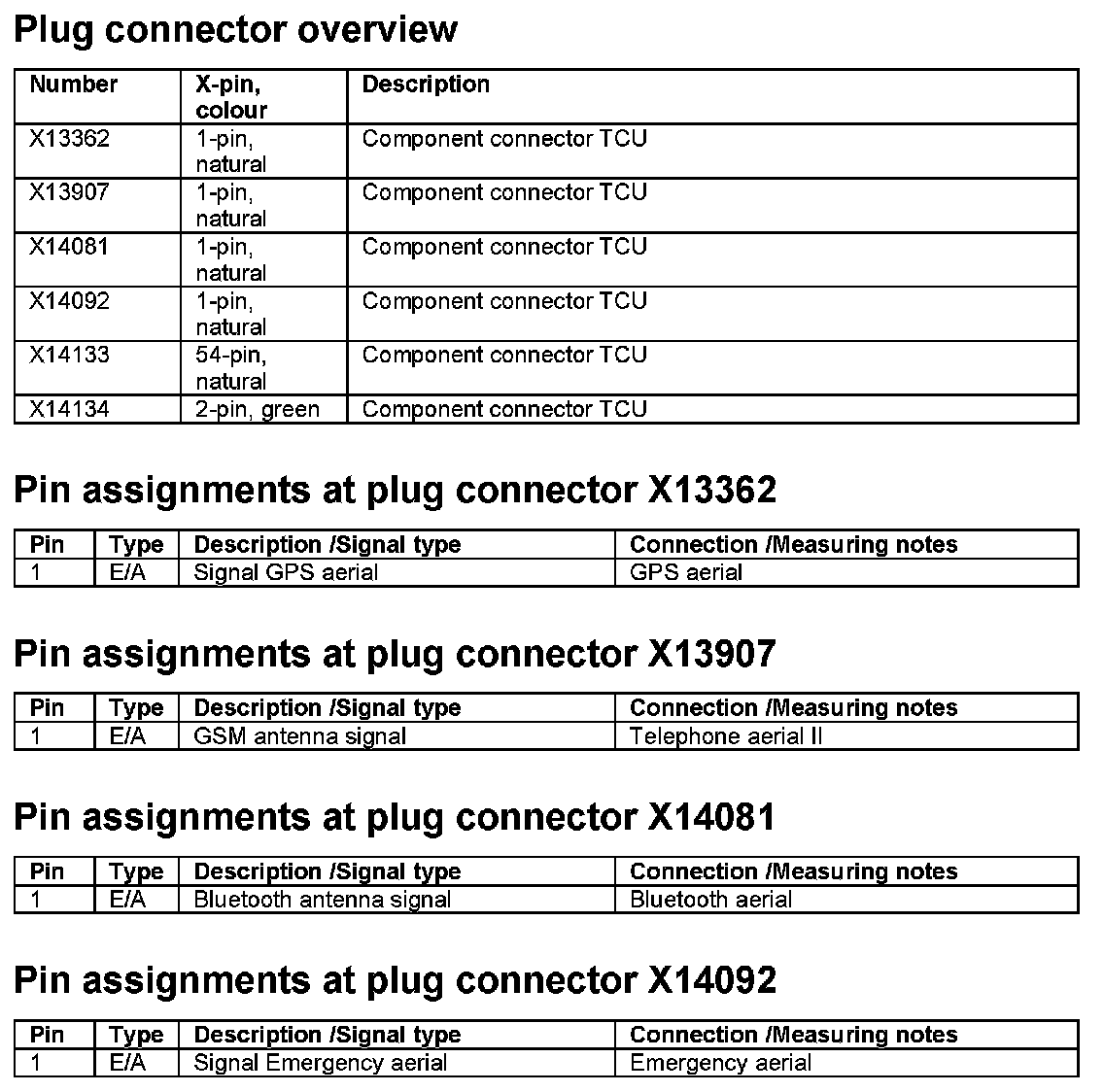

X14092
X14092

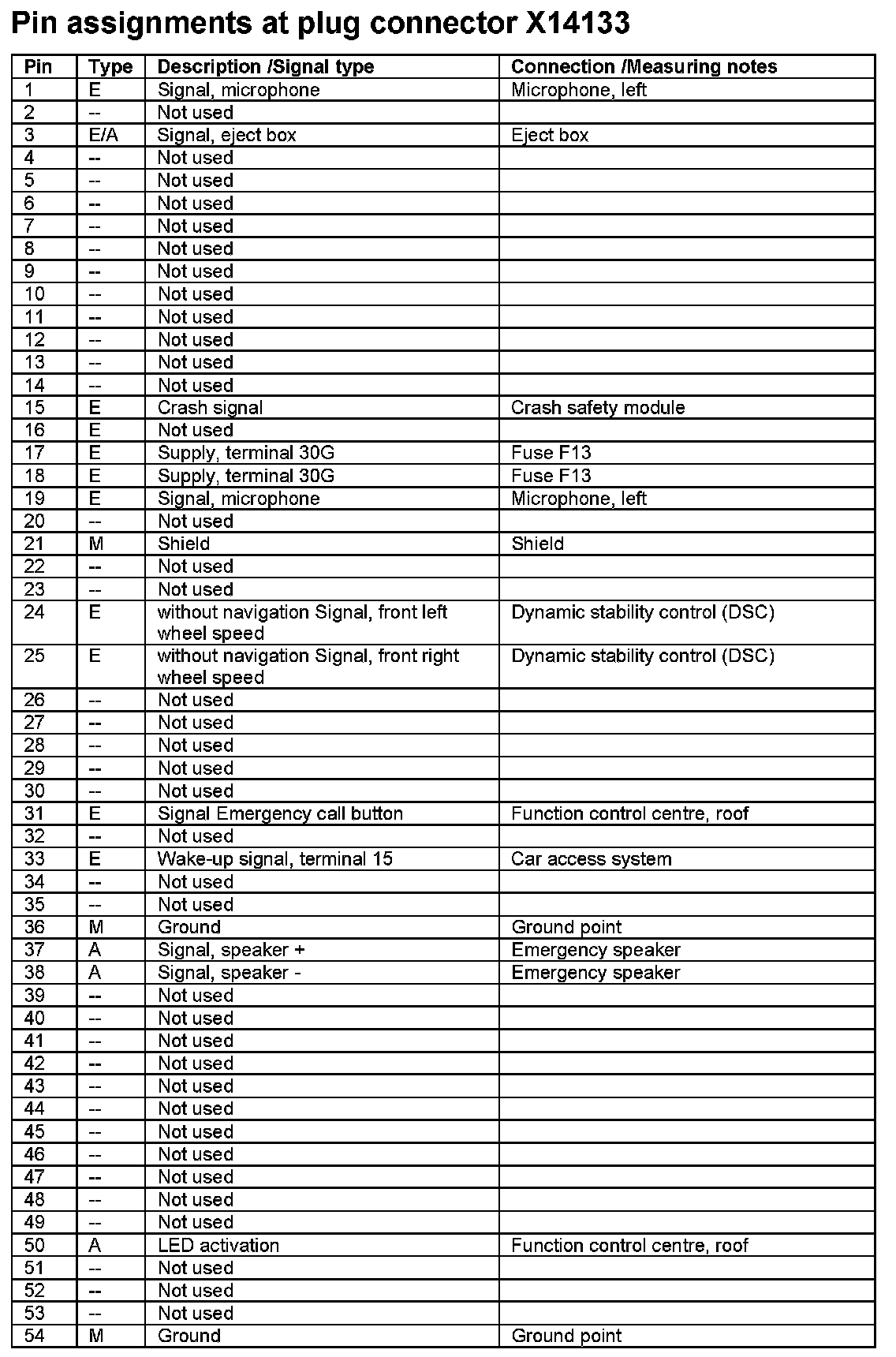

U400b TCU Pin Assignments
