BMW
>>
2008
>>
128i Convertible (E88) L6-3.0L (N51)
>>
Repair and Diagnosis
>>
Relays and Modules
>>
Relays and Modules - Body and Frame
>>
Convertible Top Control Module
>>
Diagrams
>>
Electrical Diagrams
>>

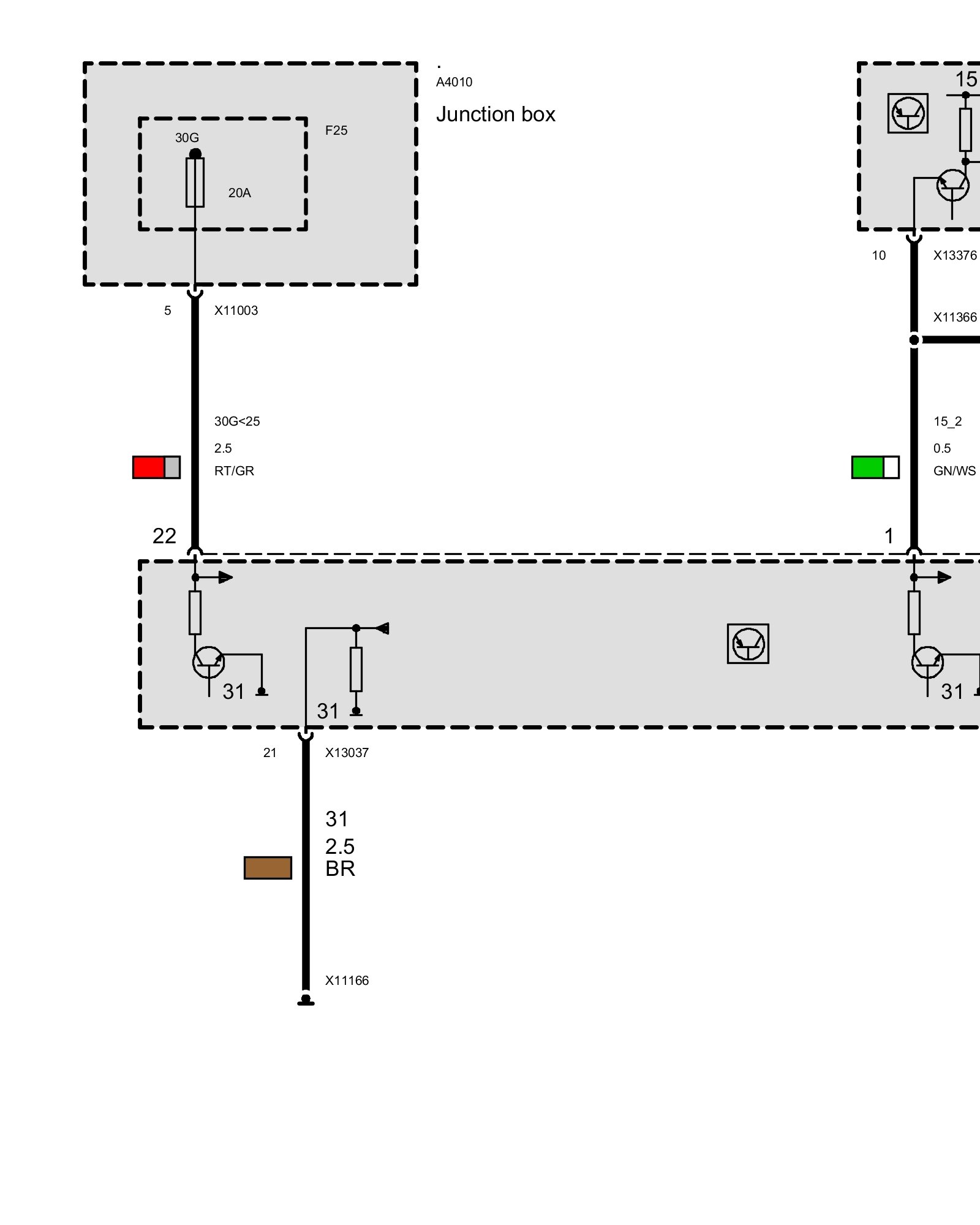

Power Supply, Convertible Top Module
Power Supply, Convertible Top Module
Power Supply, Convertible Top Module
