Antilock Brakes / Traction Control Systems
>>
System Diagram
>>

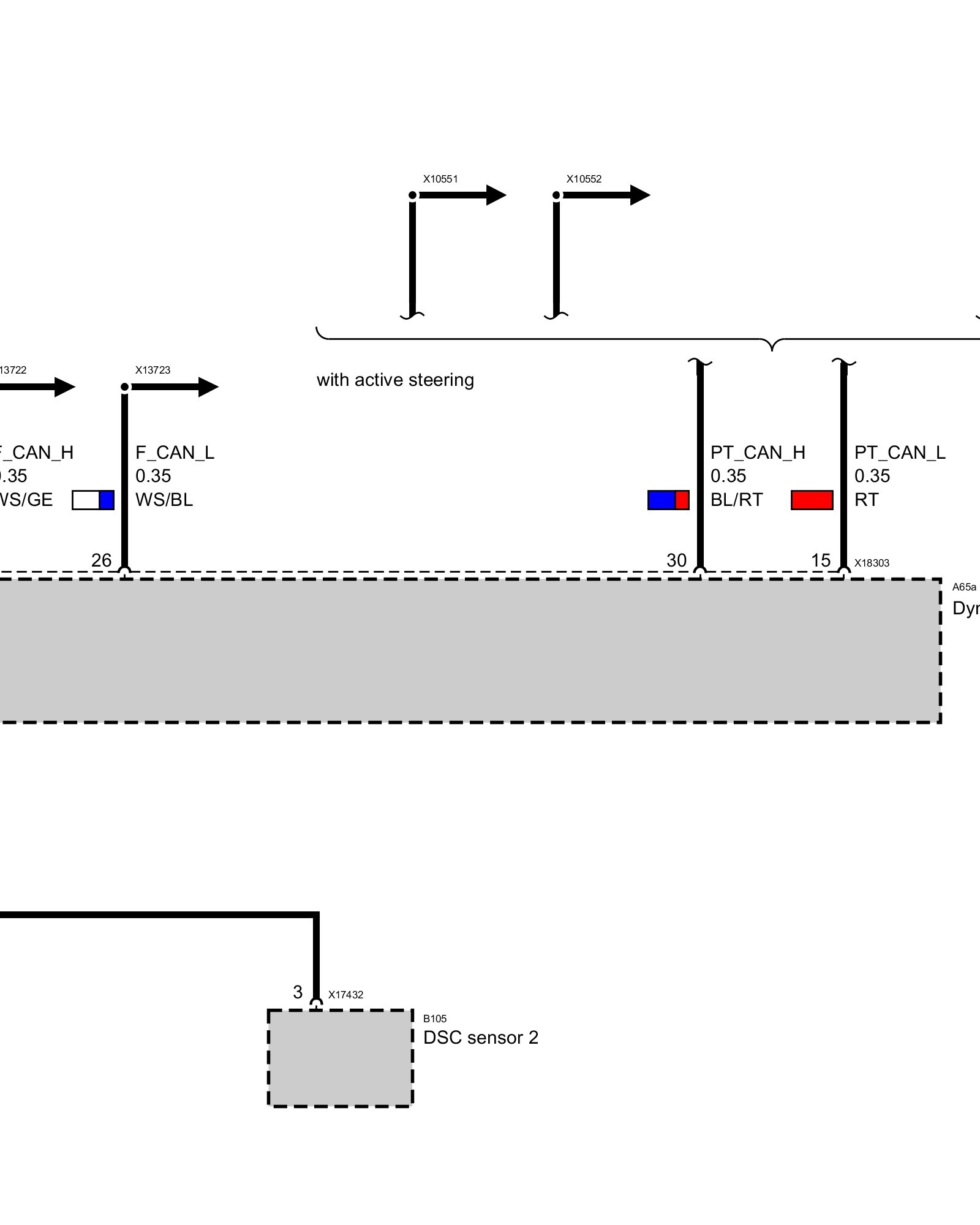

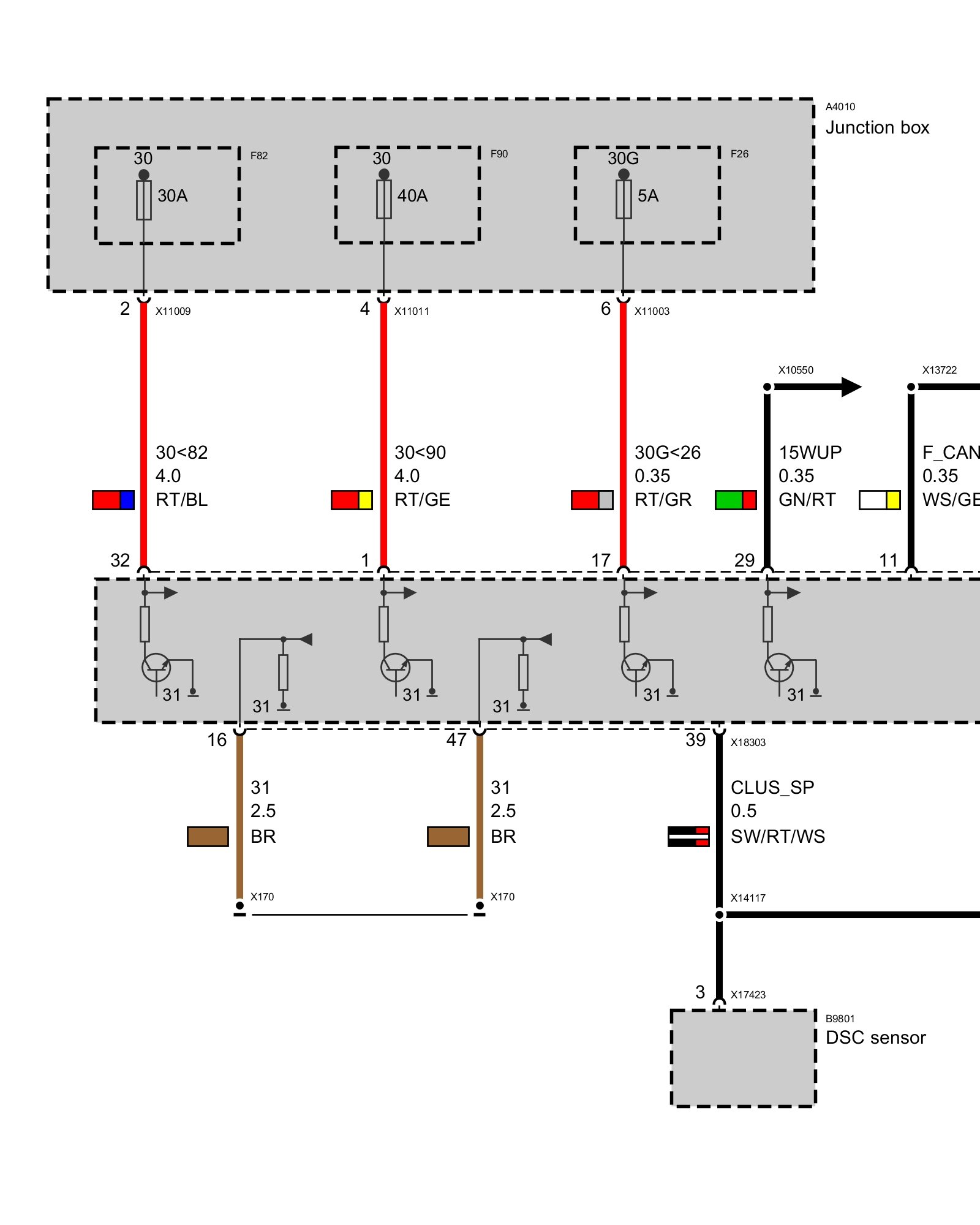

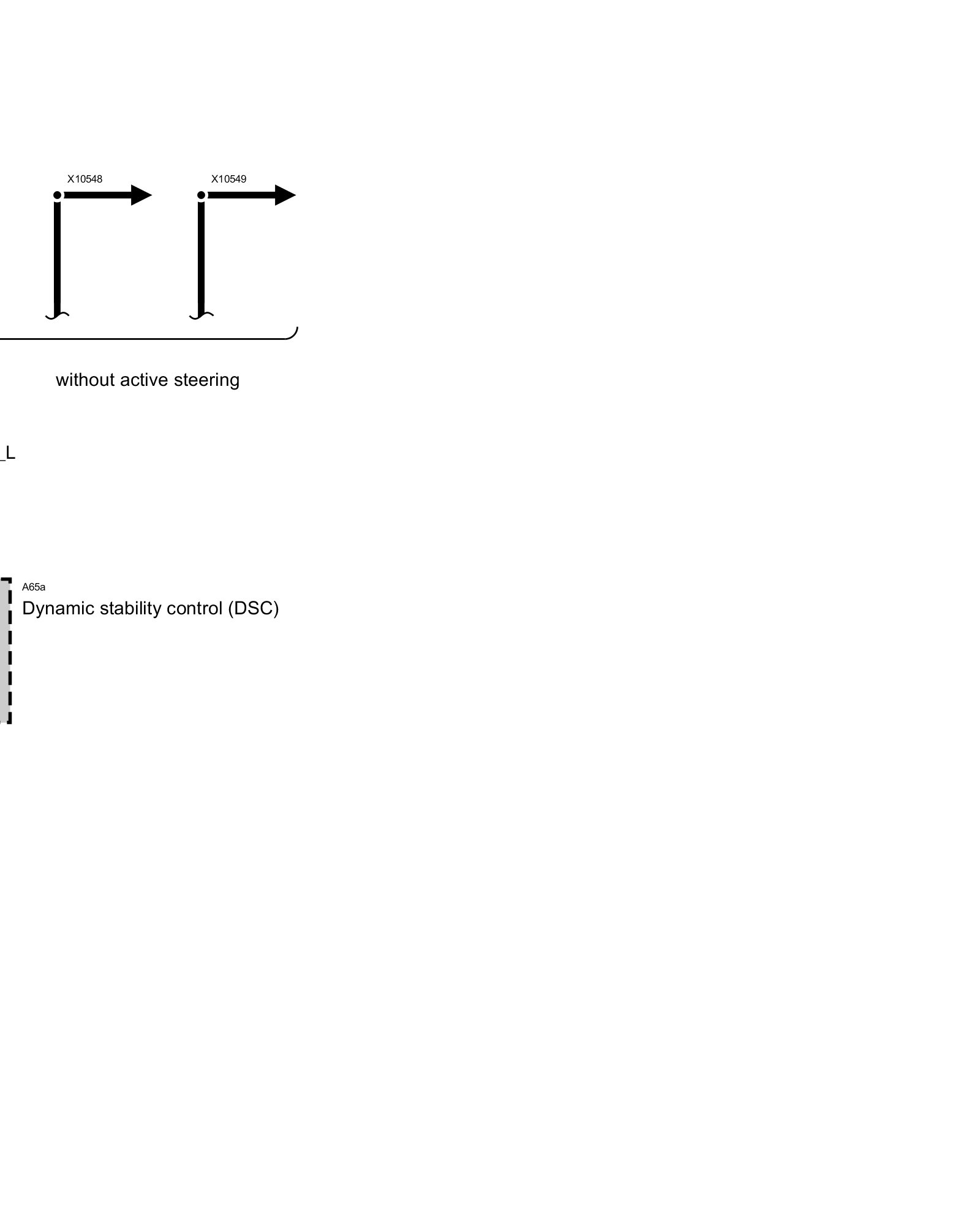

Power Supply, Dynamic Stability Control DSC
Power Supply, Dynamic Stability Control DSC
Power Supply, Dynamic Stability Control DSC
