Restraints and Safety Systems: Service and Repair

Removing And Installing/Replacing Pitch Sensor

Remove storage compartment at rear right.

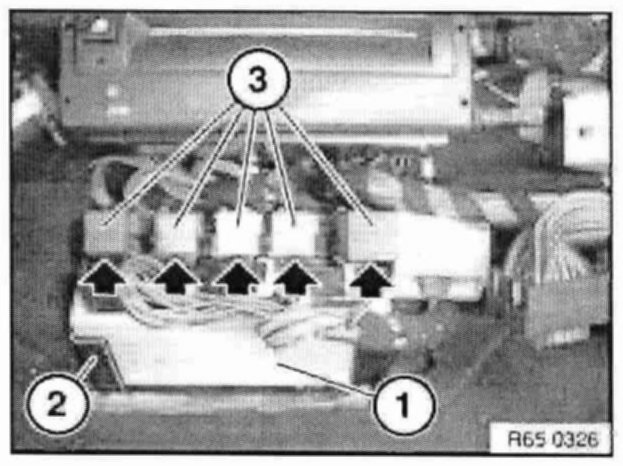

Withdraw general module (1) from holder (2).
Unlock relay receptacle (3) and detach towards top.

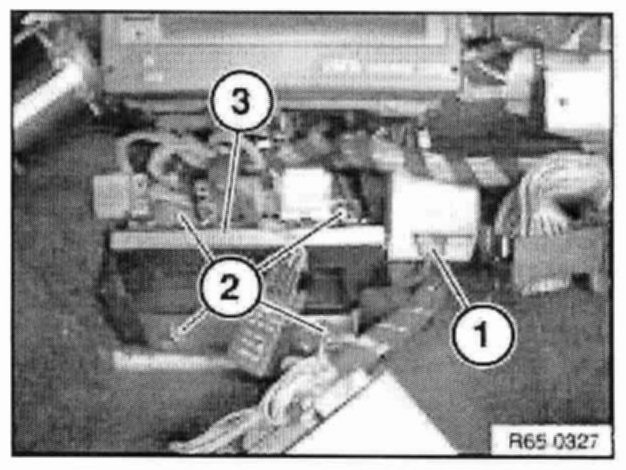

Disconnect plug connection (1).
Unscrew nuts (2).
Remove holder (3).

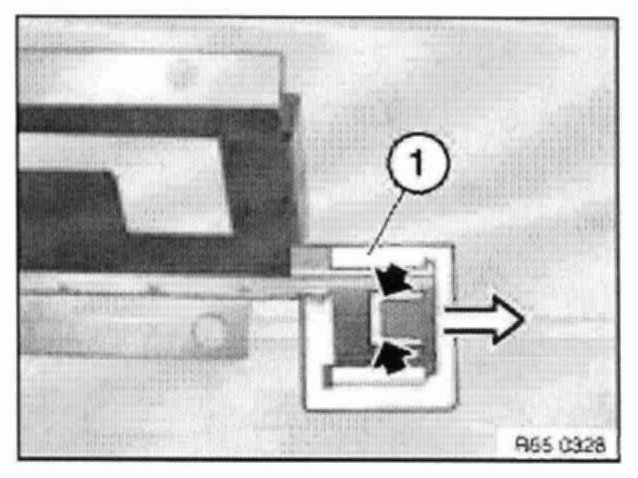

Unlock pitch sensor (1) and detach in direction of arrow.

Installation:
Allow pitch sensor (1) to snap audibly into place.
